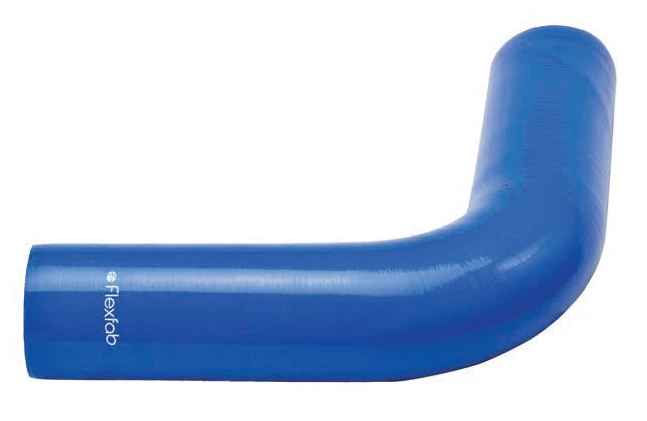

7884-300 By FlexFab | Series 7884 | 3-ply | 3.00″ ID | 3.32″ OD | Blue | 90° Elbow | Silicone | 7.50″ Leg Length

Original price was: $62.51.Current price is: $43.76.

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Construction:
Silicone hose with 3-plies of Meta-Aramid Reinforcement
Specifications:
Meets or exceeds the operating requirements of SAE J20 R1 Class A Meets or exceeds the operating requirements of TMC RP303B Class I Grade II Custom Wall Thickness is .140″/.190″ Temperature range is -65°F (-54°C) to +500°F (+260°C) Working pressure is 1/3 of the burst pressure
Applications:
For heavy duty pressure connections in hostile engine environments Resists hardening, cracking, cold leaks, aging, and many chemicals Ideal for extreme temperature and various pressure ranges where high performance levels are required For connection between the turbocharger and the engine Resists chemicals, steam, ozone, coolants, and aging conditions normally found in the engine environment

Part Number	Inside Diameter	Outside Diameter	Leg Length – Inches(Avail. Clamp Space)	Bend Radius Inches	Burst Pressure		Weight lbs	Clamp
Part Number	Inside Diameter	Outside Diameter	Leg Length – Inches(Avail. Clamp Space)	Bend Radius Inches	SAE J20 R1	TMC	Weight lbs	Clamp
7884 Series: 90° Silicone Elbows
7884-075	0.75″	1.07″	6.00	1.50″	325	125	0.50 lbs	FLX2582-0012
7884-100	1.00″	1.32″	6.00	2.00″	300	125	0.50 lbs	FLX2582-0016
7884-125	1.25″	1.57″	6.00	2.50″	275	125	0.50 lbs	FLX2582-0020 or FLX2584-0212
7884-150	1.50″	1.82″	6.00	3.00″	250	125	0.50 lbs	FLX2582-0024 or FLX2584-0212
7884-175	1.75″	2.07″	6.00	3.50″	225	125	0.50 lbs	FLX2582-0028 or FLX2584-0262
7884-200	2.00″	2.32″	6.00	4.00″	200	100	0.50 lbs	FLX2582-0032 or FLX2584-0262
7884-225	2.25″	2.57″	6.00	3.38″	175	100	1.00 lbs	FLX2582-0036 or FLX2582-0312
7884-250	2.50″	2.82″	6.50	3.75″	150	100	1.00 lbs	FLX2582-0040 or FLX2582-0312
7884-275	2.75″	3.07″	7.00	4.13″	125	100	1.00 lbs	FLX2582-0044 or FLX2582-0362
7884-300	3.00″	3.32″	7.50	4.50″	100	100	1.00 lbs	FLX2582-0048 or FLX2582-0362
7884-350	3.50″	3.82″	8.50	5.25″	75	100	1.50 lbs	FLX2582-0056 or FLX2582-0412
7884-400	4.00″	4.32″	9.50	6.00″	50	100	1.50 lbs	FLX2582-0064 or FLX2582-0462
7884-500	5.00″	5.32″	13.50	7.50″	N/A	N/A	1.50 lbs	FLX2584-0562
7896 Series: 45° Silicone Elbows
7896-075	0.75″	1.07″	6.00	4.00″	325	125	0.50 lbs	FLX2582-0012
7896-100	1.00″	1.32″	6.00	4.00″	300	125	0.50 lbs	FLX2582-0016
7896-125	1.25″	1.57″	6.00	4.00″	275	125	0.50 lbs	FLX2582-0020 or FLX2584-0212
7896-150	1.50″	1.82″	6.00	4.00″	250	125	0.50 lbs	FLX2582-0024 or FLX2584-0212
7896-175	1.75″	2.07″	6.00	4.00″	225	125	0.50 lbs	FLX2582-0028 or FLX2584-0262
7896-200	2.00″	2.32″	6.00	4.00″	200	100	0.50 lbs	FLX2582-0032 or FLX2584-0262
7896-225	2.25″	2.57″	6.00	4.00″	175	100	1.00 lbs	FLX2582-0036 or FLX2582-0312
7896-250	2.50″	2.82″	6.50	4.00″	150	100	1.00 lbs	FLX2582-0040 or FLX2582-0312
7896-275	2.75″	3.07″	7.00	4.00″	125	100	1.00 lbs	FLX2582-0044 or FLX2582-0362
7896-300	3.00″	3.32″	7.50	4.00″	100	100	1.50 lbs	FLX2582-0048 or FLX2582-0362
7896-350	3.50″	3.82″	8.50	4.00″	75	100	2.00 lbs	FLX2582-0056 or FLX2582-0412
7896-400	4.00″	4.32″	9.50	4.00″	50	100	2.50 lbs	FLX2582-0064 or FLX2582-0462
