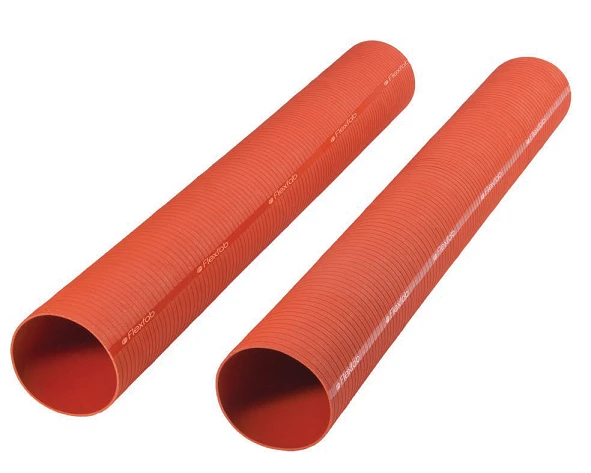

7701-275 By FlexFab | Series 7701 | 3-ply Fiberglass Reinforced Turbo Sleeve | 2.75" ID | 2.94" OD | 3ft Length

7701-275 By FlexFab | Series 7701 | 3-ply Fiberglass Reinforced Turbo Sleeve | 2.75″ ID | 2.94″ OD | 3ft Length

Original price was: $71.85.Current price is: $50.30.

SKU: AG9ZZ 1481977888804 Categories: , Tags: , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Overview:
  • Comes in 3′ lengths
  • 12′ Lengths Also Available
Construction:
  • 3-Ply Silicone Coated Fiberglass Fabric Reinforcement
Specifications:
  • Temperature range is -65Ā°F (-54Ā°C) to +500Ā°F (+260Ā°C)
  • Wall thickness is .080″/.110″
Applications:
  • For connection between the turbocharger and the engine (where no vibration is present)
  • Resists chemicals, steam, ozone, coolants, and aging conditions normally found in the engine environment
Part Number (3ft & 12ft) Inside Diameter Outside Diameter Burst Pressure Maximum OperatingPressure – (PSI) Weight Clamp
7701-075 & 7701-075X12 0.75″ 0.94″ 135 PSI 45 PSI 0.450 lbs./ft FLX2582-0010
7701-087 & 701-087X12 0.88″ 1.07″ 135 PSI 45 PSI 0.475 lbs./ft FLX2582-0010
7701-100 & N/A 1.00″ 1.19″ 135 PSI 45 PSI 0.500 lbs./ft FLX2582-0012
7701-112 & 7701-112X12 1.12″ 1.31″ 120 PSI 40 PSI 0.525 lbs./ft FLX2582-0016
7701-125 & N/A 1.25″ 1.44″ 120 PSI 40 PSI 0.550 lbs./ft FLX2583-0138 or FLX2584-0175
7701-138 & N/A 1.38″ 1.57″ 120 PSI 40 PSI 0.575 lbs./ft FLX2583-0138 or FLX2584-0175
7701-150 & 7701-150X12 1.50″ 1.69″ 120 PSI 40 PSI 0.600 lbs./ft FLX2583-0150 or FLX2584-0212
7701-162 & 7701-162X12 1.63″ 1.82″ 105 PSI 35 PSI 0.625 lbs./ft FLX2583-0162 or FLX2584-0212
7701-175 & 7701-175X12 1.75″ 1.94″ 105 PSI 35 PSI 0.650 lbs./ft FLX2583-0175 or FLX2584-0212
7701-187 & N/A 1.88″ 2.07″ 105 PSI 35 PSI 0.675 lbs./ft FLX2583-0187 or FLX2584-0212
7701-200 & N/A 2.00″ 2.19″ 105 PSI 35 PSI 0.700 lbs./ft FLX2583-0200 or FLX2584-0262
7701-212 & N/A 2.13″ 2.32″ 90 PSI 30 PSI 0.725 lbs./ft FLX2583-0212 or FLX2584-0262
7701-225 & N/A 2.25″ 2.44″ 90 PSI 30 PSI 0.750 lbs./ft FLX2583-0225 or FLX2584-0262
7701-238 & N/A 2.38″ 2.57″ 90 PSI 30 PSI 0.775 lbs./ft FLX2583-0238 or FLX2584-0312
7701-250 & 7701-250X12 2.50″ 2.69″ 90 PSI 30 PSI 0.800 lbs./ft FLX2583-0250 or FLX2584-0312
7701-262 & 7701-262X12 2.63″ 2.82″ 75 PSI 25 PSI 0.825 lbs./ft FLX2583-0262 or FLX2584-0312
7701-275 & 7701-275X12 2.75″ 2.94″ 75 PSI 25 PSI 0.850 lbs./ft FLX2583-0275 or FLX2584-0312
7701-287 & 7701-287X12 2.88″ 3.07″ 75 PSI 25 PSI 0.875 lbs./ft FLX2583-0287 or FLX2584-0362
7701-300 & 7701-300X12 3.00″ 3.19″ 75 PSI 25 PSI 0.900 lbs./ft FLX2583-0300 or FLX2584-0362
7701-312 & 7701-312X12 3.13″ 3.32″ 60 PSI 20 PSI 0.925 lbs./ft FLX2583-0312 or FLX2584-0362
7701-325 & 7701-325X12 3.25″ 3.44″ 60 PSI 20 PSI 0.950 lbs./ft FLX2583-0325 or FLX2584-0362
7701-338 & 7701-338X12 3.38″ 3.57″ 60 PSI 20 PSI 0.975 lbs./ft FLX2583-0338 or FLX2584-0412
7701-350 & 7701-350X12 3.50″ 3.69″ 60 PSI 20 PSI 1.000 lbs./ft FLX2583-0350 or FLX2584-0412
7701-375 & 7701-375X12 3.75″ 3.94″ 45 PSI 15 PSI 1.050 lbs./ft FLX2583-0375 or FLX2584-0412
7701-400 & 7701-400X12 4.00″ 4.19″ 45 PSI 15 PSI 1.100 lbs./ft FLX2583-0400 or FLX2584-0462
7701-425 & 7701-425X12 4.25″ 4.44″ 30 PSI 10 PSI 1.150 lbs./ft FLX2583-0425 or FLX2584-0462
7701-450 & 7701-450X12 4.50″ 4.69″ 30 PSI 10 PSI 1.175 lbs./ft FLX2583-0450 or FLX2584-0512
7701-500 & 7701-500X12 5.00″ 5.19″ 30 PSI 10 PSI 1.200 lbs./ft FLX2583-0500 or FLX2584-0562
7701-600 & 7701-600X12 6.00″ 6.19″ 30 PSI 10 PSI 1.300 lbs./ft FLX2584-0662

*Specifications for reference only. Specific test data available on request.
