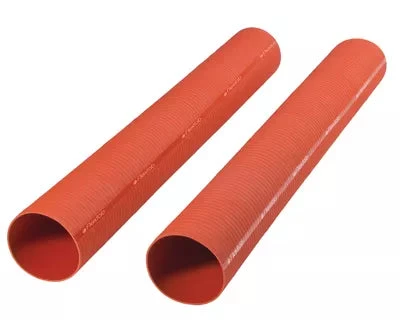

7701-112X12 By FlexFab | Series 7701 | 3-ply Fiberglass Reinforced Turbo Sleeve | 1.12″ X 1.31″ OD | 12ft Length

Original price was: $178.85.Current price is: $98.99.

SKU: AG9ZZ 8527267397797 Category: Bulk Hose & Covers Tags: Collection-lvl1_All Hose, Collection-lvl2_Specialty Hose, Collection-lvl3_Performance Silicone Hose, Created in 2024, Matrixify2nd50kProducts

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Overview:
Comes in 3′ lengths 12′ Lengths Also Available
Construction:
3-Ply Silicone Coated Fiberglass Fabric Reinforcement
Specifications:
Temperature range is -65°F (-54°C) to +500°F (+260°C) Wall thickness is .080″/.110″
Applications:
For connection between the turbocharger and the engine (where no vibration is present) Resists chemicals, steam, ozone, coolants, and aging conditions normally found in the engine environment

Part Number (3ft & 12ft)	Inside Diameter	Outside Diameter	Burst Pressure	Maximum OperatingPressure – (PSI)	Weight	Clamp
7701-075 & 7701-075X12	0.75″	0.94″	135 PSI	45 PSI	0.450 lbs./ft	FLX2582-0010
7701-087 & 701-087X12	0.88″	1.07″	135 PSI	45 PSI	0.475 lbs./ft	FLX2582-0010
7701-100 & N/A	1.00″	1.19″	135 PSI	45 PSI	0.500 lbs./ft	FLX2582-0012
7701-112 & 7701-112X12	1.12″	1.31″	120 PSI	40 PSI	0.525 lbs./ft	FLX2582-0016
7701-125 & N/A	1.25″	1.44″	120 PSI	40 PSI	0.550 lbs./ft	FLX2583-0138 or FLX2584-0175
7701-138 & N/A	1.38″	1.57″	120 PSI	40 PSI	0.575 lbs./ft	FLX2583-0138 or FLX2584-0175
7701-150 & 7701-150X12	1.50″	1.69″	120 PSI	40 PSI	0.600 lbs./ft	FLX2583-0150 or FLX2584-0212
7701-162 & 7701-162X12	1.63″	1.82″	105 PSI	35 PSI	0.625 lbs./ft	FLX2583-0162 or FLX2584-0212
7701-175 & 7701-175X12	1.75″	1.94″	105 PSI	35 PSI	0.650 lbs./ft	FLX2583-0175 or FLX2584-0212
7701-187 & N/A	1.88″	2.07″	105 PSI	35 PSI	0.675 lbs./ft	FLX2583-0187 or FLX2584-0212
7701-200 & N/A	2.00″	2.19″	105 PSI	35 PSI	0.700 lbs./ft	FLX2583-0200 or FLX2584-0262
7701-212 & N/A	2.13″	2.32″	90 PSI	30 PSI	0.725 lbs./ft	FLX2583-0212 or FLX2584-0262
7701-225 & N/A	2.25″	2.44″	90 PSI	30 PSI	0.750 lbs./ft	FLX2583-0225 or FLX2584-0262
7701-238 & N/A	2.38″	2.57″	90 PSI	30 PSI	0.775 lbs./ft	FLX2583-0238 or FLX2584-0312
7701-250 & 7701-250X12	2.50″	2.69″	90 PSI	30 PSI	0.800 lbs./ft	FLX2583-0250 or FLX2584-0312
7701-262 & 7701-262X12	2.63″	2.82″	75 PSI	25 PSI	0.825 lbs./ft	FLX2583-0262 or FLX2584-0312
7701-275 & 7701-275X12	2.75″	2.94″	75 PSI	25 PSI	0.850 lbs./ft	FLX2583-0275 or FLX2584-0312
7701-287 & 7701-287X12	2.88″	3.07″	75 PSI	25 PSI	0.875 lbs./ft	FLX2583-0287 or FLX2584-0362
7701-300 & 7701-300X12	3.00″	3.19″	75 PSI	25 PSI	0.900 lbs./ft	FLX2583-0300 or FLX2584-0362
7701-312 & 7701-312X12	3.13″	3.32″	60 PSI	20 PSI	0.925 lbs./ft	FLX2583-0312 or FLX2584-0362
7701-325 & 7701-325X12	3.25″	3.44″	60 PSI	20 PSI	0.950 lbs./ft	FLX2583-0325 or FLX2584-0362
7701-338 & 7701-338X12	3.38″	3.57″	60 PSI	20 PSI	0.975 lbs./ft	FLX2583-0338 or FLX2584-0412
7701-350 & 7701-350X12	3.50″	3.69″	60 PSI	20 PSI	1.000 lbs./ft	FLX2583-0350 or FLX2584-0412
7701-375 & 7701-375X12	3.75″	3.94″	45 PSI	15 PSI	1.050 lbs./ft	FLX2583-0375 or FLX2584-0412
7701-400 & 7701-400X12	4.00″	4.19″	45 PSI	15 PSI	1.100 lbs./ft	FLX2583-0400 or FLX2584-0462
7701-425 & 7701-425X12	4.25″	4.44″	30 PSI	10 PSI	1.150 lbs./ft	FLX2583-0425 or FLX2584-0462
7701-450 & 7701-450X12	4.50″	4.69″	30 PSI	10 PSI	1.175 lbs./ft	FLX2583-0450 or FLX2584-0512
7701-500 & 7701-500X12	5.00″	5.19″	30 PSI	10 PSI	1.200 lbs./ft	FLX2583-0500 or FLX2584-0562
7701-600 & 7701-600X12	6.00″	6.19″	30 PSI	10 PSI	1.300 lbs./ft	FLX2584-0662
