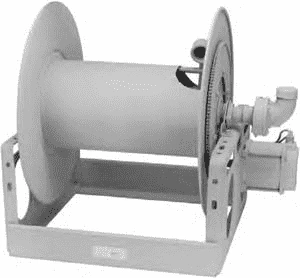

7528-19-21 By Hannay | 7500 Series | Manual Bevel Gear Crank Rewind Reel

7528-19-21 By Hannay | 7500 Series | Manual Bevel Gear Crank Rewind Reel

Original price was: $367.00.Current price is: $99.99.

SKU: AG9ZZ 1476872241188 Categories: , Tags: , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Applications:
  • Fuel Dispensing
  • Bulk Transfer
  • Suction/Discharge
Features:
  • Heavy-duty reel designed for longer lengths.
  • Crank rewind reels supplied with pinion brake.
  • Standard inlet 90 deg. ball bearing swivel joint 1-1/2″ female NPT threads and 2″ victaulic groove.
  • Standard outlet flanged riser 1-1/2″ female NPT threads.
  • Standard inlet, outlet riser and hub assembly are steel.
  • Operate at pressures to 600 psi (41 bar).
  • Temperatures from -60 deg. F to +175 deg. F (-51 deg. C to +79 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 1″ 1-1/4″ 1-1/2″ 7528-19-21 By Hannay | 7500 Series | Manual Bevel Gear Crank Rewind Reel -Hose Ware House
O.D. (in) 1-9/16″ 1-13/16″ 2-1/16″ A B D E F Crank F Power G H X Y
7528-19-21 85′ lengths 70′ lengths 50′ lengths 104 lbs. 25.5″ 20″ 20.5″ 18.75″ 32″ 33″ 21.5″ 12.12″ 17.5″ 16.75″
7538-23-24 200′ lengths 190′ lengths 100′ lengths 130 lbs. 35″ 29.5″ 20.5″ 22.75″ 41.5″ 42.5″ 23.5″ 12.12″ 27″ 16.75″
7520-25-26 115′ lengths 75′ lengths 50′ lengths 106 lbs. 17″ 11.5″ 25.5″ 24.75″ 23.5″ 24.5″ 27.88″ 15.5″ 9″ 21.75″
7528-25-26 200′ lengths 135′ lengths 100′ lengths 123 lbs. 25.5″ 20″ 25.5″ 24.75″ 32″ 33″ 27.88″ 15.5″ 17.5″ 21.75″
7522-30-31 190′ lengths 160′ lengths 100′ lengths 118 lbs. 19″ 13.5″ 25.5″ 28.75″ 25.5″ 26.5″ 29.88″ 15.5″ 11″ 21.75″
7528-30-31† 285′ lengths 260′ lengths 160′ lengths 131 lbs. 25.5″ 20″ 25.5″ 28.75″ 32″ 33″ 29.88″ 15.5″ 17.5″ 21.75″
7526-33-34† 335′ lengths 200′ lengths 200′ lengths 133 lbs. 22.5″ 17.5″ 31.5″ 31.75″ 29.25″ 30.25″ 33.62″ 17.75″ 15″ 27.75″

† Some applications require a clutch/reduction unit.
