Sale!

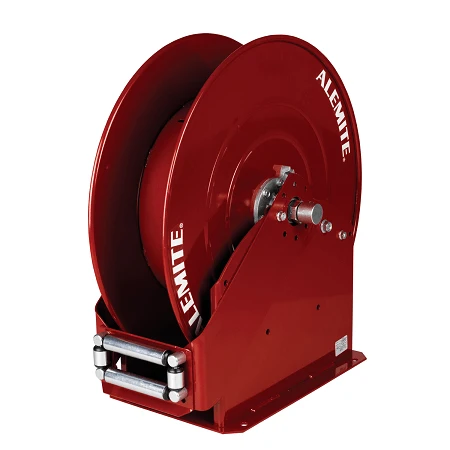

7341 By Alemite | High Capacity Reel | Oil/Air/Water | Bare Reel | Reel Inlet: 1/2" Female NPTF | Delivery Hose Outlet: 1/2" Female NPSM Swivel | Max Pressure: 1500 PSI

7341 By Alemite | High Capacity Reel | Oil/Air/Water | Bare Reel | Reel Inlet: 1/2″ Female NPTF | Delivery Hose Outlet: 1/2″ Female NPSM Swivel | Max Pressure: 1500 PSI

Original price was: $326.00.Current price is: $98.99.

SKU: AG9ZZ 8457959047333 Category: Tags: , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Applications,
  • Alemite High Capacity Reels offer high volume delivery in the most extreme outdoor conditions. The high capacity flow
    passage reduces fill rate time, improving efficiency and helping reduce cost.
Features,
  • Superior Performance – Swivel and reel ball bearings reduce
    torque load on power spring for smooth retraction every time.
  • Anti-Lockout Design – Ratchet prevents lockup when hose is fully
    extended, eliminating the need to manually release the pawl at the
    reel.
  • Corrosion Resistant – Sealed bearings prevent contamination
    and minimize maintenance, a critical performance factor in dirty
    environments. Sealed rollers eliminate contamination which can
    bind hose guide rollers.
  • Easy Installation and Maintenance – Factory lubricated one piece
    power spring cassette makes installation and maintenance safe
    and easy. Outlet port swivel nut makes installing delivery hose
    quick and easy.
  • Strong and Stable – Double arm design provides extra support
    for a larger hose during use. Four corner bolt hole pattern on
    outside of base provides extra stability.
  • Compatibility – Grease, air, water, fuel
  • INCLUDED ITEMS,
  • Hose Reel, Delivery Hose and Hose Stop

Part Number Bare
Reel		 Max
Pressure		 Delivery Hose
Specification		 Reel Inlet Delivery Hose Outlet Weight
8080-B 7341 1,500 PSI 1/2″ x 80′ (317813-80) 1/2″ NPTF(f) 1/2″ NPTF(m) 146 Lb.
8080-H 7341 1,500 PSI 1/2″ x 100′ (317813-100) 1/2″ NPTF(f) 1/2″ NPTF(m) 150 Lb.
7341 7341 1,500 PSI NA 1/2″ NPTF(f) 1/2″ NPTF(m) 124 Lb.
