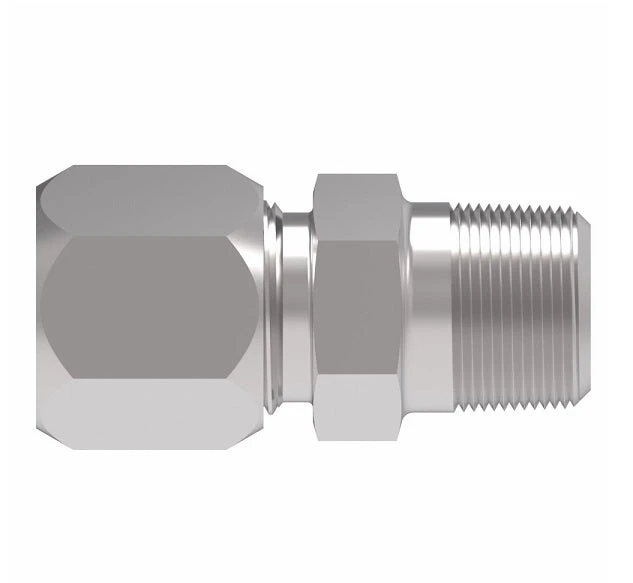

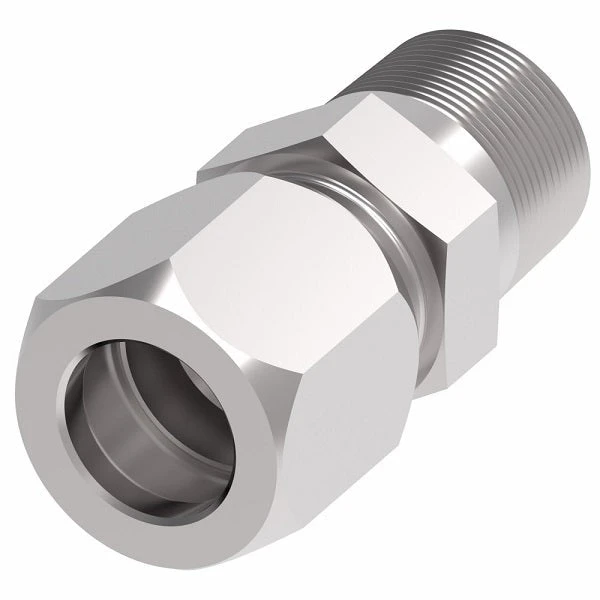

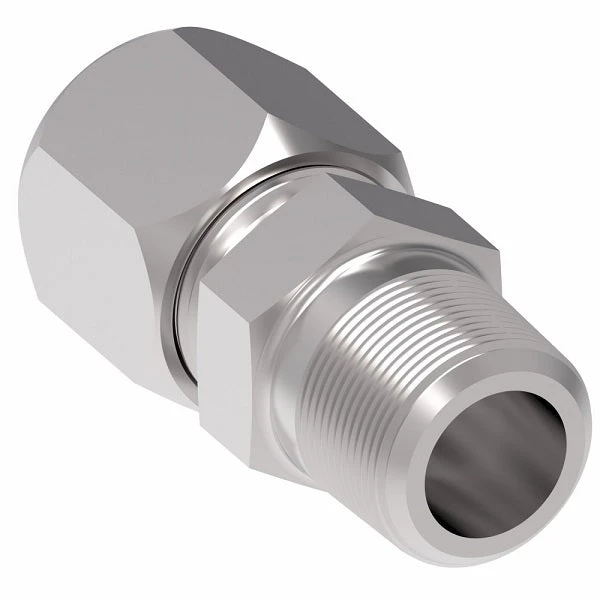

7205X4X6 Ermeto By Danfoss | 7000 Series | Male Connector | 1/4" Male NPTF X 3/8" Tube OD | Steel

7205X4X6 Ermeto By Danfoss | 7000 Series | Male Connector | 1/4" Male NPTF X 3/8" Tube OD | Steel - Image 2

7205X4X6 Ermeto By Danfoss | 7000 Series | Male Connector | 1/4" Male NPTF X 3/8" Tube OD | Steel - Image 3

7205X4X6 Ermeto By Danfoss | 7000 Series | Male Connector | 1/4″ Male NPTF X 3/8″ Tube OD | Steel

Original price was: $12.00.Current price is: $8.40.

SKU: AG9ZZ 8200163164325 Categories: Fittings & Clamps, Tube Fittings Tags: Collection-lvl1_All Hose Ends, Collection-lvl2_Ends for Hydraulic Hose, Collection-lvl2_Ends for Special Hose Types, Collection-lvl3_Tube Fittings, Created in 2023, Matrixify3rd50kProducts, Tube Fittings

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Specifications:
Ref. SAE No. 080102 Specifically designed to meet all ASME and SAE approved standards for hydraulic flareless tube Fittings.
Applications:
Hydraulic Systems. Instrumentation and Chemical Processing Systems. Highly recommended for High Pressure Applications.
Features:
An excellent high pressure Fitting – NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles. Danfoss Ermeto Fittings have a zinc trivalent finish, which fully resists the effects of nonflammable hydraulic fluids. Excellent vibration resistance. Operating pressure up to 10,000 psi depending on tube and Fitting size.
Temperature Range:
-65°F to +400°F (-53°C to +204°C) at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size.
Additional Information:
Danfoss Ermeto 7000 Series Information.PDF


Steel Part Number	Steel Body Only Part Number	Tube O.D.	Male Pipe Thread	Hex C	D1 D	Opt.	L
7205X2	B7205X2	1/8″	1/8″	7/16″	0.093″	0.188″	1.04″
7205X2X4	B7205X2X4	1/8″	1/4″	9/16″	0.093″	0.281″	1.25″
7205X3	B7205X3	3/16″	1/8″	7/16″	0.125″	0.188″	1.09″
7205X4	B7205X4	1/4″	1/8″	1/2″	0.203″	0.188″	1.12″
7205X4X4	B7205X4X4	1/4″	1/4″	9/16″	0.203″	0.281″	1.32″
7205X4X6	B7205X4X6	1/4″	3/8″	3/4″	0.203″	0.406″	1.33″
7205X4X8	B7205X4X8	1/4″	1/2″	7/8″	0.203″	0.531″	1.58″
7205X5	B7205X5	5/16″	1/8″	9/16″	0.234″	0.188″	1.12″
7205X5X4	B7205X5X4	5/16″	1/4″	9/16″	0.234″	0.281″	1.32″
7205X6	B7205X6	3/8″	1/4″	5/8″	0.281″	0.281″	1.34″
7205X6X2	B7205X6X2	3/8″	1/8″	5/8″	0.281″	0.188″	1.15″
7205X6X6	B7205X6X6	3/8″	3/8″	3/4″	0.281″	0.406″	1.35″
7205X6X8	B7205X6X8	3/8″	1/2″	7/8″	0.281″	0.531″	1.60″
7205X8	B7205X8	1/2″	3/8″	13/16″	0.422″	0.406″	1.44″
7205X8X4	B7205X8X4	1/2″	1/4″	13/16″	0.422″	0.281″	1.44″
7205X8X8	–	1/2″	1/2″	7/8″	0.422″	0.531″	1.69″
7205X8X12	B7205X8X12	1/2″	3/4″	1-1/8″	0.422″	0.719″	1.76″
7205X10	B7205X10	5/8″	1/2″	15/16″	0.500″	0.531″	1.75″
7205X10X6	B7205X10X6	5/8″	3/8″	15/16″	0.500″	0.406″	1.56″
7205X12	B7205X12	3/4″	1/2″	1-1/8″	0.656″	0.531″	1.88″
7205X12X8	B7205X12X8	3/4″	3/4″	1-1/8″	0.656″	0.719″	1.88″
7205X14	B7205X14	7/8″	3/4″	1-1/4″	0.718″	0.719″	1.88″
7205X16	B7205X16	1″	1″	1-3/8″	0.875″	0.938″	2.07″
7205X16X12	–	1″	3/4″	1-3/8″	0.875″	0.719″	1.88″
7205X20	B7205X20	1-1/4″	1-1/4″	1-11/16″	1.093″	1.250″	2.18″
7205X24	B7205X24	1-1/2″	1-1/2″	2″	1.344″	1.500″	2.28″
