Sale!

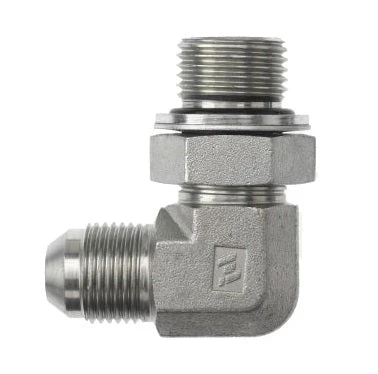

7202-04-06-NWO-FG By Brennan Inc. | -04 Male JIC X -06 Male BSPP Adjustable O-Ring Boss | 90° Elbow | Forged Steel
Original price was: $12.00.$8.40Current price is: $8.40.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | B1JIC 37° | B2BSPP | B1Drill | B2Drill | MLength | LLength | CHex | YFlats |
| 7202-04-02-NWO-FG | Forged Steel | 7/16-20″ | 1/8-28″ | 4.4mm | 4.2mm | 22.60mm | 26.20mm | 14.00mm | 11.10mm |
| 7202-04-04-NWO-FG | Forged Steel | 7/16-20″ | 1/4-19″ | 4.40mm | 7.50mm | 26.90mm | 32.00mm | 19.00mm | 14.00mm |
| 7202-04-06-NWO-FG | Forged Steel | 7/16-20″ | 3/8-19″ | 4.40mm | 9.50mm | 28.40mm | 36.80mm | 22.00mm | 19.00mm |
| 7202-05-04-NWO-FG | Forged Steel | 1/2-20″ | 1/4-19″ | 5.50mm | 5.00mm | 26.60mm | 31.80mm | 19.00mm | 14.30mm |
| 7202-06-04-NWO-FG | Forged Steel | 9/16-18″ | 1/4-19″ | 7.50mm | 7.50mm | 26.90mm | 31.80mm | 19.00mm | 14.30mm |
| 7202-06-06-NWO-FG | Forged Steel | 9/16-18″ | 3/8-19″ | 7.50mm | 9.50mm | 29.00mm | 36.80mm | 22.00mm | 19.00mm |
| 7202-06-08-NWO-FG | Forged Steel | 9/16-18″ | 1/2-14″ | 7.50mm | 12.30mm | 31.00mm | 43.20mm | 27.00mm | 22.20mm |
| 7202-08-04-NWO-FG | Forged Steel | 3/4-16″ | 1/4-19″ | 9.90mm | 7.50mm | 31.80mm | 36.80mm | 19.00mm | 19.00mm |
| 7202-08-06-NWO-FG | Forged Steel | 3/4-16″ | 3/8-19″ | 9.90mm | 9.50mm | 31.80mm | 36.80mm | 22.00mm | 19.00mm |
| 7202-08-08-NWO-FG | Forged Steel | 3/4-16″ | 1/2-14″ | 9.90mm | 12.30mm | 33.80mm | 43.20mm | 27.00mm | 22.00mm |
| 7202-08-10-NWO-FG | Forged Steel | 3/4-16″ | 5/8-14″ | 9.90mm | 14.00mm | 37.00mm | 48.00mm | 30.00mm | 27.00mm |
| 7202-08-12-NWO-FG | Forged Steel | 3/4-16″ | 3/4-14″ | 9.90mm | 15.50mm | 36.10mm | 49.30mm | 36.00mm | 27.00mm |
| 7202-10-06-NWO-FG | Forged Steel | 7/8-14″ | 3/8-19″ | 12.30mm | 9.50mm | 36.80mm | 39.40mm | 22.00mm | 22.20mm |
| 7202-10-08-NWO-FG | Forged Steel | 7/8-14″ | 1/2-14″ | 12.30mm | 12.30mm | 36.80mm | 43.20mm | 27.00mm | 22.20mm |
| 7202-10-12-NWO-FG | Forged Steel | 7/8-14″ | 3/4-14″ | 12.30mm | 15.50mm | 39.10mm | 49.30mm | 36.00mm | 27.00mm |
| 7202-12-08-NWO-FG | Forged Steel | 1-1/16-12″ | 1/2-14″ | 15.50mm | 12.30mm | 42.00mm | 49.50mm | 27.00mm | 27.00mm |
| 7202-12-12-NWO-FG | Forged Steel | 1-1/16-12″ | 3/4-14″ | 15.50mm | 15.50mm | 42.20mm | 49.30mm | 36.00mm | 27.00mm |
| 7202-12-16-NWO-FG | Forged Steel | 1-1/16-12″ | 1-11″ | 15.50mm | 21.40mm | 44.70mm | 52.10mm | 41.00mm | 33.30mm |
| 7202-16-12-NWO-FG | Forged Steel | 1-5/16-12″ | 3/4-14″ | 21.40mm | 15.50mm | 46.00mm | 49.50mm | 36.00mm | 33.00mm |
| 7202-16-16-NWO-FG | Forged Steel | 1-5/16-12″ | 1-11″ | 21.50mm | 21.50mm | 46.00mm | 52.00mm | 41.00mm | 33.00mm |
| 7202-16-20-NWO-FG | Forged Steel | 1-5/16-12″ | 1-1/4-11″ | 21.50mm | 27.40mm | 51.10mm | 57.20mm | 50.00mm | 41.30mm |
| 7202-20-20-NWO-FG | Forged Steel | 1-5/8-12″ | 1-1/4-11″ | 27.40mm | 27.50mm | 52.30mm | 57.00mm | 50.00mm | 41.30mm |
| 7202-24-24-NWO-FG | Forged Steel | 1-7/8-12″ | 1-1/2-11″ | 33.30mm | 33.30mm | 59.00mm | 67.60mm | 55.00mm | 47.60mm |
