| Features: |
|
|---|---|
| Applications & Markets: |
|
| Materials: |
|
| Specifications: |
|
| Series | Body Size | Max. Operating Pressure | Min. Burst Pressure | Rated Flow | |||
|---|---|---|---|---|---|---|---|
| 6000 | 3/4″ | 15 bar | 220 psi | 60 bar | 880 psi | 3,540 lpm | 125 gpm |
| Interchangeability | ||
|---|---|---|
| All Sizes | 1/4″ & 1/2″ | |
| US Industrial Interchange | ISO 6150 Series B A-A-59439 (former MIL-C-4109) | |
![]() |
![]() |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Socket/Female (Figure 1) |
Plug/Male (Figure 2) |
|||||||||
| 6000 Series | Sockets | ||||||||||
| Part Number | Coupling Type | Body Size | Hose ID | Material | Figure | Dimensions | ||||
| A | B | |||||||||
| 6800E | Socket/Female | 3/4″ | 1/2″ | Brass | 1 | 3.21″ (81.53mm) |
1.88″ (47.75mm) |
|||
| 6900 | Socket/Female | 3/4″ | 3/4″ | Brass | 1 | 4.06″ (103.12mm) |
1.88″ (47.75mm) |
|||
| 7000E | Socket/Female | 3/4″ | 1″ | Brass | 1 | 4.07″ (103.38mm) |
1.88″ (47.75mm) |
|||
| 6000 Series | Plugs | ||||||||||
| Part Number | Coupling Type | Body Size | Hose ID | Material | Figure | Dimensions | ||||
| A | B | |||||||||
| 70A | Plug/Male | 3/4″ | 1/2″ | Steel | 2 | 2.53″ (64.26mm) |
0.94″ (23.88mm) |
|||
| 70GA** | Plug/Male | 3/4″ | 1/2″ | Steel | 2 | 3.53″ (89.66mm) |
1.12″ (28.45mm) |
|||
| 71A | Plug/Male | 3/4″ | 3/4″ | Steel | 2 | 3.44″ (87.38mm) |
1.06″ (26.92mm) |
|||

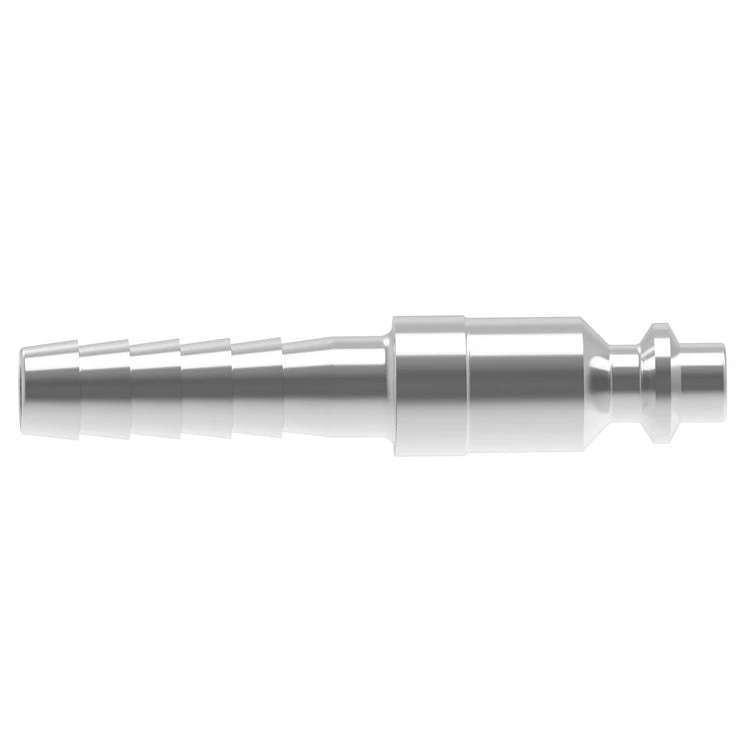

| 71GA** | Plug/Male | 3/4″ | 3/4″ | Steel | 2 | 4.38″ (111.25mm) |
1.12″ (28.45mm) |
|||
| 72A | Plug/Male | 3/4″ | 1″ | Steel | 2 | 3.44″ (87.38mm) |
1.31″ (33.27mm) |
|||
| B71A | Plug/Male | 3/4″ | 3/4″ | Steel | 2 | 3.44″ (87.38mm) |
1.06″ (26.92mm) |
|||
** With Bleeder Ball Check – Reduces Hose Whip
