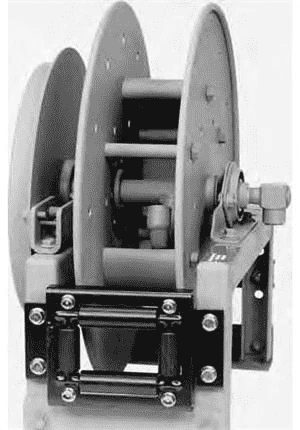

716-23-24-15.5J By Hannay | #42-32 | 700 Series | Spring Rewind Reel

Original price was: $346.00.Current price is: $98.99.

SKU: AG9ZZ 1476856184868 Categories: Hose Equipment, Tools & Equipment Tags: All-categories, Collection-lvl1_All Equipment, Collection-lvl2_Hose Equipment, Collection-lvl3_Hose Reels, Hannay Hose Reels, Hose-equipment, LegacyProductTypeReplacement_All Categories, Matrixify1st50kProducts, Reels for Hose, Series 700 - Spring Rewind Reels

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Applications:
Lubrication Air/Water Assembly Operations Washdown Air Tools General Industrial Applications
Features:
Rollformed channel frame for heavy-duty applications. Non sparking ratchet assembly. Declutching arbor to prevent damage from reverse winding. Standard inlet 90 deg. balanced pressure swivel joint 1/2″ female NPT threads. Standard outlet 1/2″ female NPT threads. Standard Pressures to 3000 psi (207 bar) (available up to 10,000 psi 690 bar). Temperatures from -60 deg. F to +250 deg. F (-51 deg. C to +121 deg. C). 4-way roller assembly.

Model Number	Hose Capacity of Reel (Ft.)			Approx. Weight (Lbs.)	Reel Dimensions (In.)
	I.D. (in)	3/8″	1/2″
	O.D. (in)	5/8″	3/4″		A	B	C	D	E	F	G	H	X	Y
716-23-24-15.5J		65′ length	65′ length	79 lbs.	9.25″	4″	15.5″	23.25″	24.38″	12.75″	23.88″	12.5″	4.5″	20″
716-23-24-15.5G		75′ length	65′ length	94 lbs.	9.25″	4″	15.5″	23.25″	24.38″	12.75″	23.88″	12.5″	4.5″	20″
716-25-26-15.5B		75′ length	75′ length	90 lbs.	9.25″	4″	15.5″	25″	26.12″	12.75″	25.88″	13.5″	4.5″	21.75″
718-25-26-15.5G		100′ length	100′ length	96 lbs.	11.25″	6″	15.5″	25″	26.12″	14.75″	25.88″	13.5″	6.5″	21.75″
718-30-31-20D		150′ length	125′ length	127 lbs.	11.25″	6″	20″	28.5″	29.62″	15.5″	31.38″	17″	6.5″	25.25″
