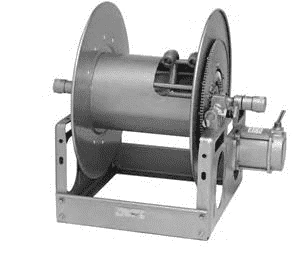

7032-33-34 By Hannay | 7000 Series | Manual Bevel Gear Crank Rewind Dual Hose Reel

7032-33-34 By Hannay | 7000 Series | Manual Bevel Gear Crank Rewind Dual Hose Reel

Original price was: $391.00.Current price is: $95.99.

SKU: AG9ZZ 1476869947428 Categories: , Tags: , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Applications:
  • Hydraulics
  • Dual Agents
Features:
  • Two swivel joint inlets and two outlet risers to handle two equal lengths of hose.
  • Gear-driven crank rewind comes standard with a pinion brake. An auxiliary rewind is standard.
  • Crank rewind reels come standard with a pinion brake
  • Standard inlets 90 deg. ball bearing swivel joints 1″ female NPT threads.
  • Standard outlets 1″ female NPT threads.
  • Standard inlet, outlet riser and hub assembly are steel.
  • Pressures to 2000 psi (138 bar).
  • Temperatures from -60 deg. F to +250 deg. F (-51 deg. C to +121 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 3/4″ 1″ 7032-33-34 By Hannay | 7000 Series | Manual Bevel Gear Crank Rewind Dual Hose Reel -Hose Ware House
O.D. (in) 1-9/32″ 1-9/16″ A B D E F Crank F Power G H X Y
7024-19-21 (two) 60′ lengths (two) 25′ lengths 100 lbs. 21″ 15.5″ 20.5″ 21.88″ 29.75″ 32.12″ 21.5″ 12.12″ 13″ 16.75″
7026-23-24 (two) 90′ lengths (two) 50′ lengths 105 lbs. 23″ 17.5″ 20.5″ 23″ 31.75″ 34.12″ 23.5″ 12.12″ 15″ 16.75″
7016-25-26 (two) 40′ lengths (two) 30′ lengths 95 lbs. 13″ 7.5″ 25.5″ 24.75″ 21.75″ 24.12″ 27.88″ 15.5″ 7.75″ 21.75″
7032-25-26 (two) 175′ lengths (two) 100′ lengths 129 lbs. 29.5″ 24″ 25.5″ 24.75″ 38.25″ 40.62″ 27.88″ 15.5″ 21.5″ 21.75″
7032-30-31† (two) 300′ lengths (two) 150′ lengths 137 lbs. 29.5″ 24″ 25.5″ 28.75″ 38.25″ 40.62″ 29.88″ 15.5″ 21.5″ 21.75″
7024-33-34† (two) 225′ lengths (two) 115′ lengths 120 lbs. 20.5″ 15.5″ 31.5″ 31.75″ 29.75″ 32.12″ 33.62″ 17.75″ 13″ 27.75″
7032-33-34† (two) 350′ lengths (two) 200′ lengths 137 lbs. 29″ 24″ 31.5″ 31.75″ 38.25″ 40.62″ 33.62″ 17.75″ 21.5″ 27.75″

† Some applications require a clutch/reduction unit.
