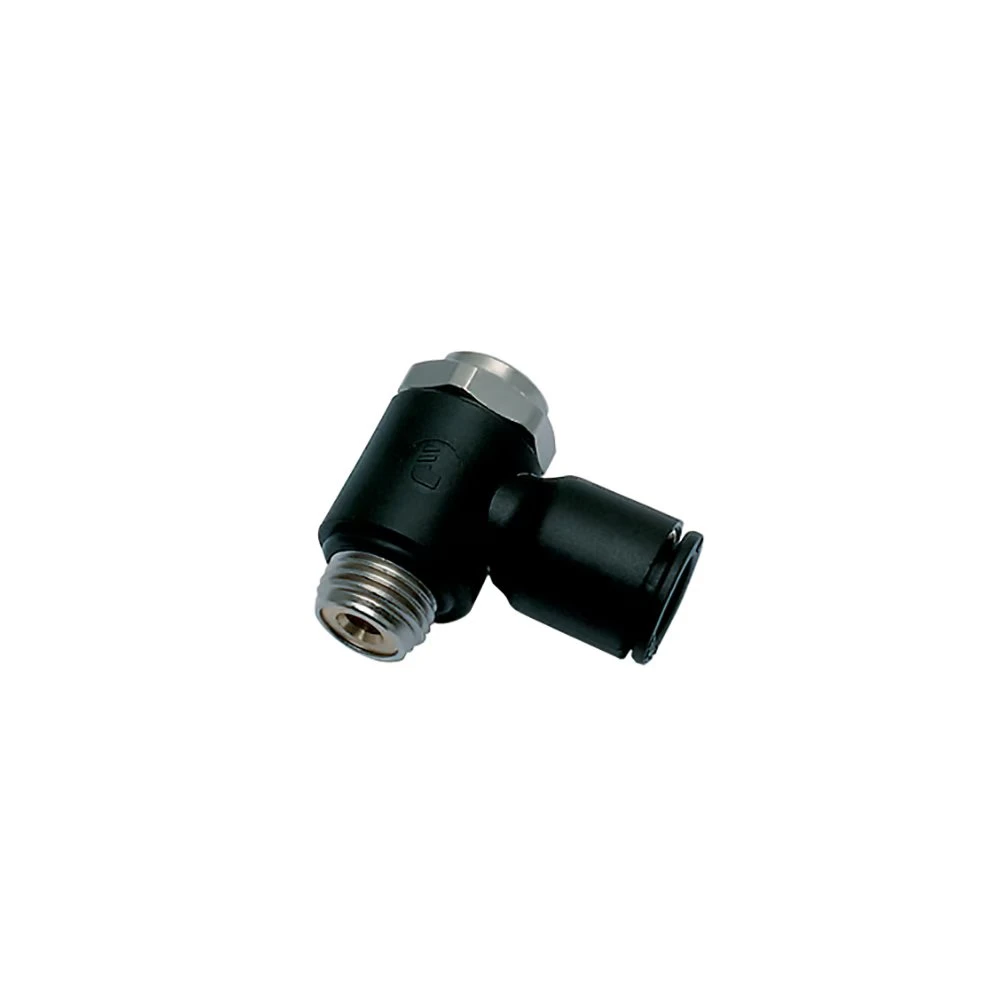

7012 06 10 By Parker | Legris Bi-Directional Flow Regulator | 6 Mm Tube Size X 1/8″ Male BSPP Thread | 90° Elbow | Polymer | Pack Of 10
Original price was: $186.27.$99.99Current price is: $99.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Technical Characteristics: |
|
|---|---|
| Advantages: | Productivity: Higher maximum flow than standard regulators Optimal control of the cylinder rod speed Accuracy: Precise adjustment for accurate flow regulation Long-term stability of flow Ergonomics: External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism Can be rotated 360° during assembly |
| Regulations: |
|
| Component Materials: |
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | ØD | C | E | F | H | L | L1 | Kg |
| 7012 04 19 | 4 mm | M5x0.8 | 4 mm | 8 mm | 17.5 mm | 17 mm | 5 mm | .006 Kg |
| 7012 04 10 | 4 mm | 1/8″ | 5 mm | 13 mm | 25 mm | 19 mm | 7 mm | .018 Kg |
| 7012 06 19 | 6 mm | M5x0.8 | 4 mm | 8 mm | 17.5 mm | 19 mm | 5 mm | .006 Kg |
| 7012 06 10 | 6 mm | 1/8″ | 5 mm | 13 mm | 25 mm | 21 mm | 17 mm | .019 Kg |
| 7012 06 13 | 6 mm | 1/4″ | 8 mm | 17 mm | 26.5 mm | 22 mm | 9.5 mm | .035 Kg |
| 7012 08 10 | 8 mm | 1/8″ | 5 mm | 13 mm | 25 mm | 26 mm | 7 mm | .019 Kg |
| 7012 08 13 | 8 mm | 1/4″ | 8 mm | 17 mm | 26.5 mm | 27 mm | 9.5 mm | .036 Kg |
| 7012 08 17 | 8 mm | 3/8″ | 7.5 mm | 20 mm | 37.5 mm | 29 mm | 11 mm | .071 Kg |
