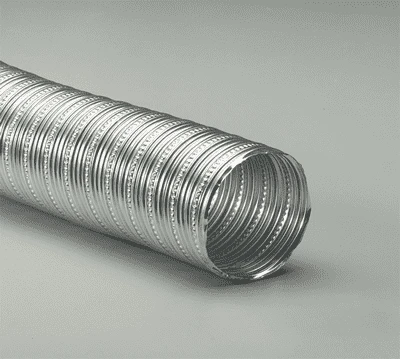

7-Bendway-A-10 By Flexaust | #4950700010 | Bendway A | Air And Fume Duct Hose | 7 Inch | 10ft

Original price was: $131.20.Current price is: $91.84.

SPECIFICATIONS

Other Features:
Applications:	Circuit Board Cooling	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Single-ply helically corrugated aluminum alloy
Reinforcement:	Four-ply finished seam that is folded flat and crimped for tightness and strength	Cover:	N/A
Temperature Range:	-100 deg. F to 400 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Light weight & hand bendable allowing for elbows & turns to be formed easily during installation. Self-supporting construction allows for bends to stay in place. Resists metal fatigue, weathering, & most corrosive fumes & chemicals. Not recommended for continuous flexing.

Part Number 5 ft Reels	Part Number 10 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight – 5ft (Lbs/Ft)	Weight – 10ft (Lbs/Ft)
Bendway A 2in	Bendway A 2in	2″	.008″	4″	N/A	N/A	N/A	0.565 lbs	1.13 lbs
Bendway A 3in	Bendway A 3in	3″	.008″	5.7″	N/A	N/A	N/A	0.835 lbs	1.67 lbs
Bendway A 4in	Bendway A 4in	4″	.008″	7.48″	N/A	N/A	N/A	1 lbs	2 lbs
Bendway A 5in	Bendway A 5in	5″	.008″	9.34″	N/A	N/A	N/A	1.25 lbs	2.5 lbs
Bendway A 6in	Bendway A 6in	6″	.008″	11.2″	N/A	N/A	N/A	1.5 lbs	3 lbs
Bendway A 7in	Bendway A 7in	7″	.008″	13.06″	N/A	N/A	N/A	1.75 lbs	3.5 lbs
Bendway A 8in	Bendway A 8in	8″	.008″	14.96″	N/A	N/A	N/A	1.75 lbs	3.5 lbs
Bendway A 9in	Bendway A 9in	9″	.008″	16.82″	N/A	N/A	N/A	2 lbs	4 lbs
Bendway A 10in	Bendway A 10in	10″	.008″	18.68″	N/A	N/A	N/A	2.2 lbs	4.4 lbs
Bendway A 12in	Bendway A 12in	12″	.008″	22.39″	N/A	N/A	N/A	2.65 lbs	5.3 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
