6GC30-10×10 By Couplamatic | Grip Crimp 6GC Series Coupling | 5/8″ Hose ID X 1×14 Thread Size O-Ring Face Seal | ORF Female Swivel | Straight | Trivalent Zinc Plating
Original price was: $15.56.$10.89Current price is: $10.89.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Description: | |||
|---|---|---|---|
| The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully. Trivalent Zinc Plating |

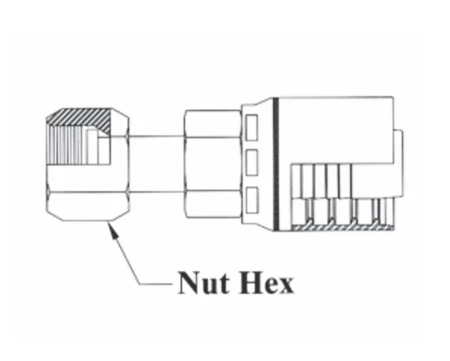

| Part Number | Hose ID | Tube Size | Thread Size | Nut Hex | Cross Reference Part Numbers | |
|---|---|---|---|---|---|---|
| Parker 78 | Parker 79 | |||||
| 6GC30-10×10 | 5/8″ | 5/8″ | 1×4 | 1-1/8″ | – | |
| 6GC30-12×12 | 3/4″ | 3/4″ | 1-3/16×12 | 1-3/8″ | 1JS78-12-12 | 1JS79-12-12 |
| 6GC30-12×16 | 3/4″ | 1″ | 1-7/16×12 | 1-5/8″ | – | |
| 6GC30-16×16 | 1″ | 1″ | 1-7/16×12 | 1-5/8″ | 1JS78-16-16 | 1JS79-16-16 |
| 6GC30-20×20 | 1-1/4″ | 1-1/4″ | 1-11/16×12 | 1-7/8″ | 1JS78-20-20 | 1JS79-20-20 |
| 6GC30-24×24 | 1-1/2″ | 1-1/2″ | 2×12 | 2-1/4″ | – | |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer.
Please check hose cut off factor, tube length, and tube drop carefully.
