6GC09-10x10 By Couplamatic | Grip Crimp 6GC Series Coupling | 5/8" Hose ID X 7/8x14 Thread Size JIC 37° Female Swivel | Straight | Trivalent Zinc Plating

6GC09-10×10 By Couplamatic | Grip Crimp 6GC Series Coupling | 5/8″ Hose ID X 7/8×14 Thread Size JIC 37° Female Swivel | Straight | Trivalent Zinc Plating

Original price was: $13.59.Current price is: $9.51.

SKU: AG9ZZ 7356096086181 Category: Fittings & Clamps Tags: Collection-lvl1_All Hose Ends, Collection-lvl2_Ends for Hydraulic Hose, Collection-lvl3_4 and 6 Wire Hydraulic Hose Fittings, Couplamatic Hydraulic Couplings, Couplamatic Hydraulics, Ends-for-hydraulic-hose, Female-swivel, Grip Crimp 6GC Series 4SH R13 R15 No-Skive Couplings, Grip Crimp 6GC Series JIC 37° - Female Swivel, Grip Crimp 6GC Series JIC 37° Fittings, Grip Crimp Couplings, LegacyProductTypeReplacement_Female Swivel, Material_trivalent-zinc, Matrixify2nd50kProducts, Shape_straight, Thread-type_jic

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Description:
The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully. Trivalent Zinc Plating

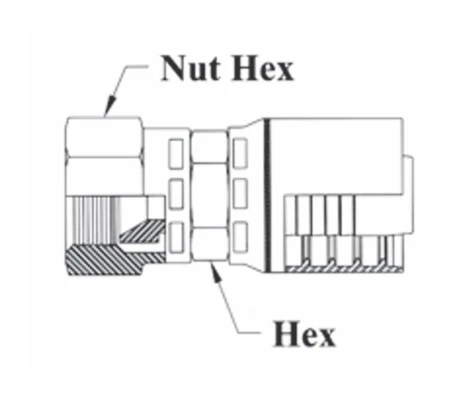

Part Number	Hose ID	Tube Size	Thread Size	Hex Size	Nut Hex	Cross Reference Part Numbers
Parker 78
6GC09-10×10	5/8″	5/8″	7/8×14	15/16″	1″	–
6GC09-12×12	3/4″	3/4″	1-1/16×12	1-1/8″	1-1/4″	10678-12-12
6GC09-12×16	3/4″	1″	1-5/16×12	1-3/8″	1-1/2″	10678-16-12
6GC09-16×16	1″	1″	1-5/16×12	1-3/8″	1-1/2″	10678-16-16
6GC09-20×20	1-1/4″	1-1/4″	1-5/8×12	1-11/16″	2″	10678-20-20
6GC09-24×24	1-1/2″	1-1/2″	1-7/8×12	2″	2-1/4″	10678-24-24
6GC09-32×32	2″	2″	2-1/2×12	2-1/2″	2-7/8″	106S6-32-32

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer.
Please check hose cut off factor, tube length, and tube drop carefully.
