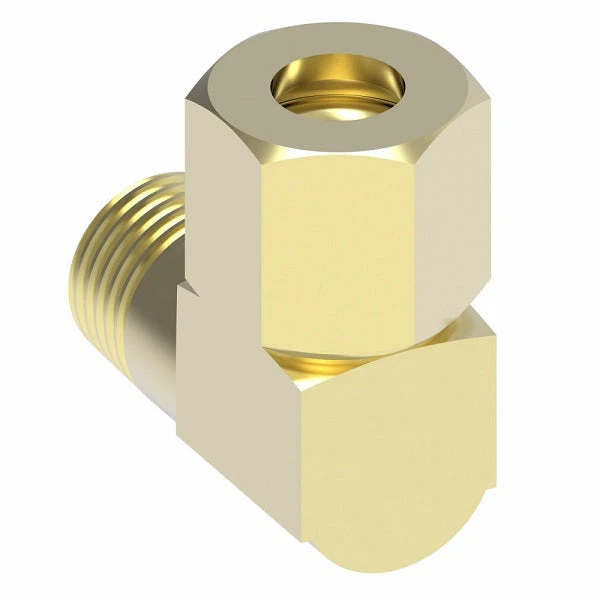

69X8 By Danfoss | Compression Fitting | Male Connector 90° Elbow | 1/2" Tube OD X 3/8" Male NPTF | Brass

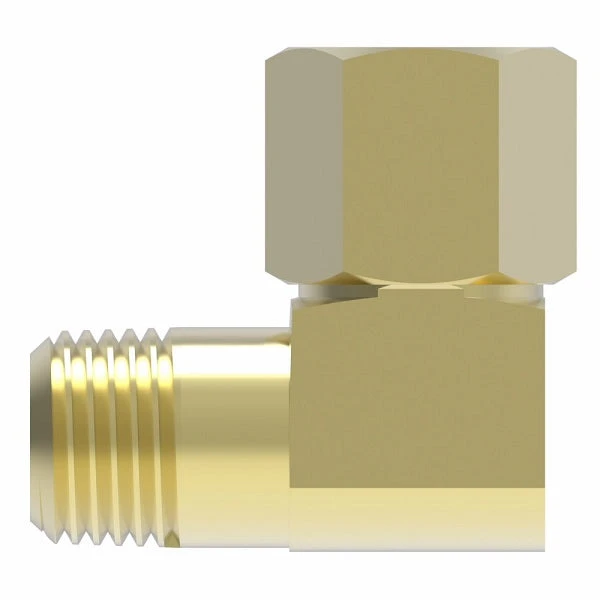

69X8 By Danfoss | Compression Fitting | Male Connector 90° Elbow | 1/2" Tube OD X 3/8" Male NPTF | Brass - Image 2

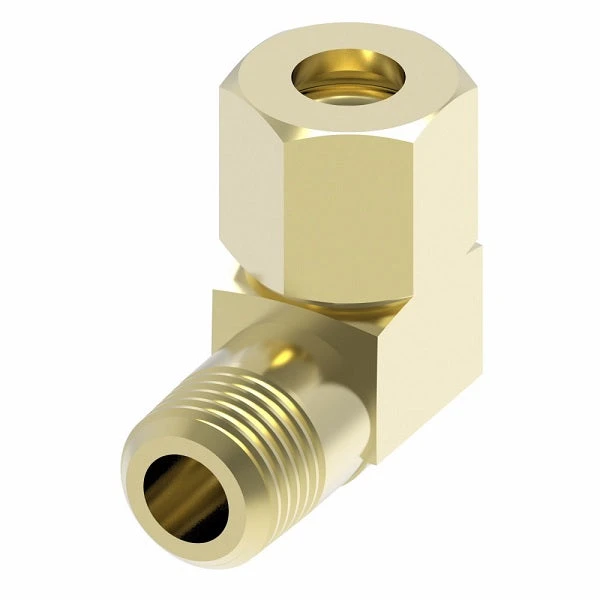

69X8 By Danfoss | Compression Fitting | Male Connector 90° Elbow | 1/2" Tube OD X 3/8" Male NPTF | Brass - Image 3

69X8 By Danfoss | Compression Fitting | Male Connector 90° Elbow | 1/2″ Tube OD X 3/8″ Male NPTF | Brass

Original price was: $12.00.Current price is: $8.40.

SKU: AG9ZZ 1476897865764 Categories: Fittings & Clamps, Tube Fittings Tags: 69 Series Eaton Compression 90 Degree Male Elbow, All-categories, Collection-lvl1_All Hose Ends, Collection-lvl2_Ends for Special Hose Types, Collection-lvl3_Tube Fittings, Eaton Brass, Eaton Compression and Selfalign Products, Ends-for-special-hose-types, Industrial Plastic Tubing, LegacyProductTypeReplacement_All Categories, Matrixify2nd50kProducts, PriceTeirs_Adapters

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Applications:
Instrumentation, hydraulic and pneumatic systems.
Advantages:
Low cost. No flaring. Easy to assemble. Fair vibration resistance – use long nut when greater vibration resistance is needed.
Used With:
Aluminum, copper and plastic tubing. (Not recommended for steel tubing.)
Material:
CA360 Brass
Pressure:
Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size. When using plastic tubing, use the working pressure for type used.
Temperature Range:
65°F to +250°F (-53°C to +121°C) with metal tubing. When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
Ref. SAE No. 060202BA Meets specifications and standards of ASA, ASME and SAE.

Tube OD	1/8″	3/16″	1/4″	5/16″	3/8″	7/16″	1/2″	5/8″	3/4″	1″
Thread Size	5/16-24	3/8-24	7/16-24	1/2-24	9/16-24	5/8-24	11/16-20	13/16-18	1-18	1-1/4-18


69X2X1	–	B69X2X1	1/8″	1/16″	0.104″	0.125″	0.54″	0.66″
69X2	69X2Z	–	1/8″	1/8″	0.94″	0.219″	0.60″	0.67″
69X3	–	B69X3	3/16″	1/8″	0.125″	0.219″	0.62″	0.69″
69X4	69X4Z	B69X4	1/4″	1/8″	0.188″	0.219″	0.62″	0.75″
69X4X4	–	–	1/4″	1/4″	0.188″	0.188″	0.63″	0.84″
69X5	–	B69X5	5/16″	1/8″	0.250″	0.234″	0.62″	0.75″
69X5X4	–	B69X5X4	5/16″	1/4″	0.202″	0.344″	0.69″	0.84″
69X6X2	–	B69X6X2	3/8″	1/8″	0.312″	0.234″	0.69″	0.69″
69X6	–	B69X6	3/8″	1/4″	0.312″	0.344″	0.75″	0.93″
69X6X6	–	B69X6X6	3/8″	3/8″	0.312″	0.437″	0.85″	0.94″
69X6X8	–	B69X6X8	3/8″	1/2″	0.312″	0.562″	1.04″	1.14″
69X8X4	–	B69X8X4	1/2″	1/4″	0.406″	0.312″	0.84″	0.94″
69X8	–	B69X8	1/2″	3/8″	0.406″	0.407″	0.94″	1.12″
69X8X8	–	B69X8X8	1/2″	1/2″	0.406″	0.531″	0.94″	1.31″
69X10	–	B69X10	5/8″	1/2″	0.500″	0.564″	1.06″	1.31″
