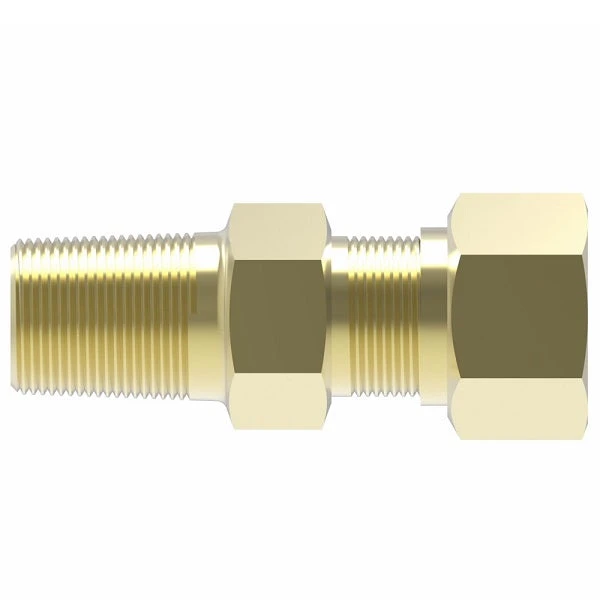

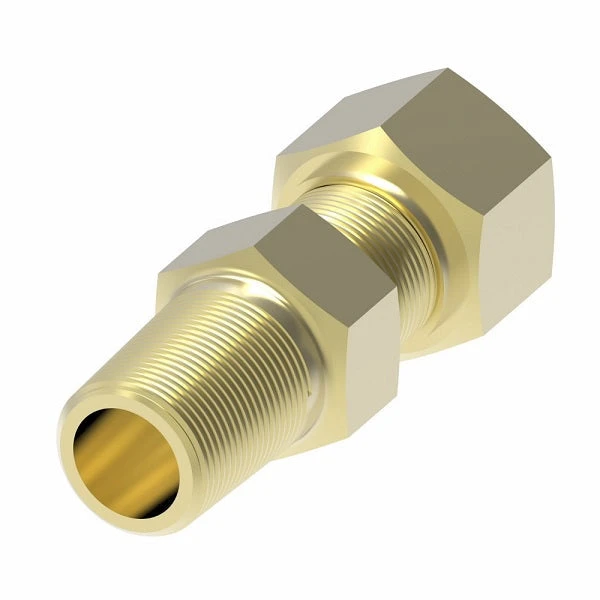

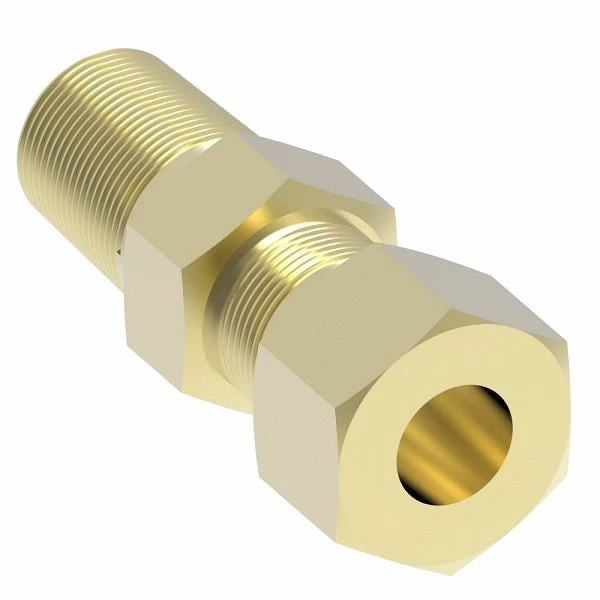

681X8X8 By Danfoss | SelfAlign Adapter | Male Connector | 1/2" Tube OD X 1/2" Male NPTF | Brass

681X8X8 By Danfoss | SelfAlign Adapter | Male Connector | 1/2" Tube OD X 1/2" Male NPTF | Brass - Image 2

681X8X8 By Danfoss | SelfAlign Adapter | Male Connector | 1/2" Tube OD X 1/2" Male NPTF | Brass - Image 3

681X8X8 By Danfoss | SelfAlign Adapter | Male Connector | 1/2″ Tube OD X 1/2″ Male NPTF | Brass

Original price was: $12.00.Current price is: $8.40.

SKU: AG9ZZ 1476901994532 Category: Fittings & Clamps Tags: 681 Series Eaton Selfalign Male Connector, All-categories, Collection-lvl1_All Hose Ends, Collection-lvl2_Ends for Special Hose Types, Collection-lvl3_Tube Fittings, Eaton Brass, Eaton Compression and Selfalign Products, Ends-for-special-hose-types, Industrial Plastic Tubing, LegacyProductTypeReplacement_All Categories, Matrixify2nd50kProducts, PriceTeirs_Adapters

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Applications:
Instrumentation, hydraulic and pneumatic systems.
Advantages:
Very low cost and reusable. Self aligning – no need to disassemble fitting to line up sleeve on tube. Low cost. Easy to assemble, no flaring. Good vibration resistance – use long nut when greater vibration resistance is needed.
Used With:
Aluminum, copper and plastic tubing. Plastic tubing, except for PT230 and TP160, requires 2030x insert. Not recommended for steel tubing.
Material:
CA360 Brass
Pressure:
Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size. When using plastic tubing, use the working pressure for type used.
Temperature Range:
-65°F to +250°F (-53°C to +121°C) with metal tubing. When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
An exclusive product design, user approvals only


Brass Part Number	Tube O.D.	Male Pipe Thread	Hex C	D	L
681X2X1	1/8″	1/16″	3/8″	0.094″	0.78″
681X2	1/8″	1/8″	7/16″	0.094″	0.78″
681X3	3/16″	1/8″	7/16″	0.125″	0.84″
681X4	1/4″	1/8″	7/16″	0.188″	0.88″
681X4X4	1/4″	1/4″	9/16″	0.188″	1.06″
681X5	5/16″	1/8″	1/2″	0.234″	0.91″
681X5X4	5/16″	1/4″	9/16″	0.250″	1.09″
681X6X2	3/8″	1/8″	9/16″	0.250″	0.97″
681X6	3/8″	1/4″	9/16″	0.312″	1.17″
681X6X6	3/8″	3/8″	11/16″	0.312″	1.16″
681X6X8	3/8″	1/2″	7/8″	0.312″	1.34″
681X8X4	1/2″	1/4″	11/16″	0.281″	1.22″
681X8	1/2″	3/8″	11/16″	0.406″	1.22″
681X8X8	1/2″	1/2″	7/8″	0.406″	1.41″
681X10	5/8″	1/2″	7/8″	0.500″	1.50″
