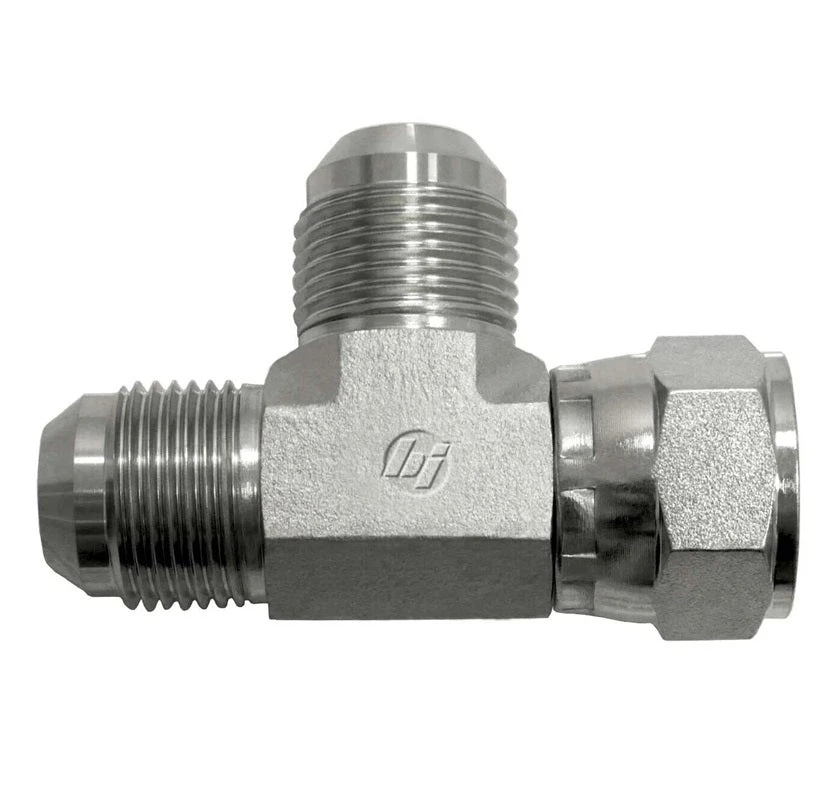

6602-08-08-06-FG By Brennan Inc. | -08 Male JIC X -08 Female JIC Swivel X -06 Male JIC | Tee | Forged Steel

Original price was: $12.00.Current price is: $8.40.

SKU: AG9ZZ 8669788111013 Categories: Adapters, Adapters & More Tags: 6602 Male JIC x Female JIC Swivel x Male JIC Tee, Brennan Adapters, Collection-lvl1_All Hose Ends, Collection-lvl2_Adapters and More, Collection-lvl3_Hydraulic Adapters, Created in 2024, Female JIC Swivel Adapters, Forged Steel Adapters, Male JIC Adapters, Matrixify3rd50kProducts, Tee Adapters

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)


Part Number	Material	A1 Tube O.D.	A2 Tube O.D.	A1 SAE37°	A2 SAE37°	A3 SAE37°	A1 Drill	A2 Drill	A3 Drill	M Length	M5 Length	M6 Length	M2 Length	C Hex	Y Flats
6602-03-03-03-FG	Forged Steel	3/16″	3/16″	3/8-24″	3/8-24″	3/8-24″	0.125″	0.125″	0.125″	0.830″	0.670″	1.000″	0.83″	0.500″	0.438″
6602-04-04-04-FG	Forged Steel	1/4″	1/4″	7/16-20″	7/16-20″	7/16-20″	0.172″	0.172″	0.172″	0.890″	0.650″	1.000″	0.890″	0.563″	0.438″
6602-04-06-06-FG	Forged Steel	1/4″	3/8″	7/16-20″	9/16-18″	9/16-18″	0.172″	0.172″	0.297″	1.050″	0.875″	1.250″	1.060″	0.688″	0.562″
6602-05-05-05-FG	Forged Steel	5/16″	5/16″	1/2-20″	1/2-20″	1/2-20″	0.234″	0.234″	0.234″	0.950″	0.680″	1.060″	0.950″	0.625″	0.562″
6602-06-06-04-FG	Forged Steel	3/8″	1/4″	9/16-18″	9/16-18″	7/16-20″	0.297″	0.297″	0.172″	1.060″	0.875″	1.250″	1.050″	0.688″	0.562″
6602-06-06-06-FG	Forged Steel	3/8″	3/8″	9/16-18″	9/16-18″	9/16-18″	0.297″	0.297″	0.297″	1.060″	0.875″	1.250″	1.060″	0.687″	0.562″
6602-06-08-06-FG	Forged Steel	3/8″	1/2″	9/16-18″	3/4-16″	9/16-18″	0.297″	0.391″	0.297″	1.140″	0.950″	1.380″	1.140″	0.875″	0.750″
6602-06-08-08-FG	Forged Steel	3/8″	1/2″	9/16-18″	3/4-16″	3/4-16″	0.297″	0.391″	0.391″	1.140″	0.950″	1.380″	1.250″	0.875″	0.750″
6602-08-08-04-FG	Forged Steel	1/2″	1/2″	3/4-16″	3/4-16″	7/16-20″	0.391″	0.391″	0.172″	1.250″	0.950″	1.380″	1.120″	0.875″	0.750″
6602-08-08-06-FG	Forged Steel	1/2″	3/8″	3/4-16″	3/4-16″	9/16-18″	0.391″	0.391″	0.297″	1.250″	0.950″	1.380″	1.140″	0.875″	0.750″
6602-08-08-08-FG	Forged Steel	1/2″	1/2″	3/4-16″	3/4-16″	3/4-16″	0.391″	0.391″	0.391″	1.250″	0.950″	1.380″	1.250″	0.875″	0.750″
6602-08-08-12-FG	Forged Steel	1/2″	3/4″	3/4-16″	3/4-16″	1-1/16-12″	0.391″	0.391″	0.609″	1.420″	1.130″	1.550″	1.660″	0.875″	1.062″
6602-08-12-12-FG	Forged Steel	1/2″	3/4″	3/4-16″	1-1/16-12″	1-1/16-12″	0.391″	0.609″	0.609″	1.420″	1.180″	1.750″	1.660″	1.250″	1.062″
6602-10-10-10-FG	Forged Steel	5/8″	5/8″	7/8-14″	7/8-14″	7/8-14″	0.484″	0.484″	0.484″	1.450″	1.120″	1.620″	1.450″	1.000″	0.875″
6602-10-10-12-FG	Forged Steel	5/8″	3/4″	7/8-14″	7/8-14″	1-1/16-12″	0.484″	0.484″	0.609″	1.540″	1.150″	1.660″	1.660″	1.000″	1.062″
6602-12-12-04-FG	Forged Steel	3/4″	1/4″	1-1/16-12″	1-1/16-12″	7/16-20″	0.609″	0.609″	0.172″	1.660″	1.180″	1.750″	1.300″	1.250″	1.062″
6602-12-12-12-FG	Forged Steel	3/4″	3/4″	1-1/16-12″	1-1/16-12″	1-1/16-12″	0.609″	0.609″	0.609″	1.660″	1.180″	1.750″	1.660″	1.250″	1.062″
6602-12-16-12-FG	Forged Steel	–	–	–	–	–	–	–	–	–	–	–	–	–	–
6602-14-14-14-FG	Forged Steel	7/8″	7/8″	1-3/16-12″	1-3/16-12″	1-3/16-12″	0.719″	0.719″	0.719″	1.800″	1.200″	1.780″	1.800″	1.375″	1.312″
6602-16-16-12-FG	Forged Steel	1″	3/4″	1-5/16-12″	1-5/16-12″	1-1/16-12″	0.844″	0.844″	0.609″	1.810″	1.400″	2.000″	1.760″	1.500″	1.312″
6602-16-16-16-FG	Forged Steel	1″	1″	1-5/16-12″	1-5/16-12″	1-5/16-12″	0.844″	0.844″	0.844″	1.810″	1.400″	2.000″	1.810″	1.500″	1.312″
6602-16-20-20-FG	Forged Steel	1″	1-1/4″	1-5/16-12″	1-5/8-12″	1-5/8-12″	0.844″	1.078″	1.078″	2.010″	1.670″	2.310″	2.060″	2.000″	1.625″
6602-20-20-20-FG	Forged Steel	1-1/4″	1-1/4″	1-5/8-12″	1-5/8-12″	1-5/8-12″	1.078″	1.078″	1.078″	2.060″	1.685″	2.310″	2.060	2.000″	1.625″
6602-24-24-24-FG	Forged Steel	1-1/2″	1-1/2″	1-7/8-12″	1-7/8-12″	1-7/8-12″	1.312″	1.312″	1.312″	2.330″	1.870″	2.590″	2.330″	2.250″	1.875″
6602-32-32-32-FG	Forged Steel	2″	2″	2-1/2-12″	2-1/2-12″	2-1/2-12″	1.781″	1.781″	1.781″	3.060″	2.430″	3.380″	3.060″	2.875″	2.500″

6602-04-04-04-SS	Stainless Steel	1/4″	1/4″	7/16-20″	7/16-20″	7/16-20″	0.172″	0.172″	0.172″	0.890″	0.650″	1.000″	0.890″	0.563″	0.438″
6602-05-05-05-SS	Stainless Steel	5/16″	5/16″	1/2-20″	1/2-20″	1/2-20″	0.234″	0.234″	0.234″	0.950″	0.680″	1.060″	0.950″	0.625″	0.562″
6602-06-06-06-SS	Stainless Steel	3/8″	3/8″	9/16-18″	9/16-18″	9/16-18″	0.297″	0.297″	0.297″	1.060″	0.870″	1.250″	1.060″	0.687″	0.562″
6602-08-08-08-SS	Stainless Steel	1/2″	1/2″	3/4-16″	3/4-16″	3/4-16″	0.391″	0.391″	0.391″	1.250″	1.080″	1.380″	1.250″	0.875″	0.750″
6602-10-10-10-SS	Stainless Steel	5/8″	5/8″	7/8-14″	7/8-14″	7/8-14″	0.484″	0.484″	0.484″	1.450″	1.120″	1.620″	1.450″	1.000″	0.875″
6602-12-12-12-SS	Stainless Steel	3/4″	3/4″	1-1/16-12″	1-1/16-12″	1-1/16-12″	0.609″	0.609″	0.609″	1.660″	1.180″	1.750″	1.660″	1.250″	1.062″
6602-16-16-16-SS	Stainless Steel	1″	1″	1-5/16-12″	1-5/16-12″	1-5/16-12″	0.844″	0.844″	0.844″	1.810″	1.400″	2.000″	1.810″	1.500″	1.312″
6602-20-20-20-SS	Stainless Steel	1-1/4″	1-1/4″	1-5/8-12″	1-5/8-12″	1-5/8-12″	1.078″	1.078″	1.078″	2.060″	1.685″	2.310″	2.060	2.000″	1.625″
6602-24-24-24-SS	Stainless Steel	1-1/2″	1-1/2″	1-7/8-12″	1-7/8-12″	1-7/8-12″	1.312″	1.312″	1.312″	2.330″	1.870″	2.590″	2.330″	2.250″	1.875″
