| Technical Characteristics: |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| Advantages: |
|
||||||||
| Regulations: |
|
||||||||
| Component Materials: |
|
||||||||
| Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range |
![]() |
||||||||
![]() |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | ØD | ØD1 | G | H (mm) | H1 (mm) | H2 (mm) | L (mm) | H (in) | H1 (in) | H2 (in) | L (in) | Kg |
| 6382 08 60WP2 | 5/16″ | 3/8″ | 16 mm | 39 mm | 10 mm | 24.5 mm | 26 mm | – | – | – | – | .009 Kg |
| 6382 56 00WP2 | 1/4″ | 1/4″ | 11 mm | 30.5 mm | 11 mm | 18 mm | 18 mm | – | – | – | – | .002 Kg |
| 6382 56 60WP2 | 1/4″ | 3/8″ | 16 mm | 39 mm | 9 mm | 24.5 mm | 25.5 mm | – | – | – | – | .009 Kg |
| 6382 60 00WP2 | 3/8″ | 3/8″ | 16 mm | 39 mm | 9 mm | 24.5 mm | 26.5 mm | – | – | – | – | .005 Kg |
| 6382 60 56WP2 | 3/8″ | 1/4″ | – | – | – | – | – | 1.26″ | .43″ | .71″ | 1.04″ | – |
| 6382 62 00WP2 | 1/2″ | 1/2″ | 22 mm | 49 mm | 13 mm | 28.5 mm | 36 mm | – | – | – | – | .004 Kg |

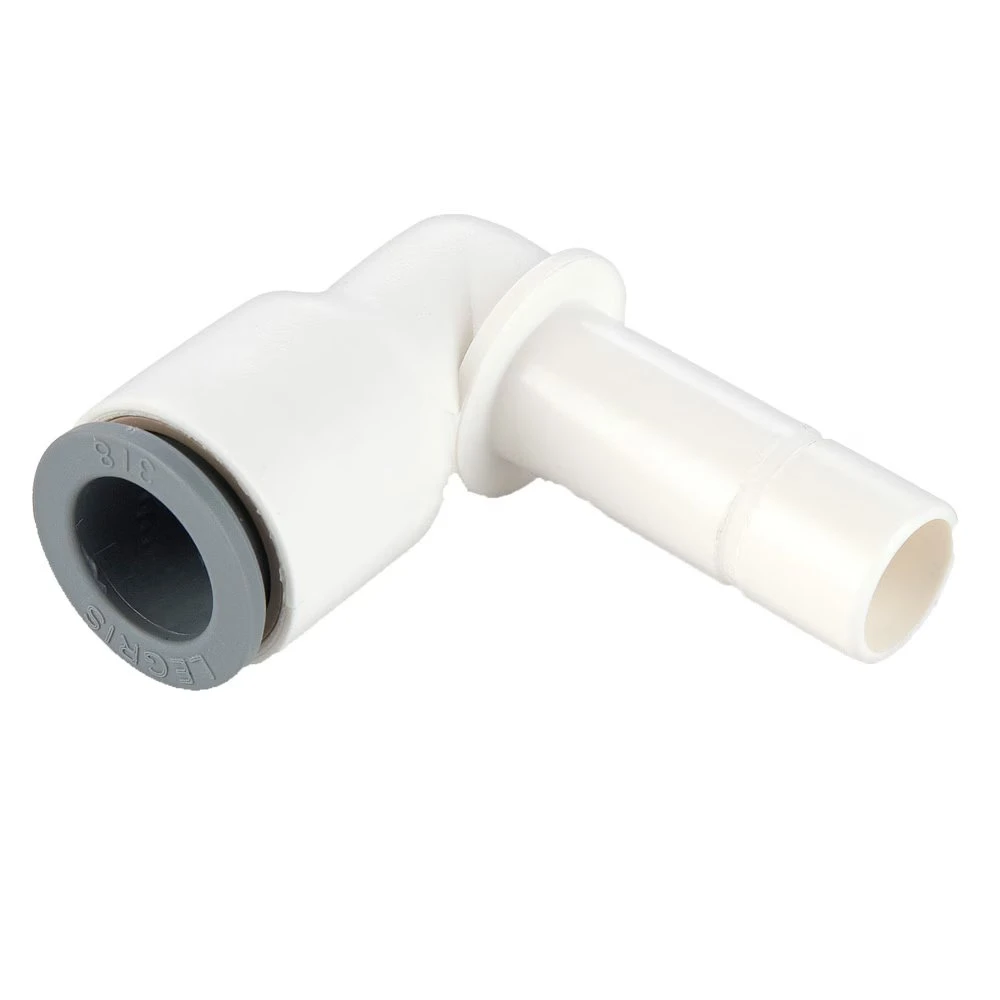

Equal plug-in elbow: 5/32” (4 mm) and 5/16” (8 mm) also available
The references in diameter 4mm and 12mm are not grooved in standard version
