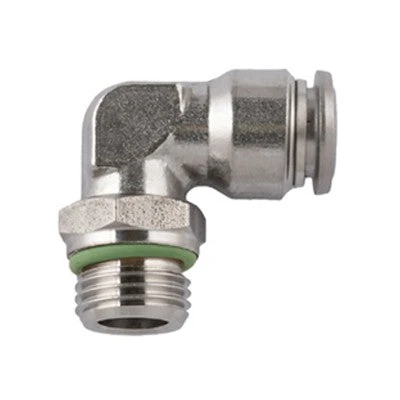

60115-4-1/8 By AIGNEP | 60/62 Series | Swivel | 4mm (5/32") Tube Push Connect X 1/8" Male BSPP | 90° Elbow | FKM Seal | Stainless Steel

60115-4-1/8 By AIGNEP | 60/62 Series | Swivel | 4mm (5/32") Tube Push Connect X 1/8" Male BSPP | 90° Elbow | FKM Seal | Stainless Steel - Image 2

60115-4-1/8 By AIGNEP | 60/62 Series | Swivel | 4mm (5/32″) Tube Push Connect X 1/8″ Male BSPP | 90° Elbow | FKM Seal | Stainless Steel

Original price was: $19.41.Current price is: $13.59.

SKU: AG9ZZ 7711775588517 Categories: Fittings & Clamps, Tube Fittings Tags: 4mm (5/32") Tube Push Connect x 1/8" Male BSPP, 60/62 Series, Collection-lvl1_All Hose Ends, Collection-lvl2_Ends for Special Hose Types, Collection-lvl3_Tube Fittings, FKM Seal, JD052722-00, Matrixify2nd50kProducts, Stainless Steel Swivel Male Elbow

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Swivel Elbow Stainless – BSPP

Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ? F – 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel
Thread Seal: FKM

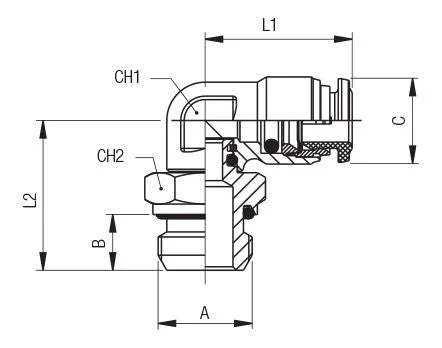

Product Number	Tube	A	B	C	L1	L2	CH1	CH2
60115-4-M5	4 mm	M5	4 mm	10 mm	18 mm	15 mm	9 mm	8 mm
60115-4-1/8	4 mm	1/8″	6 mm	10 mm	18 mm	17 mm	9 mm	13 mm
60115-4-1/4	4 mm	1/4″	8 mm	10 mm	18 mm	19.5 mm	9 mm	15 mm
60115-6-M5	6 mm	M5	4 mm	12.5 mm	21 mm	18 mm	11 mm	10 mm
60115-10-1/4	10 mm	1/4″	8 mm	17.5 mm	26 mm	23 mm	16 mm	15 mm
60115-10-3/8	10 mm	3/8″	9 mm	17.5 mm	26 mm	26.5 mm	16 mm	21 mm
60115-12-3/8	12 mm	3/8″	9 mm	20.5 mm	30.5 mm	29 mm	19 mm	21 mm
60115-12-1/2	12 mm	1/2″	10 mm	20.5 mm	30.5 mm	31.5 mm	19 mm	22 mm
