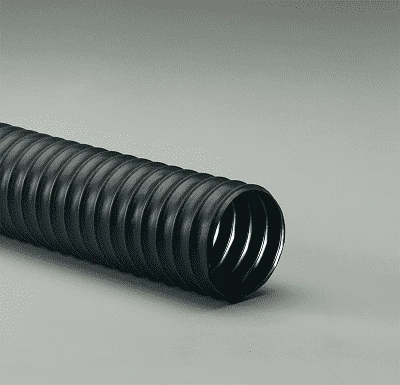

6-T-7SR-25 By Flexaust | #8351060025 | T-7SR Series | Air, Fume, Dust, And Material Handling Duct Hose | 6 Inch | 25ft
Original price was: $226.67.$99.99Current price is: $99.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SPECIFICATIONS
| Applications: | Aluminum Refractory, Cotton Picking | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Black thermoplastic rubber |
| Reinforcement: | coated super reinforced non-woven polyester fabric hose with a spring steel wire helix | Cover: | N/A |
| Temperature Range: | -50 deg. F to 285 deg. F Intermittent to 325 deg. | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
| |||
| Part Number 25 ft Reels | Part Number 50 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight – 25ft (Lbs/Ft) | Weight – 50ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|---|---|
| T-7SR 2in | T-7SR 2in | 2″ | .020″ | 2.75″ | 3:1 | 29 | 50 | 5.5 lbs | 11 lbs |
| T-7SR 2.25in | T-7SR 2.25in | 2.25″ | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| T-7SR 2.5in | T-7SR 2.5in | 2.5″ | .020″ | 2.8″ | 3:1 | 29 | 30 | 6.5 lbs | 13 lbs |
| T-7SR 3in | T-7SR 3in | 3″ | .020″ | 3″ | 3:1 | 29 | 29 | 8.25 lbs | 16.5 lbs |
| T-7SR 3.5in | T-7SR 3.5in | 3.5″ | .020″ | 3.2″ | 4:1 | 29 | 27 | 10 lbs | 20 lbs |
| T-7SR 4in | T-7SR 4in | 4″ | .020″ | 3.5″ | 4:1 | 29 | 25 | 12.5 lbs | 25 lbs |
| T-7SR 4.5in | T-7SR 4.5in | 4.5″ | .020″ | 4″ | 4:1 | 29 | 23 | 13.75 lbs | 27.5 lbs |
| T-7SR 5in | T-7SR 5in | 5″ | .020″ | 5″ | 4:1 | 29 | 22 | 15.75 lbs | 31.5 lbs |
| T-7SR 5.5in | T-7SR 5.5in | 5.5″ | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| T-7SR 6in | T-7SR 6in | 6″ | .020″ | 6″ | 4:1 | 14 | 16 | 17.5 lbs | 35 lbs |
| T-7SR 7in | T-7SR 7in | 7″ | .020″ | 7″ | 4:1 | 10 | 14 | 21.25 | 42.5 |
| T-7SR 8in | T-7SR 8in | 8″ | .020″ | 7.5″ | 4:1 | 8 | 12 | 25 lbs | 50 lbs |
| T-7SR 9in | T-7SR 9in | 9″ | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| T-7SR 10in | T-7SR 10in | 10″ | .020″ | 9″ | 4:1 | 7 | 9 | 31.25 lbs | 62.5 lbs |
| T-7SR 12in | T-7SR 12in | 12″ | .020″ | 10″ | 4:1 | 4 | 8 | 43.75 lbs | 87.5 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
