58100-4-M8x1 By AIGNEP | 58 Series | Fixed Elbow | Grease Fitting | 4 Mm Tube X Male M8x1 | 90° Elbow | Pack Of 10

58100-4-M8x1 By AIGNEP | 58 Series | Fixed Elbow | Grease Fitting | 4 Mm Tube X Male M8x1 | 90° Elbow | Pack Of 10 - Image 2

58100-4-M8x1 By AIGNEP | 58 Series | Fixed Elbow | Grease Fitting | 4 Mm Tube X Male M8x1 | 90° Elbow | Pack Of 10

Original price was: $20.00.Current price is: $14.00.

SKU: AG9ZZ 7751584219301 Categories: Adapters, Adapters & More Tags: 4 mm Tube x Male M8x1, 58 Series, Collection-lvl1_All Hose Ends, Collection-lvl2_Adapters and More, Collection-lvl3_Grease Fittings, Fixed Elbow, Grease Fitting, Matrixify2nd50kProducts

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Fixed Elbow – Grease Fitting

Pressure Rating: 0-435 PSI for air (0-2175 PSI for fluids)
Temperature Range: -22 ° F – 302 ° F
Tubing Compatibility: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP
Media: Compressed Air, Water, Oil, Grease
Body: Nickel Plated Brass
Thread Seal: HNBR

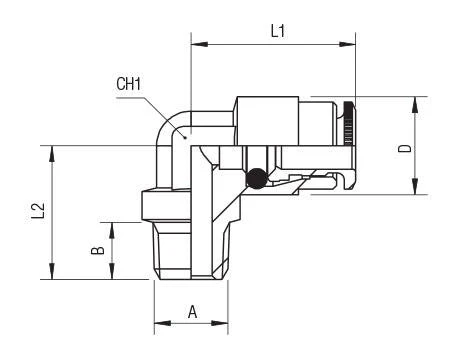

Tube	A	B	L1	L2	CH1	D
58100-4-M6x1	4 mm	M6 x 1	6 mm	18 mm	15 mm	8 mm	10.5 mm
58100-4-M8x1	4 mm	M8 x 1	6 mm	18 mm	15 mm	8 mm	10.5 mm
58100-4-M10x1	4 mm	M10 x 1	6.5 mm	18 mm	15 mm	8 mm	10.5 mm
58100-4-1/8	4 mm	1/8″	7.5 mm	18 mm	15 mm	8 mm	10.5 mm
58100-6-M6x1	6 mm	M6 x 1	6 mm	21 mm	17 mm	10 mm	13 mm
58100-6-M8x1	6 mm	M8 x 1	6 mm	21 mm	17 mm	10 mm	13 mm
58100-6-M10x1	6 mm	M10 x 1	6.5 mm	21 mm	17 mm	10 mm	13 mm
58100-6-1/8	6 mm	1/8″	7.5 mm	21 mm	17.5 mm	10 mm	13 mm
