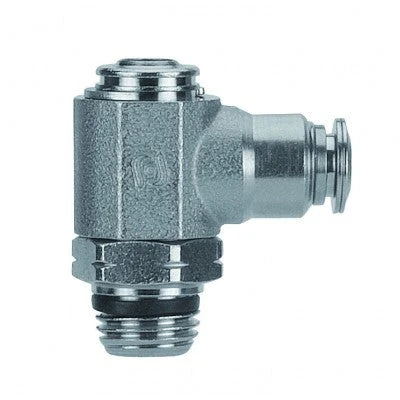

57910-10-3/8" AIGNEP | Functional (Flow Controls) Series | Flow Control | 10mm Tube X 3/8" Swift-Fit Male | Metal Release Collet | Flow In Screw Adjustment

57910-10-3/8" AIGNEP | Functional (Flow Controls) Series | Flow Control | 10mm Tube X 3/8" Swift-Fit Male | Metal Release Collet | Flow In Screw Adjustment - Image 2

57910-10-3/8″ AIGNEP | Functional (Flow Controls) Series | Flow Control | 10mm Tube X 3/8″ Swift-Fit Male | Metal Release Collet | Flow In Screw Adjustment

Original price was: $16.87.Current price is: $11.81.

SKU: AG9ZZ 8471535747237 Categories: Adapters & More, Valves Tags: 12mm Tube x 3/8" Swift-Fit Male, Collection-lvl1_All Hose Accessories, Collection-lvl2_Valves, Collection-lvl3_Needle and Flow Control Valves, Created in 2024, Flow Control, Flow In Screw Adjustment, Functional (Flow Controls) Series, JD052722-00, Matrixify2nd50kProducts, Metal Release Collet

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Metric Tube Flow Control (IN)

Pressure Rating: Vacuum – 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Nickel Plated Brass
Thread Seal: NBR 70

Thread Type: SWIFTFIT

Product Number	Tube	A	B	D	L1	L2	CH
57910-4-M5	4 mm	M5	4 mm	10 mm	19 mm	29.5 mm	8 mm
57910-4-1/8	4 mm	1/8″	5.5 mm	10 mm	21 mm	31 mm	14 mm
57910-5-M5	5 mm	M5	4 mm	12.5 mm	20 mm	29.5 mm	8 mm
57910-5-1/8	5 mm	1/8″	5.5 mm	12.5 mm	21.5 mm	31 mm	14 mm
57910-5-1/4	5 mm	1/4″	7 mm	12.5 mm	24.5 mm	36.5 mm	17 mm
57910-6-M5	6 mm	M5	4 mm	12.5 mm	20.5 mm	29.5 mm	8 mm
57910-6-1/8	6 mm	1/8″	5.5 mm	12.5 mm	22.5 mm	31 mm	14 mm
57910-6-1/4	6 mm	1/4″	7 mm	12.5 mm	25 mm	36.5 mm	17 mm
57910-8-1/8	8 mm	1/8″	5.5 mm	14 mm	24 mm	31 mm	14 mm
57910-8-1/4	8 mm	1/4″	7 mm	14 mm	26 mm	36.5 mm	17 mm
57910-8-3/8	8 mm	3/8″	7.5 mm	14 mm	28.5 mm	42.5 mm	20 mm
57910-10-1/4	10 mm	1/4″	7 mm	17 mm	28.5 mm	36.5 mm	17 mm
57910-10-3/8	10 mm	3/8″	7.5 mm	17 mm	30.5 mm	42.5 mm	20 mm
57910-12-3/8	12 mm	3/8″	7.5 mm	21.5 mm	32.5 mm	42.5 mm	20 mm
57910-12-1/2	12 mm	1/2″	9 mm	21.5 mm	35 mm	47 mm	24 mm
57910-14-1/2	14 mm	1/2″	9 mm	21.5 mm	35.5 mm	47 mm	24 mm
