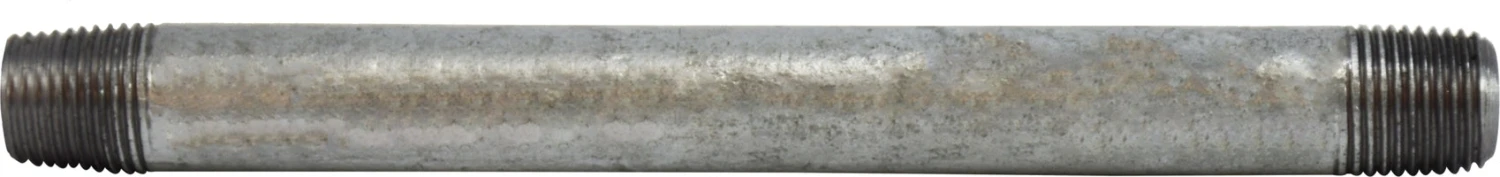

56006 By Midland | Schedule 40 Welded Nipple | 1/8″ Diameter X 3-1/2″ Length | Galvanized Steel

Original price was: $12.00.Current price is: $8.40.

SKU: AG9ZZ 8067332702373 Categories: Adapters, Adapters & More Tags: 1/8" Diameter, Collection-lvl1_All Hose Ends, Collection-lvl2_Adapters and More, Collection-lvl3_Industrial Adapters, Galvanized Steel, Male Pipe x Male Pipe, Matrixify2nd50kProducts, Midland Industries, Nipples & Fittings, Schedule 40 Welded Nipples

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Features:
All pipe is hydrostatic tested. Galvanized Zinc coating applied by hot dipped. Temp Rating: -200°F to 150°F Wall Thickness: 0.068″ Grade B Test Pressure: 700 PSI Thread Length 0.39″
Cutting Procedure:
All pipe is roller cut. A visual inspection of seams, excessive galvanizing, mid-welds, poor galvanizing, bends, roundness, under and over weight of the pipe is made at the time it is cut. This is done for every length of pipe. Pipe lengths are cut to a tolerance of + or – 1/16″ of the actual length.
Threading Procedure:
All pipe is chaser thread cut to American Standard Tapered Pipe Thread standards. This is 3/4″ taper per foot. Pipe is visually inspected for roundness of threads and other visual faults as it is removed from the threading machine.
Specifications:
Product complies with ASTM A-53, A-733 and ANSI B1.20.1 for threading, dimensions and pipe specifications. Pipe: Complies with ASTM A-53 mill tested schedule 40 and 80 for both Welded & Seamless Meets ANSI B36.1. Galvanized pipe complies with ASTM A-123, NSF approved, RoHS compliant.

Part Number	Length	Approx. Weight (Lbs.)
56001 (56-001)	3/4″ (Close)	0.02
56002 (56-002)	1-1/2″	0.03
56003 (56-003)	2″	0.04
56004 (56-004)	2-1/2″	0.06
56005 (56-005)	3″	0.07
56006 (56-006)	3-1/2″	0.07
56007 (56-007)	4″	0.09
56008 (56-008)	4-1/2″	0.10
56009 (56-009)	5″	0.11
56010 (56-010)	5-1/2″	0.12
56011 (56-011)	6″	0.13
56012 (56-012)	7″	0.15
56013 (56-013)	8″	0.18
56014 (56-014)	9″	0.21
56015 (56-015)	10″	0.25
56017 (56-017)	12″	0.29
