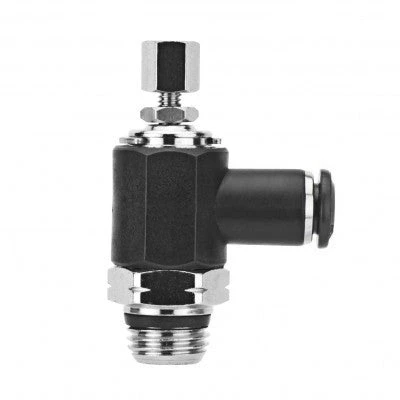

55925-4-1/8 By AIGNEP | Functional (Flow Controls) Series | Needle Valve | 8mm Tube X 3/8" Swift-Fit Male

55925-4-1/8 By AIGNEP | Functional (Flow Controls) Series | Needle Valve | 8mm Tube X 3/8" Swift-Fit Male - Image 2

55925-4-1/8 By AIGNEP | Functional (Flow Controls) Series | Needle Valve | 8mm Tube X 3/8″ Swift-Fit Male

Original price was: $12.00.Current price is: $8.40.

SKU: AG9ZZ 7711786795173 Category: Adapters & More Tags: 8mm Tube x 3/8" Swift-Fit Male, Collection-lvl1_All Hose Accessories, Collection-lvl2_Valves, Collection-lvl3_Needle and Flow Control Valves, Functional (Flow Controls) Series, JD052722-00, Matrixify2nd50kProducts, Needle Valve

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Metric Tube Needle Valve

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-160 ? F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Nylon
Thread Seal: NBR 70

Thread Type: SWIFTFIT

Product Number	Tube	A	B	L1	L2 Min	L2 Max	CH	Code
55925-4-M5	4 mm	M5	4 mm	19.5 mm	39.5 mm	43.5 mm	8 mm	B
55925-4-1/8	4 mm	1/8″	5.5 mm	21.5 mm	44 mm	49 mm	14 mm	B
55925-5-M5	5 mm	M5	4 mm	20.5 mm	39.5 mm	43.5 mm	8 mm	B
55925-5-1/8	5 mm	1/8″	5.5 mm	22.5 mm	44 mm	49 mm	14 mm	B
55925-5-1/4	5 mm	1/4″	7 mm	25 mm	48.5 mm	55 mm	17 mm	B
55925-6-M5	6 mm	M5	4 mm	21 mm	39.5 mm	43.5 mm	8 mm	B
55925-6-1/8	6 mm	1/8″	5.5 mm	23 mm	44 mm	49 mm	14 mm	B
55925-6-1/4	6 mm	1/4″	7 mm	25.5 mm	48.5 mm	55 mm	17 mm	B
55925-8-1/8	8 mm	1/8″	5.5 mm	23.5 mm	44 mm	49 mm	14 mm	B
55925-8-1/4	8 mm	1/4″	7 mm	26 mm	48.5 mm	55 mm	17 mm	B
55925-8-3/8	8 mm	3/8″	8.5 mm	27.5 mm	56 mm	65 mm	20 mm	B
55925-10-3/8	10 mm	3/8″	8.5 mm	30.5 mm	56 mm	65 mm	20 mm	B
55925-12-3/8	12 mm	3/8″	8.5 mm	32.5 mm	56 mm	65 mm	20 mm	B
55925-12-1/2	12 mm	1/2″	10 mm	35 mm	62 mm	69 mm	24 mm	B
