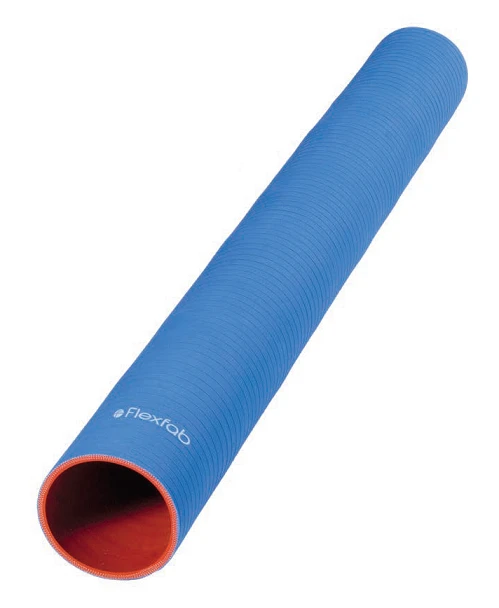

5581-087 By FlexFab | Series 5581 | 4-ply Coolant Hose | 0.88" ID | 1.27" OD | Blue | 3ft Length

5581-087 By FlexFab | Series 5581 | 4-ply Coolant Hose | 0.88″ ID | 1.27″ OD | Blue | 3ft Length

Original price was: $36.73.Current price is: $25.71.

SKU: AG9ZZ 1481946071076 Categories: , Tags: , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Overview:
  • Available in a Blue or Green Cover
  • Comes in 3′ Lengths
  • 12′ Lengths Also Available
Construction:
  • Silicone hose with 4-plies of Polyester Reinforcement
Specifications:
  • Meets or exceeds the operating requirements of SAE J20 R1 Class A
  • Meets or exceeds the operating requirements of TMC RP303B Class I Grade II
  • Temperature range is -65°F (-54°C) to +350°F (+177°C)
  • Standard Wall Thickness is .170″/.220″
  • Working pressure is 1/3 of the burst pressure
Applications:
  • For heavy duty pressure connections in hostile engine environments
  • Resists hardening, cracking, cold leaks, aging, and many chemicals
  • Ideal for extreme temperature and various pressure ranges where high performance levels are required
Blue Series Part Number (3ft & 12ft) Green Series Part Number (3ft & 12ft) Inside Diameter Outside Diameter Actual Burst Pressure Burst Pressure Weight Clamp
SAE J20 R1 TMC
5581-038 & 5581-038X12 5501-038 0.38″ 0.77″ 600 PSI 425 PSI 125 PSI 0.16 lbs./ft FLX2582-0006
5581-050 & 5581-050X12 5501-050 & 5501-050X12 0.50″ 0.89″ 600 PSI 425 PSI 125 PSI 0.20 lbs./ft FLX2582-0008
5581-062 & 5581-062X12 5501-062 & 5501-062X12 0.63″ 1.02″ 585 PSI 425 PSI 125 PSI 0.24 lbs./ft FLX2582-0010
5581-075 & 5581-075X12 5501-075 & 5501-075X12 0.75″ 1.14″ 575 PSI 325 PSI 125 PSI 0.29 lbs./ft FLX2582-0012
5581-087 & 5581-087X12 5501-087 & 5501-087X12 0.88″ 1.27″ 560 PSI 300 PSI 125 PSI 0.34 lbs./ft FLX2582-0016
5581-100 & 5581-100X12 5501-100 & 5501-100X12 1.00″ 1.39″ 550 PSI 300 PSI 125 PSI 0.39 lbs./ft FLX2582-0016
FLX2584-0175
5581-112 & 5581-112X12 5501-112 & N/A 1.13″ 1.52″ 525 PSI 300 PSI 125 PSI 0.44 lbs./ft FLX2582-0020
FLX2584-0175
5581-125 & 5581-125X12 5501-125 & 5501-125X12 1.25″ 1.64″ 500 PSI 275 PSI 125 PSI 0.49 lbs./ft FLX2582-0020
FLX2584-0212
5581-138 & 5581-138X12 5501-138 & N/A 1.38″ 1.77″ 475 PSI 250 PSI 125 PSI 0.54 lbs./ft FLX2582-0024
FLX2584-0212
5581-150 & 5581-150X12 5501-150 & 5501-150X12 1.50″ 1.89″ 450 PSI 250 PSI 125 PSI 0.59 lbs./ft FLX2582-0024
FLX2584-0212
5581-162 & 5581-162X12 5501-162 & N/A 1.63″ 2.02″ 425 PSI 225 PSI 125 PSI 0.63 lbs./ft FLX2582-0028
FLX2584-0262
5581-175 & 5581-175X12 5501-175 & 5501-175X12 1.75″ 2.14″ 400 PSI 225 PSI 125 PSI 0.68 lbs./ft FLX2582-0028
FLX2584-0262
5581-187 & 5581-187X12 5501-187 & N/A 1.88″ 2.27″ 400 PSI 200 PSI 100 PSI 0.73 lbs./ft FLX2582-0032
FLX2584-0262
5581-200 & 5581-200X12 5501-200 & 5501-200X12 2.00″ 2.39″ 400 PSI 200 PSI 100 PSI 0.78 lbs./ft FLX2582-0032
FLX2584-0262
5581-212 & 5581-212X12 5501-212 & N/A 2.13″ 2.52″ 375 PSI 175 PSI 100 PSI 0.83 lbs./ft FLX2582-0036
FLX2584-0312
5581-225 & 5581-225X12 5501-225 & 5501-225X12 2.25″ 2.64″ 350 PSI 175 PSI 100 PSI 0.88 lbs./ft FLX2582-0036
FLX2584-0312
5581-238 & 5581-238X12 5501-238 & N/A 2.38″ 2.77″ 325 PSI 150 PSI 100 PSI 0.93 lbs./ft FLX2582-0040
FLX2584-0312
5581-250 & 5581-250X12 5501-250 & 5501-250X12 2.50″ 2.89″ 300 PSI 150 PSI 100 PSI 0.98 lbs./ft FLX2582-0040
FLX2584-0312
5581-262 & 5581-262X12 5501-262 & N/A 2.63″ 3.02″ 285 PSI 125 PSI 100 PSI 1.02 lbs./ft FLX2582-0044
FLX2584-0362
5581-275 & 5581-275X12 5501-275 & 5501-275X12 2.75″ 3.14″ 275 PSI 125 PSI 100 PSI 1.07 lbs./ft FLX2582-0044
FLX2584-0362
5581-287 & 5581-287X12 5501-287 & N/A 2.88″ 3.27″ 250 PSI 100 PSI 100 PSI 1.12 lbs./ft FLX2582-0048
FLX2584-0362
5581-300 & 5581-300X12 5501-300 & 5501-300X12 3.00″ 3.39″ 250 PSI 100 PSI 100 PSI 1.17 lbs./ft FLX2582-0048
FLX2584-0362
5581-312 & 5581-312X12 5501-312 & N/A 3.13″ 3.52″ 225 PSI 75 PSI 100 PSI 1.22 lbs./ft FLX2582-0052
FLX2584-0412
5581-325 & 5581-325X12 5501-325 & N/A 3.25″ 3.64″ 225 PSI 75 PSI 100 PSI 1.27 lbs./ft FLX2582-0052
FLX2584-0412
5581-338 & 5581-338X12 5501-338 & N/A 3.38″ 3.77″ 200 PSI 75 PSI 100 PSI 1.32 lbs./ft FLX2582-0056
FLX2584-0412
5581-350 & 5581-350X12 5501-350 & 5501-350X12 3.50″ 3.89″ 200 PSI 75 PSI 100 PSI 1.37 lbs./ft FLX2582-0056
FLX2584-0412
5581-375 & 5581-375X12 5501-375 & N/A 3.75″ 4.14″ 175 PSI 50 PSI 100 PSI 1.46 lbs./ft FLX2582-0060
FLX2584-0462
5581-400 & 5581-400X12 5501-400 & 5501-400X12 4.00″ 4.39″ 150 PSI 50 PSI 100 PSI 1.56 lbs./ft FLX2582-0064
FLX2584-0462
5581-450 & 5581-450X12 5501-450 & N/A 4.50″ 4.89″ 150 PSI N/A N/A 1.76 lbs./ft FLX2582-0072
FLX2584-0512
5581-500 & 5581-500X12 5501-500 & N/A 5.00″ 5.39″ 125 PSI N/A N/A 1.95 lbs./ft FLX2584-0562
5581-550 & 5581-550X12 5501-550 & N/A 5.50″ 5.89″ 100 PSI N/A N/A 2.16 lbs./ft FLX2584-0612
5581-600 & N/A 5501-600 & N/A 6.00″ 6.39″ 100 PSI N/A N/A 2.34 lbs./ft FLX2584-0662

*Specifications for reference only. Specific test data available on request.
