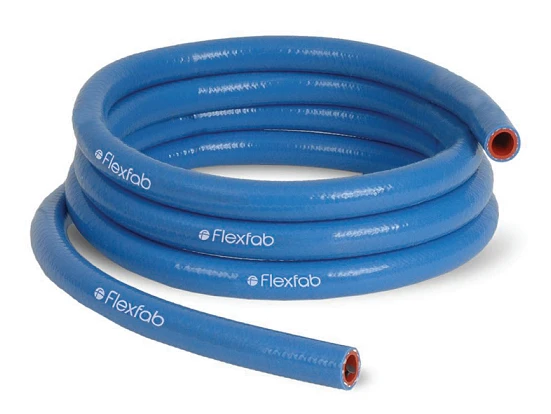

5526-050×25 By FlexFab | Series 5526 | 1-ply Standard Heater Hose | 0.50″ ID | 0.83″ OD | Blue | 25ft Boxes

Original price was: $75.20.Current price is: $52.64.

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Overview:
Blue Cover, with Nylon Fiber Reinforcement Comes in 25′ and 50ft Boxes Available in longer lengths on standard wooden spools NOTE: Continuous lengths are not guaranteed, if continuous lengths are required please contact customer service for price and availability
Construction:
Silicone hose with 1-ply of Nylon Fiber Reinforcement
Specifications:
Meets or exceeds the operating requirements of SAE J20 R3 Class A Meets or exceeds the operating requirements of TMC RP303B Class I Grade II Temperature range is -65°F (-54°C) to +350°F (+177°C) Standard Wall Thickness is .140″/.170″ Working pressure is 1/3 of the burst pressure Bend radius is 5 times the ID of the hose
Applications:
Resistant to coolant additives Resists hardening, cracking, cold leaks, aging, and many chemicals Ideal for extreme temperature and various pressure ranges where high performance levels are required

Part Number	Inside Diameter	Outside Diameter	Actual Burst Pressure	Burst Pressure		Weight	Overall Length	Clamp
Part Number	Inside Diameter	Outside Diameter	Actual Burst Pressure	SAE J20 R1	TMC	Weight	Overall Length	Clamp
5526-025×25	0.25″	0.58″	320 PSI	250 PSI	125 PSI	0.111 lbs./ft	25ft Box	–
5526-025×50	0.25″	0.58″	320 PSI	250 PSI	125 PSI	0.111 lbs./ft	50ft Box	–
5526-025×250	0.25″	0.58″	320 PSI	250 PSI	125 PSI	0.111 lbs./ft	250ft Spool	–
5526-025×800	0.25″	0.58″	320 PSI	250 PSI	125 PSI	0.111 lbs./ft	800ft Spool	–
5526-031×25	0.31″	0.64″	310 PSI	250 PSI	125 PSI	0.128 lbs./ft	25ft Box	–
5526-031×50	0.31″	0.64″	310 PSI	250 PSI	125 PSI	0.128 lbs./ft	50ft Box	–
5526-031×600	0.31″	0.64″	310 PSI	250 PSI	125 PSI	0.128 lbs./ft	600ft Spool	–
5526-038×25	0.38″	0.71″	310 PSI	250 PSI	125 PSI	0.145 lbs./ft	25ft Box	FLX2582-0006
5526-038×50	0.38″	0.71″	310 PSI	250 PSI	125 PSI	0.145 lbs./ft	50ft Box	FLX2582-0006
5526-038×250	0.38″	0.71″	310 PSI	250 PSI	125 PSI	0.145 lbs./ft	250ft Spool	FLX2582-0006
5526-038×600	0.38″	0.71″	310 PSI	250 PSI	125 PSI	0.145 lbs./ft	600ft Spool	FLX2582-0006
5526-050×25	0.50″	0.83″	310 PSI	250 PSI	125 PSI	0.181 lbs./ft	25ft Box	FLX2582-0006
5526-050×50	0.50″	0.83″	310 PSI	250 PSI	125 PSI	0.181 lbs./ft	50ft Box	FLX2582-0006
5526-050×250	0.50″	0.83″	310 PSI	250 PSI	125 PSI	0.181 lbs./ft	250ft Spool	FLX2582-0006
5526-050×500	0.50″	0.83″	310 PSI	250 PSI	125 PSI	0.181 lbs./ft	500ft Spool	FLX2582-0006
5526-062×25	0.63″	0.96″	300 PSI	250 PSI	125 PSI	0.216 lbs./ft	25ft Box	FLX2582-0008
5526-062×50	0.63″	0.96″	300 PSI	250 PSI	125 PSI	0.216 lbs./ft	50ft Box	FLX2582-0008
5526-062×250	0.63″	0.96″	300 PSI	250 PSI	125 PSI	0.216 lbs./ft	250ft Spool	FLX2582-0008
5526-062×400	0.63″	0.96″	300 PSI	250 PSI	125 PSI	0.216 lbs./ft	400ft Spool	FLX2582-0008
5526-075×25	0.75″	1.08″	300 PSI	200 PSI	125 PSI	0.25 lbs./ft	25ft Box	FLX2582-0010
5526-075×50	0.75″	1.08″	300 PSI	200 PSI	125 PSI	0.25 lbs./ft	50ft Box	FLX2582-0010
5526-075×250	0.75″	1.08″	300 PSI	200 PSI	125 PSI	0.25 lbs./ft	250ft Spool	FLX2582-0010
5526-075×300	0.75″	1.08″	300 PSI	200 PSI	125 PSI	0.25 lbs./ft	300ft Spool	FLX2582-0010
5526-087×25	0.88″	1.21″	250 PSI	175 PSI	125 PSI	0.287 lbs./ft	25ft Box	FLX2582-0012
5526-087×50	0.88″	1.21″	250 PSI	175 PSI	125 PSI	0.287 lbs./ft	50ft Box	FLX2582-0012
5526-087×200	0.88″	1.21″	250 PSI	175 PSI	125 PSI	0.287 lbs./ft	200ft Spool	FLX2582-0012
5526-100×25	1.00″	1.33″	250 PSI	175 PSI	125 PSI	0.324 lbs./ft	25ft Box	FLX2582-0016
5526-100×50	1.00″	1.33″	250 PSI	175 PSI	125 PSI	0.324 lbs./ft	50ft Box	FLX2582-0016
5526-100×200	1.00″	1.33″	250 PSI	175 PSI	125 PSI	0.324 lbs./ft	200ft Spool	FLX2582-0016
5526-125×25	1.25″	1.58″	200 PSI	175 PSI	125 PSI	0.385 lbs./ft	25ft Box	FLX2582-0020
5526-125×50	1.25″	1.58″	200 PSI	175 PSI	125 PSI	0.385 lbs./ft	50ft Box	FLX2582-0020
5526-125×150	1.25″	1.58″	200 PSI	175 PSI	125 PSI	0.385 lbs./ft	150ft Spool	FLX2582-0020
