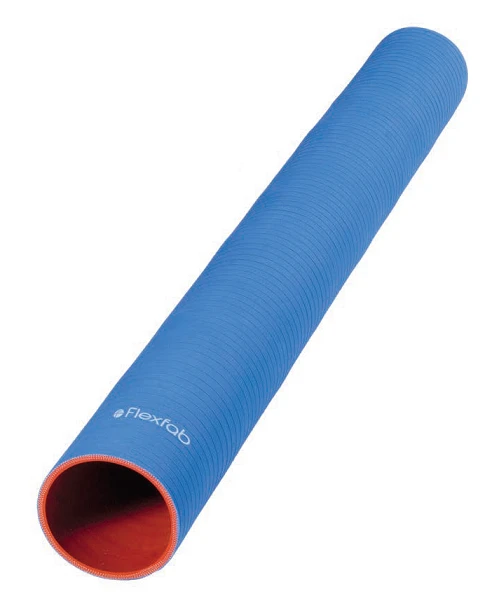

5515-038 By FlexFab | Series 5515 | 3-ply Coolant Hose | 0.38″ ID | 0.70″ OD | Blue | 3ft Length

Original price was: $24.15.Current price is: $16.91.

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Overview:
Available in a Blue or Green Cover Comes in 3′ Lengths 12′ Lengths Also Available
Construction:
Silicone hose with 3-plies of Polyester Reinforcement
Specifications:
Meets or exceeds the operating requirements of SAE J20 R1 Class A Meets or exceeds the operating requirements of TMC RP303B Class I Grade II Temperature range is -65°F (-54°C) to +350°F (+177°C) Custom Wall Thickness is .140″/.190″ Working pressure is 1/3 of the burst pressure
Applications:
For heavy duty pressure connections in hostile engine environments Resists hardening, cracking, cold leaks, aging, and many chemicals Ideal for extreme temperature and various pressure ranges where high performance levels are required

Blue Series Part Number (3ft & 12ft)	Green Series Part Number (3ft & 12ft)	Inside Diameter	Outside Diameter	Actual Burst Pressure	Burst Pressure		Weight	Clamp
Blue Series Part Number (3ft & 12ft)	Green Series Part Number (3ft & 12ft)	Inside Diameter	Outside Diameter	Actual Burst Pressure	SAE J20 R1	TMC	Weight	Clamp
5515-038 & 5515-038X12	5500-038 & N/A	0.38″	0.70″	500 PSI	425 PSI	125 PSI	0.12 lbs./ft	–
5515-050 & 5515-050X12	5500-050 & N/A	0.50″	0.82″	500 PSI	425 PSI	125 PSI	0.16 lbs./ft	FLX2582-0006
5515-062 & 5515-062X12	5500-062 & N/A	0.63″	0.95″	485 PSI	425 PSI	125 PSI	0.20 lbs./ft	FLX2582-0010
5515-075 & 5515-075X12	5500-075 & N/A	0.75″	1.07″	475 PSI	325 PSI	125 PSI	0.24 lbs./ft	FLX2582-0012
5515-087 & 5515-087X12	5500-087 & N/A	0.88″	1.20″	465 PSI	300 PSI	125 PSI	0.28 lbs./ft	FLX2582-0012
5515-100 & 5515-100X12	5500-100 & N/A	1.00″	1.32″	450 PSI	300 PSI	125 PSI	0.32 lbs./ft	FLX2582-0016
5515-112 & 5515-112X12	5500-112 & 5500-112X12	1.13″	1.45″	435 PSI	300 PSI	125 PSI	0.36 lbs./ft	FLX2582-0016 FLX2584-0175
5515-125 & 5515-125X12	5500-125 & 5500-125X12	1.25″	1.57″	425 PSI	275 PSI	125 PSI	0.40 lbs./ft	FLX2582-0020 FLX2584-0175
5515-138 & 5515-138X12	5500-138 & N/A	1.38″	1.70″	400 PSI	250 PSI	125 PSI	0.44 lbs./ft	FLX2582-0020 FLX2584-0212
5515-150 & 5515-150X12	5500-150 & 5500-150X12	1.50″	1.82″	375 PSI	250 PSI	125 PSI	0.48 lbs./ft	FLX2582-0024 FLX2584-0212
5515-162 & 5515-162X12	5500-162 & N/A	1.63″	1.95″	350 PSI	225 PSI	125 PSI	0.52 lbs./ft	FLX2582-0024 FLX2584-0212
5515-175 & 5515-175X12	5500-175 & N/A	1.75″	2.07″	300 PSI	225 PSI	125 PSI	0.56 lbs./ft	FLX2582-0028 FLX2584-0262
5515-187 & 5515-187X12	5500-187 & N/A	1.88″	2.20″	250 PSI	200 PSI	100 PSI	0.60 lbs./ft	FLX2582-0032 FLX2584-0262
5515-200 & 5515-200X12	5500-200 & 5500-200X12	2.00″	2.32″	250 PSI	200 PSI	100 PSI	0.64 lbs./ft	FLX2582-0032 FLX2584-0262
5515-212 & 5515-212X12	5500-212 & N/A	2.13″	2.45″	235 PSI	175 PSI	100 PSI	0.68 lbs./ft	FLX2582-0032 FLX2584-0262
5515-225 & 5515-225X12	5500-225 & N/A	2.25″	2.57″	225 PSI	175 PSI	100 PSI	0.72 lbs./ft	FLX2582-0036 FLX2584-0312
5515-238 & 5515-238X12	5500-238 & N/A	2.38″	2.70″	210 PSI	150 PSI	100 PSI	0.76 lbs./ft	FLX2582-0040 FLX2584-0312
5515-250 & 5515-250X12	5500-250 & N/A	2.50″	2.82″	200 PSI	150 PSI	100 PSI	0.80 lbs./ft	FLX2582-0040 FLX2584-0312
5515-262 & 5515-262X12	5500-262 & N/A	2.63″	2.95″	200 PSI	125 PSI	100 PSI	0.84 lbs./ft	FLX2582-0040 FLX2584-0312
5515-275 & 5515-275X12	5500-275 & N/A	2.75″	3.07″	200 PSI	125 PSI	100 PSI	0.88 lbs./ft	FLX2582-0044 FLX2584-0362
5515-287 & 5515-287X12	5500-287 & N/A	2.88″	3.20″	200 PSI	100 PSI	100 PSI	0.92 lbs./ft	FLX2582-0044 FLX2584-0362
5515-300 & 5515-300X12	5500-300 & N/A	3.00″	3.32″	200 PSI	100 PSI	100 PSI	0.96 lbs./ft	FLX2582-0048 FLX2584-0362
5515-312 & 5515-312X12	5500-312 & N/A	3.13″	3.45″	175 PSI	75 PSI	100 PSI	1.00 lbs./ft	FLX2582-0048 FLX2584-0362
5515-325 & 5515-325X12	5500-325 & N/A	3.25″	3.57″	175 PSI	75 PSI	100 PSI	1.04 lbs./ft	FLX2582-0052 FLX2584-0412
5515-338 & 5515-338X12	5500-338 & N/A	3.38″	3.70″	150 PSI	75 PSI	100 PSI	1.08 lbs./ft	FLX2582-0052 FLX2584-0412
5515-350 & 5515-350X12	5500-350 & N/A	3.50″	3.82″	150 PSI	75 PSI	100 PSI	1.12 lbs./ft	FLX2582-0056 FLX2584-0412
5515-375 & 5515-375X12	5500-375 & N/A	3.75″	4.07″	135 PSI	50 PSI	100 PSI	1.20 lbs./ft	FLX2582-0060 FLX2584-0412
5515-387 & 5515-387X12	5500-387 & N/A	3.88″	4.20″	125 PSI	50 PSI	100 PSI	1.24 lbs./ft	FLX2582-0060 FLX2584-0462
5515-400 & 5515-400X12	5500-400 & N/A	4.00″	4.32″	125 PSI	50 PSI	100 PSI	1.28 lbs./ft	FLX2582-0072 or FLX2584-0462
5515-450 & 5515-450X12	5500-450 & N/A	4.50″	4.82″	100 PSI	N/A	N/A	1.44 lbs./ft	FLX2582-0064 or FLX2584-0512
5515-500 & 5515-500X12	5500-500 & N/A	5.00″	5.32″	90 PSI	N/A	N/A	1.60 lbs./ft	FLX2584-0562
5515-550 & N/A	5500-550 & N/A	5.50″	5.82″	75 PSI	N/A	N/A	1.76 lbs./ft	FLX2584-0612
5515-600 & 5515-600X12	5500-600 & N/A	6.00″	6.32″	75 PSI	N/A	N/A	1.92 lbs./ft	FLX2584-0662
