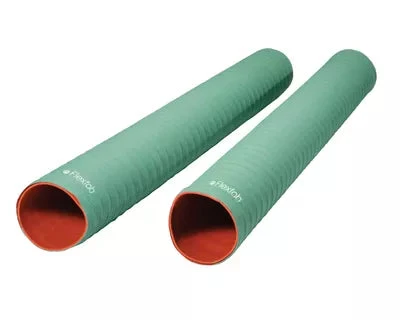

5508-200X12 By FlexFab | Series 5508 | 2-ply Wire Reinforced Coolant Hose | 2.00" X 2.42" OD | Green | 12ft Length

5508-200X12 By FlexFab | Series 5508 | 2-ply Wire Reinforced Coolant Hose | 2.00″ X 2.42″ OD | Green | 12ft Length

Original price was: $372.09.Current price is: $99.99.

SKU: AG9ZZ 8527266906277 Categories: , Tags: , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Overview:
  • Green Cover, 2-Ply Polyester Reinforced Hose with Helical Wire
  • Comes in 3′ Lengths
  • 12′ Lengths Also Available
Construction:
  • Silicone hose with 2 plies of Polyester Reinforcement, with Helical Wire
Specifications:
  • Meets or exceeds the operating requirements of SAE J20 R1 Class A
  • Temperature range is -65°F (-54°C) to +350°F (+177°C)
  • Wall thickness at hose ends exclusive of wire gauge .130″/.180″
  • Working pressure is 1/3 of the burst pressure
  • Negative pressure is – 10 PSI
Applications:
  • For heavy duty pressure connections in hostile engine environments
  • Resists hardening, cracking, cold leaks, aging, and many chemicals
  • Ideal for extreme temperature and various pressure ranges where high performance levels are required
  • For connections utilizing high vacuum and/or some forced curvature
Part Number (3ft & 12ft) Inside Diameter Outside Diameter Burst Pressure Max Neg. Bend Radius Weight
5508-050 & 5508-050X12 0.50″ 0.92″ 600 PSI 10 PSI 2.00″ 0.17 lbs./ft
5508-062 & 5508-062X12 0.63″ 1.05″ 600 PSI 10 PSI 2.25″ 0.21 lbs./ft
5508-075 & 5508-075X12 0.75″ 1.17″ 600 PSI 10 PSI 2.50″ 0.23 lbs./ft
5508-087 & 5508-087X12 0.88″ 1.30″ 550 PSI 10 PSI 2.75″ 0.26 lbs./ft
5508-100 & 5508-100X12 1.00″ 1.42″ 550 PSI 10 PSI 3.00″ 0.30 lbs./ft
5508-125 & 5508-125X12 1.25″ 1.67″ 525 PSI 10 PSI 3.50″ 0.36 lbs./ft
5508-150 & 5508-150X12 1.50″ 1.92″ 500 PSI 10 PSI 4.00″ 0.43 lbs./ft
5508-175 & 5508-175X12 1.75″ 2.17″ 475 PSI 10 PSI 4.50″ 0.51 lbs./ft
5508-200 & 5508-200X12 2.00″ 2.42″ 450 PSI 10 PSI 5.00″ 0.56 lbs./ft
5508-225 & 5508-225X12 2.25″ 2.67″ 400 PSI 10 PSI 5.50″ 0.65 lbs./ft
5508-250 & 5508-250X12 2.50″ 2.92″ 350 PSI 10 PSI 6.00″ 0.74 lbs./ft
5508-275 & 5508-275X12 2.75″ 3.17″ 325 PSI 10 PSI 6.50″ 0.79 lbs./ft
5508-300 & 5508-300X12 3.00″ 3.42″ 300 PSI 10 PSI 7.00″ 0.85 lbs./ft
5508-350 & 5508-350X12 3.50″ 3.92″ 275 PSI 10 PSI 8.00″ 1.09 lbs./ft
5508-400 & 5508-400X12 4.00″ 4.42″ 250 PSI 10 PSI 9″ 1.19 lbs./ft
5508-600 & N/A 6.00″ 6.42″ 125 PSI 10 PSI 13.00″ 1.84 lbs./ft

*Specifications for reference only. Specific test data available on request.
