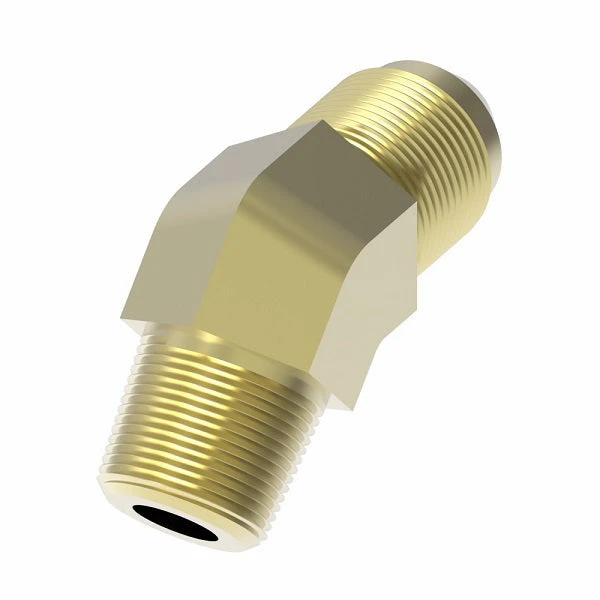

54X4 By Danfoss | Male Pipe/ SAE 45° Flare 45° Elbow Adapter | 1/8" Male NPTF X 1/4" Male SAE 45° Flare | Brass

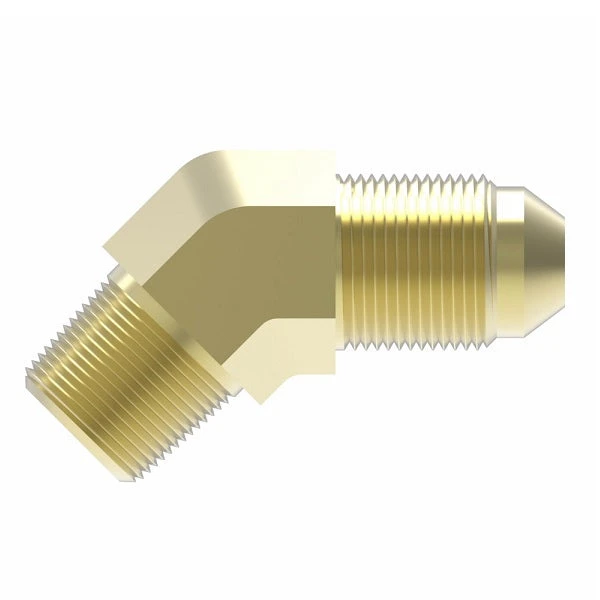

54X4 By Danfoss | Male Pipe/ SAE 45° Flare 45° Elbow Adapter | 1/8" Male NPTF X 1/4" Male SAE 45° Flare | Brass - Image 2

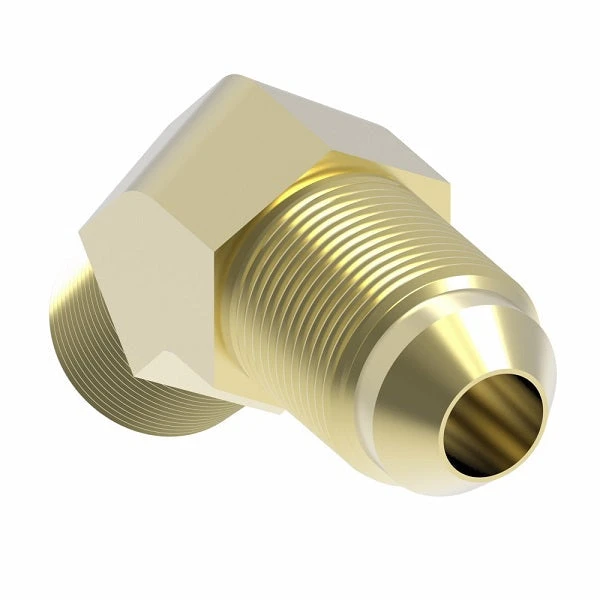

54X4 By Danfoss | Male Pipe/ SAE 45° Flare 45° Elbow Adapter | 1/8" Male NPTF X 1/4" Male SAE 45° Flare | Brass - Image 3

54X4 By Danfoss | Male Pipe/ SAE 45° Flare 45° Elbow Adapter | 1/8″ Male NPTF X 1/4″ Male SAE 45° Flare | Brass

Original price was: $12.00.Current price is: $8.40.

SKU: AG9ZZ 1476889542692 Categories: Adapters, Adapters & More Tags: 54 Series Eaton SAE 45 Degree Flare 45 Degree Male Elbow, All-categories, Collection-lvl1_All Hose Ends, Collection-lvl2_Ends for Special Hose Types, Collection-lvl3_Tube Fittings, Eaton Brass, Eaton SAE 45 Degree Flare, Ends-for-special-hose-types, Industrial Plastic Tubing, LegacyProductTypeReplacement_All Categories, Matrixify2nd50kProducts, PriceTeirs_Adapters

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Overview:
Danfoss brass tube fittings are made from high quality UNS CA-360 brass bar, and are precision machined to meet SAE standards and specifications.
Applications:
LP and natural gas, flammable liquids (special order), instrumentation, refrigeration, power steering, hydraulic and pneumatic systems.
Advantages:
Low cost and reusability. Long or short nut. Good vibration resistance – use long nut when greater vibration resistance is required.
Used With:
Copper, brass, aluminum and steel hydraulic tubing that can be flared.
Pressure:
Working pressure up to 2000 psi depending on tube size. Will withstand burst pressure of standard tubing – up to 5000 psi with bundyweld (double flared) and 3500 psi with copper tubing, depending on size.
Temperature Range:
-65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
Ref. SAE No. 010302 Listed by Underwriter’s Laboratories (available on special order) for flammable liquids, refrigeration and gas. Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).

Tube OD	1/8″	3/16″	1/4″	5/16″	3/8″	7/16″	1/2″	5/8″	3/4″
Thread Size	5/16-24	3/8-24	7/16-20	1/2-20	5/8-18	11/16-18	3/4-16	7/8-14	1-1/16-14


Brass Part Number	Brass with Sealant Part Number	Tube OD	Male NPTF	D	M	N
54X4	54X4Z	1/4″	1/8″	0.188″	0.67″	0.64″
54X4X4	–	1/4″	1/4″	0.188″	0.73″	0.87″
54X5	–	5/16″	1/8″	0.219″	0.78″	0.64″
54X6	54X6Z	3/8″	1/4″	0.283″	0.89″	0.86″
54X8	54X8Z	1/2″	3/8″	0.407″	1.06″	0.96″
54X8X8	–	1/2″	1/2″	0.406″	1.12″	1.17″
54X10x6	–	5/8″	3/8″	0.500″	1.23″	0.98″
54X10	–	5/8″	1/2″	0.500″	1.23″	1.17″
