Sale!

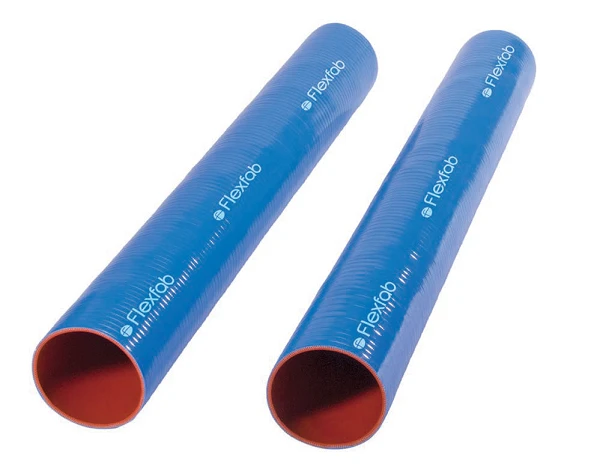

5415-112 By FlexFab | Series 5415 | 3-ply Glossy Coolant Hose | 1.13" ID | 1.45" OD | Blue | 3ft Length

5415-112 By FlexFab | Series 5415 | 3-ply Glossy Coolant Hose | 1.13″ ID | 1.45″ OD | Blue | 3ft Length

Original price was: $37.35.Current price is: $26.15.

SKU: AG9ZZ 1481951117348 Categories: , Tags: , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Overview:
  • Only Available in a Blue Cover
  • Comes in 3ft Lengths
Construction:
  • Silicone hose with 3-plies of Polyester Reinforcement
Specifications:
  • Meets or exceeds the operating requirements of SAE J20 R1 Class A
  • Meets or exceeds the operating requirements of TMC RP303B Class I Grade II
  • Temperature range is -65°F (-54°C) to +350°F (+177°C)
  • Custom Wall Thickness is .140″/.190″
  • Working pressure is 1/3 of the burst pressure
Applications:
  • For heavy duty pressure connections in hostile engine environments
  • Resists hardening, cracking, cold leaks, aging, and many chemicals
  • Ideal for extreme temperature and various pressure ranges where high performance levels are required
Blue Series
Part Number		 Inside
Diameter		 Outside
Diameter		 Actual Burst
Pressure		 Burst
Pressure		 Weight Clamp
SAE J20 R1 TMC
5415-038 0.38″ 0.70″ 500 PSI 425 PSI 125 PSI 0.12 lbs./ft –
5415-050 0.50″ 0.82″ 500 PSI 425 PSI 125 PSI 0.16 lbs./ft FLX2582-0006
5415-062 0.63″ 0.95″ 485 PSI 425 PSI 125 PSI 0.20 lbs./ft FLX2582-0010
5415-075 0.75″ 1.07″ 475 PSI 325 PSI 125 PSI 0.24 lbs./ft FLX2582-0012
5415-087 0.88″ 1.20″ 465 PSI 300 PSI 125 PSI 0.28 lbs./ft FLX2582-0012
5415-100 1.00″ 1.32″ 450 PSI 300 PSI 125 PSI 0.32 lbs./ft FLX2582-0016
5415-112 1.13″ 1.45″ 435 PSI 300 PSI 125 PSI 0.36 lbs./ft FLX2582-0016
FLX2584-0175
5415-125 1.25″ 1.57″ 425 PSI 275 PSI 125 PSI 0.40 lbs./ft FLX2582-0020
FLX2584-0175
5415-138 1.38″ 1.70″ 400 PSI 250 PSI 125 PSI 0.44 lbs./ft FLX2582-0020
FLX2584-0212
5415-150 1.50″ 1.82″ 375 PSI 250 PSI 125 PSI 0.48 lbs./ft FLX2582-0024
FLX2584-0212
5415-162 1.63″ 1.95″ 350 PSI 225 PSI 125 PSI 0.52 lbs./ft FLX2582-0024
FLX2584-0212
5415-175 1.75″ 2.07″ 300 PSI 225 PSI 125 PSI 0.56 lbs./ft FLX2582-0028
FLX2584-0262
5415-187 1.88″ 2.20″ 250 PSI 200 PSI 100 PSI 0.60 lbs./ft FLX2582-0032
FLX2584-0262
5415-200 2.00″ 2.32″ 250 PSI 200 PSI 100 PSI 0.64 lbs./ft FLX2582-0032
FLX2584-0262
5415-212 2.13″ 2.45″ 235 PSI 175 PSI 100 PSI 0.68 lbs./ft FLX2582-0032
FLX2584-0262
5415-225 2.25″ 2.57″ 225 PSI 175 PSI 100 PSI 0.72 lbs./ft FLX2582-0036
FLX2584-0312
5415-238 2.38″ 2.70″ 210 PSI 150 PSI 100 PSI 0.76 lbs./ft FLX2582-0040
FLX2584-0312
5415-250 2.50″ 2.82″ 200 PSI 150 PSI 100 PSI 0.80 lbs./ft FLX2582-0040
FLX2584-0312
5415-262 2.63″ 2.95″ 200 PSI 125 PSI 100 PSI 0.84 lbs./ft FLX2582-0040
FLX2584-0312
5415-275 2.75″ 3.07″ 200 PSI 125 PSI 100 PSI 0.88 lbs./ft FLX2582-0044
FLX2584-0362
5415-287 2.88″ 3.20″ 200 PSI 100 PSI 100 PSI 0.92 lbs./ft FLX2582-0044
FLX2584-0362
5415-300 3.00″ 3.32″ 200 PSI 100 PSI 100 PSI 0.96 lbs./ft FLX2582-0048
FLX2584-0362
5415-312 3.13″ 3.45″ 175 PSI 75 PSI 100 PSI 1.00 lbs./ft FLX2582-0048
FLX2584-0362
5415-325 3.25″ 3.57″ 175 PSI 75 PSI 100 PSI 1.04 lbs./ft FLX2582-0052
FLX2584-0412
5415-338 3.38″ 3.70″ 150 PSI 75 PSI 100 PSI 1.08 lbs./ft FLX2582-0052
FLX2584-0412
5415-350 3.50″ 3.82″ 150 PSI 75 PSI 100 PSI 1.12 lbs./ft FLX2582-0056
FLX2584-0412
5415-375 3.75″ 4.07″ 135 PSI 50 PSI 100 PSI 1.20 lbs./ft FLX2582-0060
FLX2584-0412
5415-387 3.88″ 4.20″ 125 PSI 50 PSI 100 PSI 1.24 lbs./ft FLX2582-0060
FLX2584-0462
5415-400 4.00″ 4.32″ 125 PSI 50 PSI 100 PSI 1.28 lbs./ft FLX2582-0064
FLX2584-0462
5415-450 4.50″ 4.82″ 100 PSI N/A N/A 1.44 lbs./ft FLX2582-0072
FLX2584-0512
5415-500 5.00″ 5.32″ 90 PSI N/A N/A 1.60 lbs./ft FLX2584-0562
5415-550 5.50″ 5.82″ 75 PSI N/A N/A 1.76 lbs./ft FLX2584-0612
5415-600 6.00″ 6.32″ 75 PSI N/A N/A 1.92 lbs./ft FLX2584-0662

*Specifications for reference only. Specific test data available on request.
