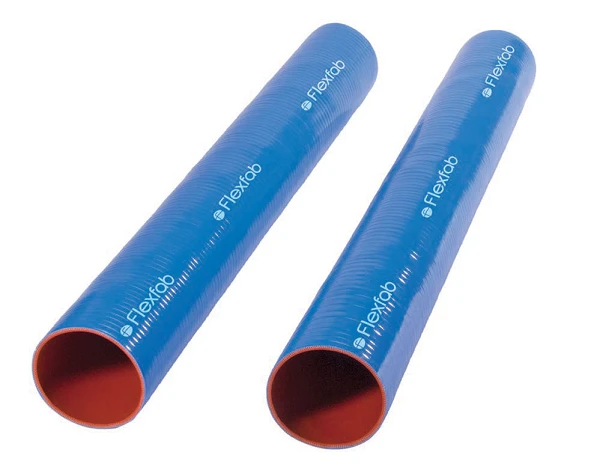

5415-075 By FlexFab | Series 5415 | 3-ply Glossy Coolant Hose | 0.75″ ID | 1.07″ OD | Blue | 3ft Length

Original price was: $31.84.Current price is: $22.29.

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Overview:
Only Available in a Blue Cover Comes in 3ft Lengths
Construction:
Silicone hose with 3-plies of Polyester Reinforcement
Specifications:
Meets or exceeds the operating requirements of SAE J20 R1 Class A Meets or exceeds the operating requirements of TMC RP303B Class I Grade II Temperature range is -65°F (-54°C) to +350°F (+177°C) Custom Wall Thickness is .140″/.190″ Working pressure is 1/3 of the burst pressure
Applications:
For heavy duty pressure connections in hostile engine environments Resists hardening, cracking, cold leaks, aging, and many chemicals Ideal for extreme temperature and various pressure ranges where high performance levels are required

Blue Series Part Number	Inside Diameter	Outside Diameter	Actual Burst Pressure	Burst Pressure		Weight	Clamp
Blue Series Part Number	Inside Diameter	Outside Diameter	Actual Burst Pressure	SAE J20 R1	TMC	Weight	Clamp
5415-038	0.38″	0.70″	500 PSI	425 PSI	125 PSI	0.12 lbs./ft	–
5415-050	0.50″	0.82″	500 PSI	425 PSI	125 PSI	0.16 lbs./ft	FLX2582-0006
5415-062	0.63″	0.95″	485 PSI	425 PSI	125 PSI	0.20 lbs./ft	FLX2582-0010
5415-075	0.75″	1.07″	475 PSI	325 PSI	125 PSI	0.24 lbs./ft	FLX2582-0012
5415-087	0.88″	1.20″	465 PSI	300 PSI	125 PSI	0.28 lbs./ft	FLX2582-0012
5415-100	1.00″	1.32″	450 PSI	300 PSI	125 PSI	0.32 lbs./ft	FLX2582-0016
5415-112	1.13″	1.45″	435 PSI	300 PSI	125 PSI	0.36 lbs./ft	FLX2582-0016 FLX2584-0175
5415-125	1.25″	1.57″	425 PSI	275 PSI	125 PSI	0.40 lbs./ft	FLX2582-0020 FLX2584-0175
5415-138	1.38″	1.70″	400 PSI	250 PSI	125 PSI	0.44 lbs./ft	FLX2582-0020 FLX2584-0212
5415-150	1.50″	1.82″	375 PSI	250 PSI	125 PSI	0.48 lbs./ft	FLX2582-0024 FLX2584-0212
5415-162	1.63″	1.95″	350 PSI	225 PSI	125 PSI	0.52 lbs./ft	FLX2582-0024 FLX2584-0212
5415-175	1.75″	2.07″	300 PSI	225 PSI	125 PSI	0.56 lbs./ft	FLX2582-0028 FLX2584-0262
5415-187	1.88″	2.20″	250 PSI	200 PSI	100 PSI	0.60 lbs./ft	FLX2582-0032 FLX2584-0262
5415-200	2.00″	2.32″	250 PSI	200 PSI	100 PSI	0.64 lbs./ft	FLX2582-0032 FLX2584-0262
5415-212	2.13″	2.45″	235 PSI	175 PSI	100 PSI	0.68 lbs./ft	FLX2582-0032 FLX2584-0262
5415-225	2.25″	2.57″	225 PSI	175 PSI	100 PSI	0.72 lbs./ft	FLX2582-0036 FLX2584-0312
5415-238	2.38″	2.70″	210 PSI	150 PSI	100 PSI	0.76 lbs./ft	FLX2582-0040 FLX2584-0312
5415-250	2.50″	2.82″	200 PSI	150 PSI	100 PSI	0.80 lbs./ft	FLX2582-0040 FLX2584-0312
5415-262	2.63″	2.95″	200 PSI	125 PSI	100 PSI	0.84 lbs./ft	FLX2582-0040 FLX2584-0312
5415-275	2.75″	3.07″	200 PSI	125 PSI	100 PSI	0.88 lbs./ft	FLX2582-0044 FLX2584-0362
5415-287	2.88″	3.20″	200 PSI	100 PSI	100 PSI	0.92 lbs./ft	FLX2582-0044 FLX2584-0362
5415-300	3.00″	3.32″	200 PSI	100 PSI	100 PSI	0.96 lbs./ft	FLX2582-0048 FLX2584-0362
5415-312	3.13″	3.45″	175 PSI	75 PSI	100 PSI	1.00 lbs./ft	FLX2582-0048 FLX2584-0362
5415-325	3.25″	3.57″	175 PSI	75 PSI	100 PSI	1.04 lbs./ft	FLX2582-0052 FLX2584-0412
5415-338	3.38″	3.70″	150 PSI	75 PSI	100 PSI	1.08 lbs./ft	FLX2582-0052 FLX2584-0412
5415-350	3.50″	3.82″	150 PSI	75 PSI	100 PSI	1.12 lbs./ft	FLX2582-0056 FLX2584-0412
5415-375	3.75″	4.07″	135 PSI	50 PSI	100 PSI	1.20 lbs./ft	FLX2582-0060 FLX2584-0412
5415-387	3.88″	4.20″	125 PSI	50 PSI	100 PSI	1.24 lbs./ft	FLX2582-0060 FLX2584-0462
5415-400	4.00″	4.32″	125 PSI	50 PSI	100 PSI	1.28 lbs./ft	FLX2582-0064 FLX2584-0462
5415-450	4.50″	4.82″	100 PSI	N/A	N/A	1.44 lbs./ft	FLX2582-0072 FLX2584-0512
5415-500	5.00″	5.32″	90 PSI	N/A	N/A	1.60 lbs./ft	FLX2584-0562
5415-550	5.50″	5.82″	75 PSI	N/A	N/A	1.76 lbs./ft	FLX2584-0612
5415-600	6.00″	6.32″	75 PSI	N/A	N/A	1.92 lbs./ft	FLX2584-0662
