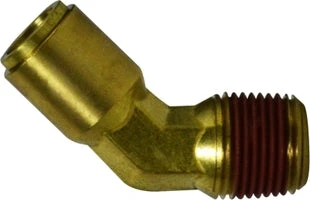

541008 By Midland | DOT Push-In Fitting | 5/8″ Tube OD X 1/2″ Male NPTF | 45° Elbow | Brass

Original price was: $13.93.Current price is: $9.75.

SKU: AG9ZZ 8067216277669 Categories: Fittings & Clamps, Tube Fittings Tags: 1/2" Thread Size, 5/8" Tube OD, Brass, Brass Fittings, Collection-lvl1_All Hose Ends, Collection-lvl2_Ends for Special Hose Types, Collection-lvl3_Tube Fittings, DOT Push-In Fitting x Male NPTF, DOT Push-In Fittings, Male 45° Elbow, Matrixify2nd50kProducts, Midland Industries, Push-In Fittings

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Working Pressure:	Vacuum to 150 PSI	Temperature Range:	-40°F to 200° F ( -40°C to +93°C )

Features:
Fast Assembly: No tools required. Simply push tubing in. Saves up to 75% of assembly time compared to standard air compression fittings. No loose parts to handle. Fast Disconnect: Hold the collet collar with two fingers and pull out tube. No tools required. Reusable: Can be connected and disconnected several times. Reliable Sealing: Using recommended tubing, full sealing is guaranteed. Versatility: Buna N O’ring standard. Viton and others available per request. Secure tube retention. Pulling on tubing only serves to tighten the connection. Pre-Applied Teflon® based pipe sealant on all male pipe threads, saving customer additional labor. Full Flow Design
Materials:
Brass “O” Ring: Buna – Nitrile (90 Durometer) EP (Ethylene Propylene)

Crossover Series:
AQ54DOT	DQ54	179MTNS	1880	DQ54DOT

Part Number	Tube OD x Male NPTF	Approx. Weight (Lbs.)
540402	1/4″ x 1/8″	0.06
540404	1/4″ x 1/4″	0.06
540602	3/8″ x 1/8″	0.08
540604	3/8″ x 1/4″	0.09
540606	3/8″ x 3/8″	0.11
540608	3/8″ x 1/2″	0.15
540804	1/2″ x 1/4″	0.13
540806	1/2″ x 3/8″	0.16
540808	1/2″ x 1/2″	0.18
541006	5/8″ x 3/8″	0.22
541008	5/8″ x 1/2″	0.21
541208	3/4″ x 1/2″	0.28
541212	3/4″ x 3/4″	0.32
