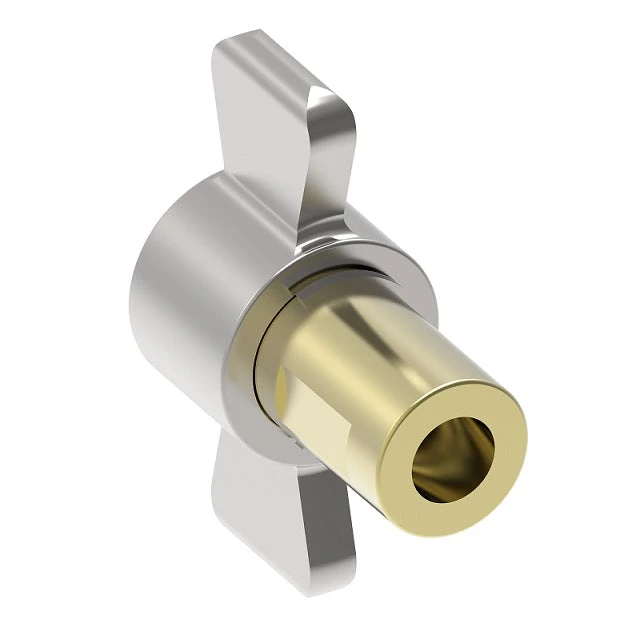

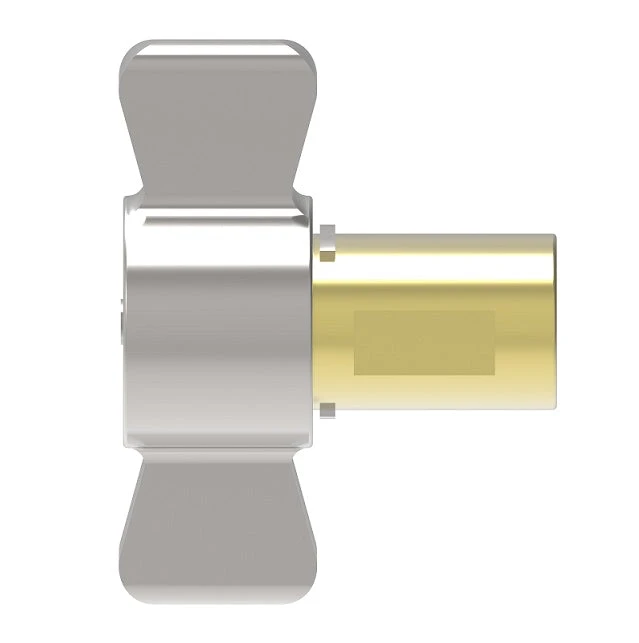

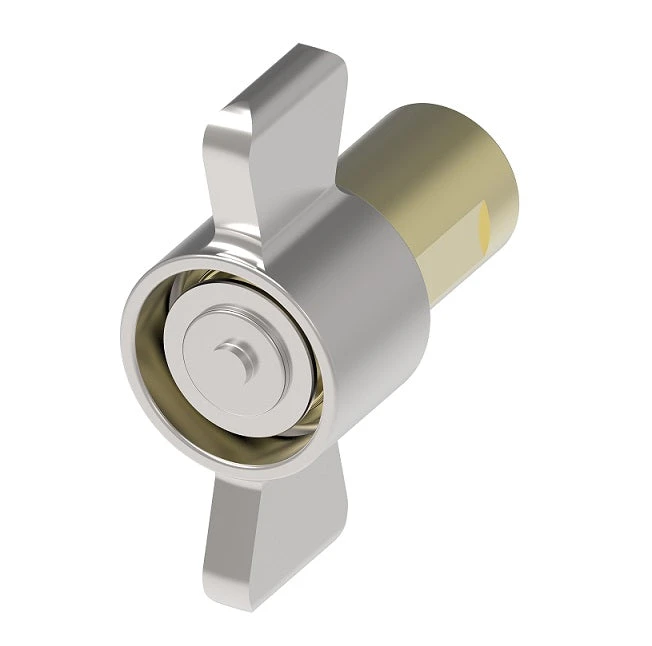

5100-S5-10B Hansen® By Danfoss | Quick Disconnect Coupling | 5100 Series | 1/2" Female NPT X 5/8" Thread To Connect | Socket | NBR Seal | Valved With Wing Nut Less Flange | Brass/Steel

5100-S5-10B Hansen® By Danfoss | Quick Disconnect Coupling | 5100 Series | 1/2″ Female NPT X 5/8″ Thread To Connect | Socket | NBR Seal | Valved With Wing Nut Less Flange | Brass/Steel

Original price was: $69.56.Current price is: $48.69.

SKU: AG9ZZ 1476641521700 Categories: Adapters & More, Quick Disconnects w/o Barb Tags: All-categories, Collection-lvl1_All Hose Ends, Collection-lvl2_Quick Disconnects, Collection-lvl3_Hydraulic Quick Disconnects, Eaton 5100 Series Thread to Connect Quick Disconnect Couplings, Female NPT Valved WITH Wing Nut Less Flange, Fluid Transfer and Hydraulic, Hydraulic Hoses and Fittings, Hydraulic Quick Disconnect Couplings, LegacyProductTypeReplacement_All Categories, Matrixify2nd50kProducts, PriceTeirs_Quick Disconnects, Quick-disconnects, TempQDFilter_Wing Nut

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Product Features:	Tubular valve construction for virtually no fluid loss during disconnection, reduces environmental and worker safety hazards. Low air inclusion during connection maintains system performance. Connect against pressure capability allows connecting of halves even when pressurized up to 500 psi.
Applications & Markets:	Hydraulics and Fluid Transfer On-highway Hydraulic Wet Lines Dump and Refuse Vehicles Bulk Liquid Transfer Note: The 5100 Series is not rated for continuous hydraulic impulse applications.
Materials:	Standard body material: Brass body with high resistance carbon steel with zinc trivalent plated valving components, hex and wing nuts. Standard seal materials: Nitrile (NBR).

Body Size	Body Interface Size	Max. Operating Pressure Connected		Max. Operating Pressure Disconnected				Vacuum	Rated Flow		Air Inclusion	Fluid Loss
Body Size	Body Interface Size	Max. Operating Pressure Connected		Plug/Male Half S2 & S4		Socket/Female Half S5		Vacuum	Rated Flow		Air Inclusion	Fluid Loss
1/4″	1/2″	207 bar	3,000 psi	207 bar	3,000 psi	207 bar	3,000 psi	28 in/Hg	15 lpm	4 gpm	.03 cc. max	.01 cc. max
3/8″	1/2″	207 bar	3,000 psi	207 bar	3,000 psi	207 bar	3,000 psi	28 in/Hg	26 lpm	7 gpm	.05 cc. max	.06 cc. max
1/2″	1/2″	207 bar	3,000 psi	207 bar	3,000 psi	207 bar	3,000 psi	28 in/Hg	26 lpm	7 gpm	.05 cc. max	.10 cc. max
5/8″	3/4″	207 bar	3,000 psi	207 bar	3,000 psi	207 bar	3,000 psi	28 in/Hg	68 lpm	18 gpm	.14 cc. max	.10 cc. max
3/4″	3/4″	207 bar	3,000 psi	207 bar	3,000 psi	207 bar	3,000 psi	28 in/Hg	68 lpm	18 gpm	.34 cc. max	.26 cc. max
1″	1″	207 bar	3,000 psi	207 bar	3,000 psi	207 bar	3,000 psi	28 in/Hg	151 lpm	40 gpm	.50 cc. max	.35 cc. max
1-1/4″	1-1/4″	190 bar	2,750 psi	172 bar	2,500 psi	190 bar	2,750 psi	28 in/Hg	284 lpm	75 gpm	.68 cc. max	.70 cc. max
1-1/2″	1-1/2″	172 bar	2,500 psi	172 bar	2,500 psi	138 bar	2,000 psi	28 in/Hg	379 lpm	100 gpm	.60 cc. max	.94 cc. max


Socket/Female (Figure 1)					Complete (Figure 2)
Dimensions (Female NPT, Valved With Wing Nut Less Flange
Part Number	Coupling Type	Body Size	Port Size	Thread	Type	Figure	Dimensions
NBR	Coupling Type	Body Size	Port Size	Thread	Type	Figure	A	B	Hex
5100-S5-4B	Socket/Female	1/4″	1/8″	1/8-27	Female NPT	1	2.10″ (53.3mm)	3.03″ (77.0mm)	0.56″ (14.2mm)
5101-4B	Complete	1/4″	1/8″	1/8-27	Female NPT	2	3.20″ (81.3mm)	–	–

5100-S5-6B	Socket/Female	3/8″	1/4″	1/4-18	Female NPT	1	2.40″ (61.0mm)	3.44″ (87.4mm)	0.76″ (19.3mm)
5101-6B	Complete	3/8″	1/4″	1/4-18	Female NPT	2	4.11″ (104.4mm)	–	–

5100-S5-8B	Socket/Female	1/2″	3/8″	3/8-18	Female NPT	1	2.40″ (61.0mm)	3.44″ (87.4mm)	0.76″ (19.3mm)
5101-8B	Complete	1/2″	3/8″	3/8-18	Female NPT	2	4.11″ (104.4mm)	–	–

5100-S5-10B	Socket/Female	5/8″	1/2″	1/2-14	Female NPT	1	3.07″ (78.0mm)	4.13″ (104.9mm)	1.16″ (29.5mm)
5101-10B	Complete	5/8″	1/2″	1/2-14	Female NPT	2	5.21″ (132.3mm)	–	–

5100-S5-12B	Socket/Female	3/4″	3/4″	3/4-14	Female NPT	1	3.07″ (78.0mm)	4.13″ (104.9mm)	1.16″ (29.5mm)
5101-12B	Complete	3/4″	3/4″	3/4-14	Female NPT	2	5.21″ (132.3mm)	–	–

5100-S5-16B	Socket/Female	1″	1″	1-11-1/2	Female NPT	1	3.68″ (93.5mm)	4.38″ (111.3mm)	1.44″ (36.6mm)
5101-16B	Complete	1″	1″	1-11-1/2	Female NPT	2	5.98″ (151.9mm)	–	–

5100-S5-20B	Socket/Female	1-1/4″	1-1/4″	1-1/4-11-1/2	Female NPT	1	4.00″ (101.6mm)	5.27″ (133.9mm)	1.78″ (45.2mm)
5101-20B	Complete	1-1/4″	1-1/4″	1-1/4-11-1/2	Female NPT	2	6.31″ (160.3mm)	–	–

5100-S5-24B	Socket/Female	1-1/2″	1-1/2″	1-1/2-11-1/2	Female NPT	1	4.10″ (104.1mm)	5.38″ (136.7mm)	2.00″ (50.8mm)
5101-24B	Complete	1-1/2″	1-1/2″	1-1/2-11-1/2	Female NPT	2	6.52″ (165.6mm)	–	–

5100 Series \| Dust Caps & Dust Plugs
Dust Cap with Chain Part Number	Dust Plug with Chain Part Number	Dust Cap without Chain Part Number	Body Size
5100-S7-5	5100-S9-5	–	1/4″
5100-S7-8	5100-S9-8	5100-32-8	3/8″ & 1/2″
5100-S7-12	5100-S9-12	5100-32-12	5/8″ & 3/4″
5100-S7-16	5100-S9-16	5100-32-16	1″
5100-S7-20	5100-S9-20	5100-32-20	1-1/4″
5100-S7-24	5100-S9-24	5100-32-24	1-1/2″
