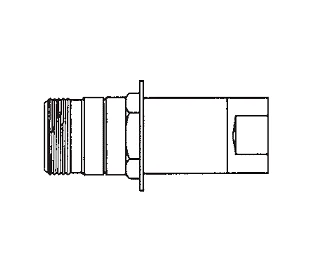

5100-S4-6B By Danfoss | 5100 Series Male Plug | 1/4″-18 Female NPT Valved W/ Flange Quick Disconnect Coupling | Brass

Original price was: $31.52.Current price is: $22.06.

SKU: AG9ZZ 1477365956644 Categories: Adapters & More, Quick Disconnects w/o Barb Tags: All-categories, Collection-lvl1_All Hose Ends, Collection-lvl2_Quick Disconnects, Collection-lvl3_Hydraulic Quick Disconnects, Eaton 5100 Series Thread to Connect Quick Disconnect Couplings, Female NPT Valved WITH Flange, Fluid Transfer and Hydraulic, Hydraulic Hoses and Fittings, Hydraulic Quick Disconnect Couplings, LegacyProductTypeReplacement_All Categories, Matrixify1st50kProducts, PriceTeirs_Quick Disconnects, Quick-disconnects, TempQDFilter_Wing Nut

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Danfoss’s 5100 Series brass coupling with steel tubular valve offers minimum air inclusion and fluid loss. Thread together latch provides connect under pressure
capability and vibration resistance. The 5100 Series is not rated for continuous hydraulic impulse applications. For hydraulic impulse applications, refer
to the FD86 and FD96 Series thread to connect product lines.

See How to Order

SPECIFICATIONS

Applications & Markets:	Hydraulics and fluid transfer On-highway hydraulic wet lines Dump and refuse vehicles Bulk liquid transfer
Product Features:	Tubular valve construction for virtually no fluid loss during disconnection, reduces environmental and worker safety hazards Low air inclusion during connection maintains system performance Available with wing or hex nut configurations Connect against pressure capability allows connecting of halves even when pressurized up to 500 psi Steel flange available for accessible bulkhead mounting
Standard Body Material:	Brass body with high resistance carbon steel with zinc trivalent plated valving components, hex and wing nuts
Standard Seal	Buna-N

Physical Characteristics

				Max. Operating Pressure Disconnected
Body Dash Size	Body Interface Size	Max. Operating Pressure Connected		Plug/Male Half S2 and S4		Socket/Female Half S5		Vacuum	Rated Flow		Air Inclusion	Fluid Loss
in	in	bar	psi	bar	psi	bar	psi	in./Hg	lpm	gpm	cc.max.	cc.max.
1/4	1/4	207	3000	207	3000	207	3000	28	15	4	.03	.01
3/8	1/2	207	3000	207	3000	207	3000	28	26	7	.05	.06
1/2	1/2	207	3000	207	3000	207	3000	28	26	7	.05	.10
5/8	3/4	207	3000	207	3000	207	3000	28	68	18	.14	.10
3/4	3/4	207	3000	207	3000	207	3000	28	68	18	.34	.26
1	1	207	3000	207	3000	207	3000	28	151	40	.50	.35
1 1/4	1 1/4	190	2750	172	2500	190	2750	28	284	75	.68	.70
1 1/2	1 1/2	172	2500	172	2500	138	2000	28	379	100	.60	.94


Part Number Buna-N	Coupling Type	Body Size	Port Size	Thread	Type	Fig.	Dimensions
							A		B		Hex 1
							mm	in	mm	in	mm	in
5100-S4-4B	Plug/Male	1/4	1/8	1/8-27	Female NPT	4	47.8	1.88	22.4	.88	23.3	.96

5100-S4-6B	Plug/Male	3/8	1/4	1/4-18	Female NPT	4	65.5	2.58	26.7	1.05	28.5	1.12

5100-S4-8B	Plug/Male	1/2	3/8	3/8-18	Female NPT	4	65.5	2.58	26.7	1.05	28.5	1.12
5110-8B	Complete	1/2	3/8	3/8-18	Female NPT	5	104.4	4.11	–	–	–	–

5100-S4-10B	Plug/Male	5/8	1/2	1/2-14	Female NPT	4	79.0	3.11	35.2	1.35	4.12	1.62
5110-10B	Complete	5/8	1/2	1/2-14	Female NPT	5	132.3	5.21	–	–	–	–

5100-S4-12B	Plug/Male	3/4	3/4	3/4-14	Female NPT	4	79.0	3.11	35.2	1.35	41.2	1.62

5100-S4-16B	Plug/Male	1	1	1-11 1/2	Female NPT	4	90.2	3.55	44.2	1.74	47.8	1.88

5100-S4-20B	Plug/Male	1 1/4	1 1/4	1 1/4-11 1/2	Female NPT	4	94.2	3.71	52.8	2.08	53.9	2.12

5100-S4-24B	Plug/Male	1 1/2	1 1/2	1 1/2-11 1/2	Female NPT	4	104.6	4.12	62.5	2.46	63.5	2.50
