Sale!

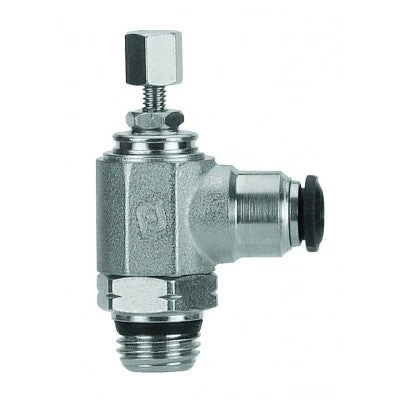

50905N-8-1/8 By AIGNEP | Functional (Flow Controls) Series | Flow Control | Meter Out | Knob Adjust | 8mm Tube X 1/8" Swift-Fit Male

50905N-8-1/8 By AIGNEP | Functional (Flow Controls) Series | Flow Control | Meter Out | Knob Adjust | 8mm Tube X 1/8" Swift-Fit Male - Image 2

50905N-8-1/8 By AIGNEP | Functional (Flow Controls) Series | Flow Control | Meter Out | Knob Adjust | 8mm Tube X 1/8″ Swift-Fit Male

Original price was: $12.00.Current price is: $8.40.

SKU: AG9ZZ 7751578222757 Categories: Adapters & More, Valves Tags: 8mm Tube x 1/8" Swift-Fit Male, Collection-lvl1_All Hose Accessories, Collection-lvl2_Valves, Collection-lvl3_Needle and Flow Control Valves, Flow Control, Functional (Flow Controls) Series, Knob Adjust, Matrixify2nd50kProducts, Meter Out

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Metric Tube Flow Control (OUT)

Pressure Rating: Vacuum – 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Nickel-plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

Tube	A	B (IN)	B	L1	L2 Min	L2 Max	CH	Code
50905N-4-M5	4 mm	M5	0.156″	4 mm	19 mm	33 mm	37.5 mm	8 mm	C
50905N-4-1/8	4 mm	1/8″	0.215″	5.5 mm	21 mm	41 mm	46.5 mm	14 mm	C
50905N-5-M5	5 mm	M5	0.156″	4 mm	20 mm	33 mm	37.5 mm	8 mm	C
50905N-5-1/8	5 mm	1/8″	0.215″	5.5 mm	21.5 mm	41 mm	46.5 mm	14 mm	C
50905N-5-1/4	5 mm	1/4″	0.273″	7 mm	24.5 mm	46.5 mm	52.5 mm	17 mm	C
50905N-6-M5	6 mm	M5	0.156″	4 mm	20.5 mm	33 mm	37.5 mm	8 mm	C
50905N-6-1/8	6 mm	1/8″	0.273″	7 mm	22.5 mm	41 mm	46.5 mm	14 mm	C
50905N-6-1/4	6 mm	1/4″	0.215″	5.5 mm	25 mm	46.5 mm	52.5 mm	17 mm	C
50905N-8-1/8	8 mm	1/8″	0.215″	5.5 mm	24 mm	41 mm	46.5 mm	14 mm	C
50905N-8-1/4	8 mm	1/4″	0.273″	7 mm	26 mm	46.5 mm	52.5 mm	17 mm	C
50905N-10-1/4	10 mm	1/4″	0.273″	7 mm	28.5 mm	48.5 mm	55 mm	17 mm	C
50905N-10-3/8	10 mm	3/8″	0.293″	7.5 mm	30.5 mm	56 mm	63 mm	20 mm	C
50905N-12-3/8	12 mm	3/8″	0.293″	7.5 mm	32.5 mm	56 mm	63 mm	20 mm	C
50905N-12-1/2	12 mm	1/2″	0.351″	9 mm	35 mm	61 mm	69 mm	24 mm	C
