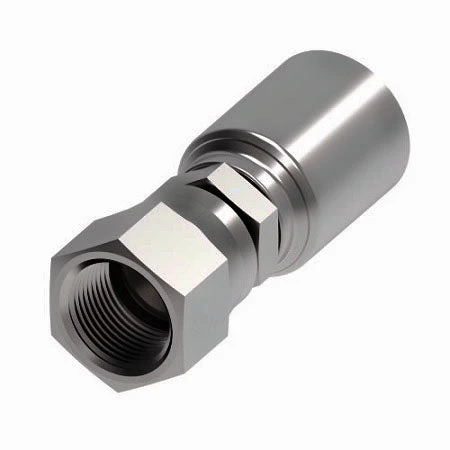

4TA5FJ3 Synflex Optimum By Danfoss | 4TA Fitting For Thermoplastic Hydraulic Hose | -03 JIC/37° Female Swivel Fitting For -05 Hose | Carbon Steel

Original price was: $16.58.Current price is: $11.61.

SKU: AG9ZZ 7696206463141 Categories: Fittings & Clamps, Hydraulic Hose Fittings Tags: 4TA Fittings, Aeroquip Distributor, Collection-lvl1_All Hose Ends, Collection-lvl2_Ends for Hydraulic Hose, Collection-lvl3_Thermoplastic Hydraulic Hose Fittings, Danfoss Synflex Thermoplastic Hose Fittings, Eaton Synflex Thermoplastic Hose Fittings, Hydraulic Hose Fittings, Hydraulic Hoses and Fittings, JIC/37° Female Swivel, Matrixify2nd50kProducts, Steel

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Material:
Zinc Plated Carbon Steel Corrosion resistant Dura-Kote™ plating comes standard in Synflex Optimum fittings. Dura-Kote plating delivers up 3x the corrosion protection on carbon steel fittings as compared to competitive hose fittings. Provides up to 1,000 hours of corrosion resistance.
Features:
Single Piece Design – Synflex Optimum 4TA fittings follow a simple one-piece design that reduces matching errors during assembly, eliminates brazing failure risks and lowers assembly time Captive Nut – A captive nut eliminates the weak spots found in other fittings. And it evenly distributes the force applied during assembly, helping prevent cracks and leaks that halt workflows and lead to unplanned downtime. Easy Assembly – Easier insertion, less force needed during assembly to push fitting onto hose. Smaller Profile – They have a compact design and smaller profile making it easier for routing and assembly installation, especially in tight spaces. Easy Identification – Part numbers printed on fittings for easy identification.

Carbon Steel Part Number	Stainless Steel Part Number	Fitting Size	For use with Hose Size	Thread
4TA3FJ2	–	-02	-03	3/8-24
4TA4FJ2	–	-02	-04	7/16-20
4TA4FJ3	–	-03	-04	7/16-20
4TA5FJ3	–	-03	-05	1/2-20
4TA4FJ4	4TA4FJ4C	-04	-04	7/16-20
4TA4FJ6	–	-06	-04	7/16-20
4TA5FJ4	–	-04	-05	1/2-20
4TA5FJ5	–	-05	-05	1/2-20
4TA5FJ6	–	-06	-05	1/2-20
4TA6FJ4	–	-04	-06	9/16-18
4TA6FJ5	–	-05	-06	9/16-18
4TA6FJ6	4TA6FJ6C	-06	-06	9/16-18
4TA8FJ6	–	-06	-08	3/4-16
4TA8FJ8	4TA8FJ8C	-08	-08	3/4-16
4TA10FJ8	–	-08	-10	7/8-14
–	4TA10FJ10C	-10	-10	7/8-14
4TA12FJ8	–	-08	-12	1-1/16-12
4TA12FJ10	–	-10	-12	1-1/16-12
4TA12FJ12	4TA12FJ12C	-12	-12	1-1/16-12
4TA16FJ16	4TA16FJ16C	-16	-16	1-5/16-12
