| Description: | |||
|---|---|---|---|
| The 4GC Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully. Trivalent Zinc Plating |

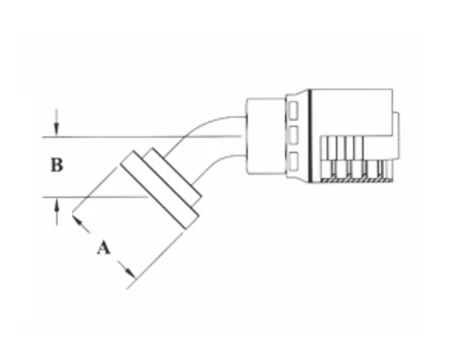

| Part Number | Hose ID | Flange Size | A-Dia Inches | B-Drop Inches | Cross Reference Part Numbers |
|---|---|---|---|---|---|
| Parker 71 | |||||
| 4GC50-8×8 | 1/2″ | 1/2″ | 1.19″ | 0.78″ | 11771-8-8 |
| 4GC50-8×12 | 1/2″ | 3/4″ | 1.50″ | 0.82″ | 11771-12-8 |
| 4GC50-12×12 | 3/4″ | 3/4″ | 1.50″ | 1.00″ | 11771-12-12 |
| /4GC50-12×16 | 3/4″ | 1″ | 1.75″ | 1.00″ | 11771-16-12 |
| 4GC50-16×16 | 1″ | 1″ | 1.75″ | 1.12″ | 11771-16-16 |
| 4GC50-16×20 | 1″ | 1-1/4″ | 2.00″ | 1.12″ | 11771-20-16 |
| 4GC50-20×20 | 1-1/4″ | 1-1/4″ | 2.00″ | 1.15″ | 11771-20-20 |
| 4GC50-20×24 | 1-1/4″ | 1-1/2″ | 2.38″ | 1.50″ | 11771-24-20 |
| 4GC50-24×24 | 1-1/2″ | 1-1/2″ | 2.38″ | 1.41″ | 11771-24-24 |
| 4GC50-32×32 | 2″ | 2″ | 2.81″ | 2.08″ | 11771-32-32 |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer.
Please check hose cut off factor, tube length, and tube drop carefully.
