4CMF4-B-E By Dixon Valve | Hydraulic Quick Disconnect Coupling | CM-Series | 1/2" Female NPTF X 1/2" Industrial Mold Interchange | Socket | Unvalved | Silicone Seal | Brass
4CMF4-B-E By Dixon Valve | Hydraulic Quick Disconnect Coupling | CM-Series | 1/2" Female NPTF X 1/2" Industrial Mold Interchange | Socket | Unvalved | Silicone Seal | Brass - Image 2
4CMF4-B-E By Dixon Valve | Hydraulic Quick Disconnect Coupling | CM-Series | 1/2" Female NPTF X 1/2" Industrial Mold Interchange | Socket | Unvalved | Silicone Seal | Brass -Hose Ware House cm f 20unvalved 20coupler 203d 20half color lg watermarked 4b770af1 db2b 4cbd 99ae a94afa2707f1

4CMF4-B-E By Dixon Valve | Hydraulic Quick Disconnect Coupling | CM-Series | 1/2″ Female NPTF X 1/2″ Industrial Mold Interchange | Socket | Unvalved | Silicone Seal | Brass

Original price was: $17.93.Current price is: $12.55.

SKU: AG9ZZ 1482370809892 Category: Tags: , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Compatibility & Interchange:
  • Mold Coolant Interchange
  • Foster Series- FJT, Hansen Flo-Temp, Tomco MC-Series, Parker Moldmate, DME Jiffy-Tite
Construction:
  • Machined components are manufactured using solid steel or brass bar stock.
  • Stainless steel balls, retaining rings, and springs maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS-compliant trivalent chrome.
Seal Components:
  • Silicon gaskets and valve O-rings are standard, providing a temperature range of -90°F to 400°F (-68°C to 205°C).
Safety Notes:
  • Maximum working and burst pressure is based on a coupled set, contact Dixon for pressure ratings.
Additional Information:
  • For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF
CM-Series | Industrial Mold Interchange (Connected) Rated Pressure Chart
Body
Size		 Unvalved Coupler/Brass Plug Unvalved Coupler/Steel Plug Valved Coupler/Brass Plug Valved Coupler/Steel Plug Locking Ball
Quantity		 Flow
ΔP = 7 PSI
Max.
Working		 Burst Max.
Working		 Burst Max.
Working		 Burst Max.
Working		 Burst
1/4″ 300 PSI
(20 Bar)		 10,000 PSI
(700 Bar)		 500 PSI
(35 Bar)		 10,700 PSI
(750 Bar)		 300 PSI
(20 Bar)		 6,000 PSI
(400 Bar)		 300 PSI
(20 Bar)		 6,100 PSI
(400 Bar)		 6 3 GPM
3/8″ 300 PSI
(20 Bar)		 14,500 PSI
(1,000 Bar)		 500 PSI
(35 Bar)		 14,200 PSI
(1,000 Bar)		 300 PSI
(20 Bar)		 6,700 PSI
(450 Bar)		 300 PSI
(20 Bar)		 6,100 PSI
(400 Bar)		 8 9 GPM
1/2″ 300 PSI
(20 Bar)		 4,900 PSI
(340 Bar)		 – – – – – – 8 15 GPM
CM-Series | Industrial Mold Interchange Unvalved Coupler (Female Threads)

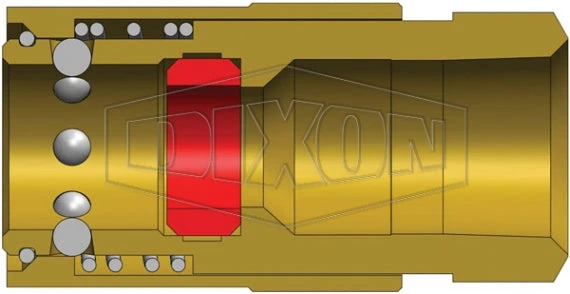

4CMF4-B-E By Dixon Valve | Hydraulic Quick Disconnect Coupling | CM-Series | 1/2" Female NPTF X 1/2" Industrial Mold Interchange | Socket | Unvalved | Silicone Seal | Brass -Hose Ware House Dixon Quick Disconnect CM Series Industrial Mold Interchange Unvalved Coupler Fem NPTF
Part
Number		 Coupling
Type		 Body
Size		 Thread Size Material Length Max.
OD		 Hex
2CMF1-B-E Socket/FeFemale 1/4″ 1/8″ – 27 Female NPTF Brass 1.35″
(34.3mm)		 0.69″
(17.5mm)		 9/16″
2CMF2-B-E Socket/Female 1/4″ 1/4″ – 18 Female NPTF Brass 1.35″
(34.3mm)		 0.79″
(20.1mm)		 11/16″
3CMF2-B-E Socket/Female 3/8″ 1/4″ – 18 Female NPTF Brass 1.84″
(46.7mm)		 0.95″
(24.1mm)		 3/4″
3CMF3-B-E Socket/Female 3/8″ 3/8″ – 18 Female NPTF Brass 1.84″
(46.7mm)		 1.01″
(25.7mm)		 7/8″
4CMF4-B-E Socket/Female 1/2″ 1/2″ – 14 Female NPTF Brass 2.02″
(51.3mm)		 1.24″
(31.5mm)		 1-1/8″
CM-Series | Industrial Mold Interchange Plug (Female Threads)
4CMF4-B-E By Dixon Valve | Hydraulic Quick Disconnect Coupling | CM-Series | 1/2" Female NPTF X 1/2" Industrial Mold Interchange | Socket | Unvalved | Silicone Seal | Brass -Hose Ware House Dixon Quick Disconnect CM Series Industrial Mold Interchange Plug Fem NPTF
Part
Number		 Coupling
Type		 Body
Size		 Thread Size Material Length Max.
OD		 Hex
CM2F1 Plug/Male 1/4″ 1/8″ – 27 Female NPTF Steel 0.90″
(22.9mm)		 0.58″
(14.7mm)		 1/2″
CM2F1-B Plug/Male 1/4″ 1/8″ – 27 Female NPTF Brass 0.90″
(22.9mm)		 0.58″
(14.7mm)		 1/2″
CM2F2 Plug/Male 1/2″ 1/4″ – 18 Female NPTF Steel 1.12″
(28.4mm)		 0.72″
(18.3mm)		 5/8″
CM2F2-B Plug/Male 1/4″ 1/4″ – 18 Female NPTF Brass 1.12″
(28.4mm)		 0.72″
(18.3mm)		 5/8″
CM2F3 Plug/Male 1/4″ 3/8″ – 18 Female NPTF Steel 1.12″
(28.4mm)		 0.87″
(22.1mm)		 3/4″
CM2F3-B Plug/Male 1/4″ 3/8″ – 18 Female NPTF Brass 1.12″
(28.4mm)		 0.87″
(22.1mm)		 3/4″
CM3F2 Plug/Male 3/8″ 1/4″ – 18 Female NPTF Steel 1.34″
(34.0mm)		 0.72″
(18.3mm)		 5/8″
CM3F2-B Plug/Male 3/8″ 1/4″ – 18 Female NPTF Brass 1.34″
(34.0mm)		 0.72″
(18.3mm)		 5/8″
CM3F3 Plug/Male 3/8″ 3/8″ – 18 Female NPTF Steel 1.34″
(34.0mm)		 0.87″
(22.1mm)		 3/4″
CM3F3-B Plug/Male 3/8″ 3/8″ – 18 Female NPTF Brass 1.34″
(34.0mm)		 0.87″
(22.1mm)		 3/4″
CM4F4-B Plug/Male 1/2″ 1/2″ – 14 Female NPTF Brass 1.69″
(42.9mm)		 1.16″
(29.5mm)		 1″
CM4F6-B Plug/Male 1/2″ 3/4″ – 14 Female NPTF Brass 1.69″
(42.9mm)		 1.37″
(34.8mm)		 1-3/16″
CM-Series | Industrial Mold Interchange Plug (Male Threads)
4CMF4-B-E By Dixon Valve | Hydraulic Quick Disconnect Coupling | CM-Series | 1/2" Female NPTF X 1/2" Industrial Mold Interchange | Socket | Unvalved | Silicone Seal | Brass -Hose Ware House Dixon Quick Disconnect CM Series Industrial Mold Interchange Plug Male NPTF
Part
Number		 Coupling
Type		 Body
Size		 Thread Size Material Length Max.
OD		 Hex
CM2M1-B Plug/Male 1/4″ 1/8″ – 27 Male NPTF Brass 1.00″
(25.4mm)		 0.65″
(16.5mm)		 9/16″
CM2M2-B Plug/Male 1/4″ 1/4″ – 18 Male NPTF Brass 1.26″
(32.0mm)		 0.65″
(16.5mm)		 9/16″
CM2M3-B Plug/Male 1/4″ 3/8″ – 18 Male NPTF Brass 1.20″
(30.5mm)		 0.79″
(20.1mm)		 11/16″
CM3M2-B Plug/Male 3/8″ 1/4″ – 18 Male NPTF Brass 1.37″
(34.8mm)		 0.65″
(16.5mm)		 9/16″
CM3M3-B Plug/Male 3/8″ 3/8″ – 18 Male NPTF Brass 1.43″
(36.3mm)		 0.79″
(20.1mm)		 11/16″
CM3M4-B Plug/Male 3/8″ 1/2″ – 14 Male NPTF Brass 1.58″
(40.1mm)		 1.01″
(25.7mm)		 7/8″
CM4M4-B Plug/Male 1/2″ 1/2″ – 14 Male NPTF Brass 1.69″
(42.9mm)		 1.01″
(25.7mm)		 7/8″
CM4M6-B Plug/Male 1/2″ 3/4″ – 14 Male NPTF Brass 1.79″
(45.5mm)		 1.23″
(31.2mm)		 1-1/16″

Reviews

There are no reviews yet.

Be the first to review “4CMF4-B-E By Dixon Valve | Hydraulic Quick Disconnect Coupling | CM-Series | 1/2″ Female NPTF X 1/2″ Industrial Mold Interchange | Socket | Unvalved | Silicone Seal | Brass”
