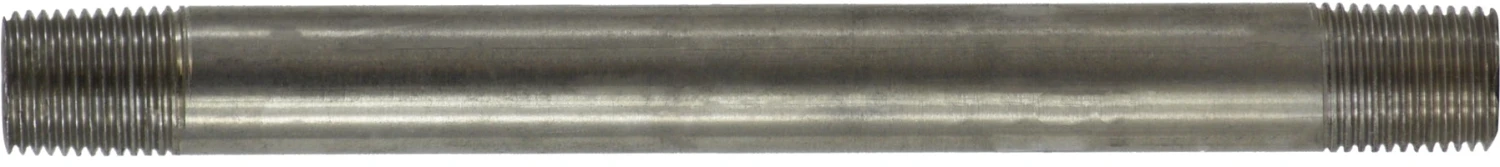

49005 By Midland | Schedule 40 Welded Nipple | 1/8″ Diameter X 3″ Length | 316 Stainless Steel

Original price was: $12.00.Current price is: $8.40.

SKU: AG9ZZ 8094826954917 Category: Adapters & More Tags: 1/8" Diameter, 316 Stainless Steel, Collection-lvl1_All Hose Ends, Collection-lvl2_Adapters and More, Collection-lvl3_Industrial Adapters, Male Pipe x Male Pipe, Matrixify2nd50kProducts, Midland Industries, Nipples & Fittings, Schedule 40 Welded Nipples

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Features:
For severe environments. Of course, there are many industrial processes that require a higher level of resistance to corrosion than Type 304 can offer. For these applications, Type 316 is the answer. In type 316, the nickel content is increased slightly. What distinguishes Type 316 from Type 304 is the addition of molybdenum up to a maximum of 3%. Molybdenum increases the corrosion resistance of this chromium-nickel alloy to withstand attack by many industrial chemicals and solvents, and, in particular, inhibits pitting caused by chlorides. As such, molybdenum is one of the single most useful alloying additives in the fight against corrosion.
Specifications:
Both #304 and #316 nipples are NSF/ANSI 372 and NSF/ANSI 61 compliant. Stainless steel pipe nipples are manufactured from stainless steel pipe that conforms to specification ASTM A312/SA312. All stainless steel nipples conform to specification ASTM A733. Threads conform to the requirements of ANSI B1.20.1.

Part Number	Length	Approx. Weight (Lbs.)
48001 (48-001)	3/4″ (Close)	0.01
48002 (48-002)	1-1/2″	0.03
48003 (48-003)	2″	0.04
48004 (48-004)	2-1/2″	0.05
48005 (48-005)	3″	0.06
48006 (48-006)	3-1/2″	0.07
48007 (48-007)	4″	0.07
48008 (48-008)	4-1/2″	0.09
48009 (48-009)	5″	0.10
48010 (48-010)	5-1/2″	0.11
48011 (48-011)	6″	0.12
49012	7″	0.14
49013	8″	0.16
49014	9″	0.18
49015	10″	0.20
49016	11″	0.22
49017 (49-017)	12″	0.24
