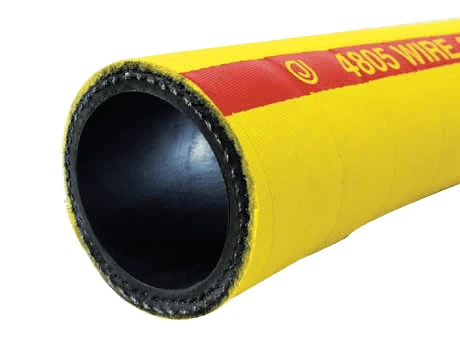

4805-0125-050 By Jason Industrial | 4805 Series | Wire Reinforced Air Hose | 600 PSI | 1-1/4″ ID | 1.81″ OD | Bright Yellow | NR/SBR | 50ft

Original price was: $285.33.Current price is: $97.99.

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Other Features:
Application:	For heavy duty air supply in mining, quarries, construction, industrial air place ment, sandblasting and heavy duty equipment rental.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Nitrile Blend, Smooth and Black
Reinforcement:	Two Spiral Wires	Cover:	SBR, Fabric Impression, Yellow, Pin-Pricked.
Temperature Range:	-25 deg. F (-32 deg. C) to +200 deg. F (+93 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	Jason logo 4805 WIRE AIR WP (PSI) (BAR)
Oil mist resistant tube with high working pressure Bright yellow non-marking cover Heavy duty cover makes this a durable hose

Part Number	I.D.		O.D.		Reinforcement Spirals	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR		lb./ft.	KG/m	in.	mm	ft
Uncoupled
4805-0050-050	1/2″	12.70mm	0.91″	23.11mm	2	600 PSI	41.37 BAR	N/A	0.36 lb./ft.	0.54 KG/m	5.50″	140.00mm	50ft
4805-0050-100	1/2″	12.70mm	0.91″	23.11mm	2	600 PSI	41.37 BAR	N/A	0.36 lb./ft.	0.54 KG/m	5.50″	140.00mm	100ft
4805-0075-050	3/4″	19.05mm	1.22″	30.99mm	2	600 PSI	41.37 BAR	N/A	0.60 lb./ft.	0.98 KG/m	8.30″	210.00mm	50ft
4805-0075-100	3/4″	19.05mm	1.22″	30.99mm	2	600 PSI	41.37 BAR	N/A	0.60 lb./ft.	0.98 KG/m	8.30″	210.00mm	100ft
4805-0100-050	1″	25.40mm	1.49″	37.85mm	2	600 PSI	41.37 BAR	N/A	0.80 lb./ft.	1.19 KG/m	11.00″	280.00mm	50ft
4805-0100-100	1″	25.40mm	1.49″	37.85mm	2	600 PSI	41.37 BAR	N/A	0.80 lb./ft.	1.19 KG/m	11.00″	280.00mm	100ft
4805-0125-050	1-1/4″	31.75mm	1.81″	45.97mm	2	600 PSI	41.37 BAR	N/A	1.05 lb./ft.	1.56 KG/m	13.80″	350.00mm	50ft
4805-0125-100	1-1/4″	31.75mm	1.81″	45.97mm	2	600 PSI	41.37 BAR	N/A	1.05 lb./ft.	1.56 KG/m	13.80″	350.00mm	100ft
4805-0150-050	1-1/2″	38.10mm	2.04″	51.82mm	2	600 PSI	41.37 BAR	N/A	1.24 lb./ft.	1.85 KG/m	16.50″	420.00mm	50ft
4805-0150-100	1-1/2″	38.10mm	2.04″	51.82mm	2	600 PSI	41.37 BAR	N/A	1.24 lb./ft.	1.85 KG/m	16.50″	420.00mm	100ft
4805-0200-050	2″	50.80mm	2.60″	66.04mm	2	600 PSI	41.37 BAR	N/A	1.80 lb./ft.	2.68 KG/m	22.00″	560.00mm	50ft
4805-0200-100	2″	50.80mm	2.60″	66.04mm	2	600 PSI	41.37 BAR	N/A	1.80 lb./ft.	2.68 KG/m	22.00″	560.00mm	100ft
4805-0200-200	2″	50.80mm	2.60″	66.04mm	2	600 PSI	41.37 BAR	N/A	1.80 lb./ft.	2.68 KG/m	22.00″	560.00mm	200ft
4805-0250-050	2-1/2″	63.50mm	3.15″	80.01mm	2	600 PSI	41.37 BAR	N/A	2.40 lb./ft.	3.57 KG/m	27.50″	700.00mm	50ft
4805-0250-100	2-1/2″	63.50mm	3.15″	80.01mm	2	600 PSI	41.37 BAR	N/A	2.40 lb./ft.	3.57 KG/m	27.50″	700.00mm	100ft
4805-0300-050	3″	76.20mm	3.70″	93.98mm	2	600 PSI	41.37 BAR	N/A	3.22 lb./ft.	4.79 KG/m	33.10″	840.00mm	50ft
4805-0300-100	3″	76.20mm	3.70″	93.98mm	2	600 PSI	41.37 BAR	N/A	3.22 lb./ft.	4.79 KG/m	33.10″	840.00mm	100ft
4805-0400-050	4″	101.60mm	4.88″	123.95mm	2	600 PSI	41.37 BAR	N/A	4.70 lb./ft.	6.99 KG/m	44.10″	1120.00mm	50ft
4805-0400-100	4″	101.60mm	4.88″	123.95mm	2	600 PSI	41.37 BAR	N/A	4.70 lb./ft.	6.99 KG/m	44.10″	1120.00mm	100ft
4805-0600-050	6″	152.40mm	6.89″	175.01mm	2	600 PSI	41.37 BAR	N/A	6.82 lb./ft.	10.14 KG/m	63.00″	1600.20mm	50ft
4805-0600-100	6″	152.40mm	6.89″	175.01mm	2	600 PSI	41.37 BAR	N/A	6.82 lb./ft.	10.14 KG/m	63.00″	1600.20mm	100ft

Working pressure is temperature dependent.
Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
