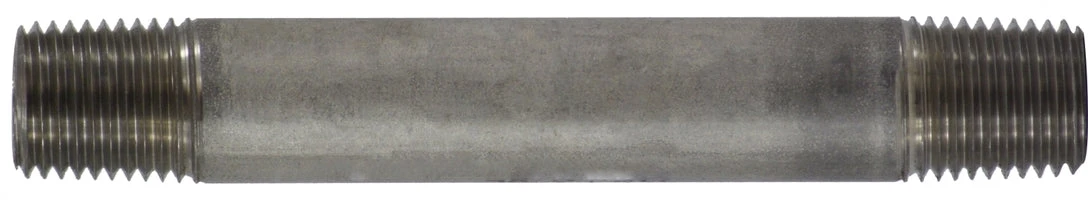

48025 By Midland | Schedule 40 Welded Nipple | 1/4″ Diameter X 3-1/2″ Length | 304 Stainless Steel

Original price was: $12.00.Current price is: $8.40.

SKU: AG9ZZ 8094800314533 Category: Adapters & More Tags: 1/4" Diameter, 304 Stainless Steel, Collection-lvl1_All Hose Ends, Collection-lvl2_Adapters and More, Collection-lvl3_Industrial Adapters, Male Pipe x Male Pipe, Matrixify2nd50kProducts, Midland Industries, Nipples & Fittings, Schedule 40 Welded Nipples

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Features:
The basic alloy. Type 304 (18-8) is an austenitic steel possessing a minimum of 18% chromium and 8% nickel, combined with a maximum of 0.08% carbon. It is a nonmagnetic steel which cannot be hardened by heat treatment, but instead. must be cold worked to obtain higher tensile strengths. In the marine environment, because of it slightly higher strength and wear resistance than type 316 it is also used for nuts, bolts, screws, and other fasteners. It is also used for springs, cogs, and other components where both wear and corrosion resistance is needed.
Specifications:
Both #304 and #316 nipples are NSF/ANSI 372 and NSF/ANSI 61 compliant. Stainless steel pipe nipples are manufactured from stainless steel pipe that conforms to specification ASTM A312/SA312. All stainless steel nipples conform to specification ASTM A733. Threads conform to the requirements of ANSI B1.20.1.

Part Number	Length	Approx. Weight (Lbs.)
48020 (48-020)	Close (7/8″)	0.02
48021 (48-021)	1-1/2″	0.04
48022 (48-022)	2″	0.04
48023 (48-023)	2-1/2″	0.07
48024 (48-024)	3″	0.09
48025 (48-025)	3-1/2″	0.11
48026 (48-026)	4″	0.13
48027 (48-027)	4-1/2″	0.14
48028 (48-028)	5″	0.16
48029 (48-029)	5-1/2″	0.18
48030 (48-030)	6″	0.19
48031 (48-031)	7″	0.22
48032 (48-032)	8″	0.25
48033	9″	0.29
48034 (48-034)	10″	0.35
48035	11″	0.38
48036 (48-036)	12″	0.44
