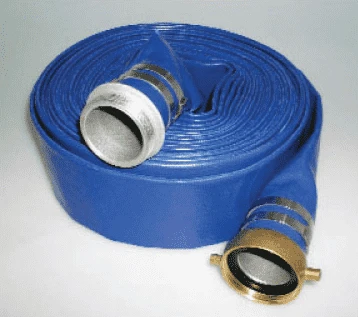

4502-3000-050AB By Jason Industrial | 4502 Series | Water Discharge Hose Assembly | 70 PSI | 3″ ID | 3″ AB Pin Lug (M X F) | Blue | PVC | 50ft

Original price was: $100.60.Current price is: $70.42.

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Other Features:
Application:	For general purpose water discharge in construction, agriculture and drip irrigation.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Blue, PVC
Reinforcement:	Knitted Polyester Yarn	Cover:	Blue, PVC
Temperature Range:	-14 deg F (-26 deg. C) to +150 deg. F (+66 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	Jason logo WP XX (PSI) ID
Light and easy to handle Rolls flat for convenient storage Homogeneous construction eliminates tube and cover separation Maximum bonding is due to the tube and cover being extruded simultaneously

Part Number	I.D.		Wall Thickness		Reinforcement	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	ft
Uncoupled – Bulk
4502-1000	1″	25.40mm	0.056″	1.42mm	Knitted	85 PSI	5.86 BAR	N/A	0.10 lb./ft.	0.15 KG/m	300ft
4502-1500	1-1/2″	38.10mm	0.056″	1.42mm	Knitted	85 PSI	5.86 BAR	N/A	0.21 lb./ft.	0.31 KG/m	300ft
4502-1500-050	1-1/2″	38.10mm	0.056″	1.42mm	Knitted	85 PSI	5.86 BAR	N/A	0.21 lb./ft.	0.31 KG/m	50ft
4502-2000	2″	50.80mm	0.056″	1.42mm	Knitted	85 PSI	5.86 BAR	N/A	0.25 lb./ft.	0.37 KG/m	300ft
4502-2000-050	2″	50.80mm	0.056″	1.42mm	Knitted	85 PSI	5.86 BAR	N/A	0.25 lb./ft.	0.37 KG/m	50ft
4502-2500	2-1/2″	63.50mm	0.060″	1.52mm	Knitted	75 PSI	5.17 BAR	N/A	0.29 lb./ft.	0.43 KG/m	300ft
4502-3000	3″	76.20mm	0.062″	1.57mm	Knitted	70 PSI	4.83 BAR	N/A	0.39 lb./ft.	0.58 KG/m	300ft
4502-3000-050	3″	76.20mm	0.062″	1.57mm	Knitted	70 PSI	4.83 BAR	N/A	0.39 lb./ft.	0.58 KG/m	50ft
4502-4000	4″	101.60mm	0.062″	1.57mm	Knitted	70 PSI	4.83 BAR	N/A	0.60 lb./ft.	0.89 KG/m	300ft
4502-6000	6″	152.40mm	0.077″	1.96mm	Knitted	50 PSI	3.45 BAR	N/A	1.15 lb./ft.	1.71 KG/m	300ft
4502-8000	8″	203.20mm	0.089″	2.26mm	Knitted	45 PSI	3.10 BAR	N/A	1.20 lb./ft.	1.79 KG/m	300ft

Part Number	I.D.		Coupling	Reinforcement	Max. Working Press. @ 68 deg. F		Weight		Standard Length
	in.	mm			PSI	BAR	lb.	KG	ft
Cut – Coupled – Coiled – Tied
4502-1500-050AB	1-1/2″	38.10mm	1-1/2″ AB Pin Lug (M x F)	Knitted	85 PSI	5.86 BAR	9.00 lb./ft.	13.30 KG/m	50ft
4502-2000-050AB	2″	50.80mm	2″ AB Pin Lug (M x F)	Knitted	85 PSI	5.86 BAR	12.00 lb./ft.	17.80 KG/m	50ft
4502-3000-050AB	3″	76.20mm	3″ AB Pin Lug (M x F)	Knitted	70 PSI	4.83 BAR	22.00 lb./ft.	32.60 KG/m	50ft
4502-1500-050CE	1-1/2″	38.10mm	1-1/2″ Aluminum Cam Lock (C x E)	Knitted	85 PSI	5.86 BAR	9.00 lb./ft.	13.30 KG/m	50ft
4502-2000-050CE	2″	50.80mm	2″ Aluminum Cam Lock (C x E)	Knitted	85 PSI	5.86 BAR	12.00 lb./ft.	17.80 KG/m	50ft
4502-3000-050CE	3″	76.20mm	3″ Aluminum Cam Lock (C x E)	Knitted	70 PSI	4.83 BAR	22.00 lb./ft.	32.60 KG/m	50ft

Working pressure is temperature dependent.
Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
