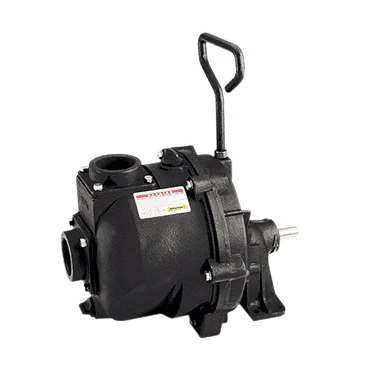

444PBI By Banjo | Centrifugal Pumps | 4″ 444 Series Cast Iron Bearing Pedestal With 1″ Shaft | 5 Vane Impeller

Original price was: $375.00.Current price is: $98.99.

SKU: AG9ZZ 1480700526628 Categories: Pumps, Tools & Equipment Tags: 4" 444 Series Cast Iron Pumps with Gas Engines & Replacement Parts, 4" 444 Series Cast Iron Pumps with Gas Engines Bearing Pedestals Single Pumps, 4" Self-Priming Centrifugal Pumps, All-categories, Banjo Liquid Handling Products, Collection-lvl1_All Equipment, Collection-lvl2_Pumps, Collection-lvl3_Cast Iron Pumps, Industrial Hose Fittings, LegacyProductTypeReplacement_All Categories, Matrixify1st50kProducts, Pumps, Self-Priming Centrifugal Pumps

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Features:
Application:	Fluids, Agriculture, Industrial
Product Manual:	3″ & 4″ Cast Iron Centrifugal Pump Instruction Manual	Video:	N/A
Replacement Parts:	Replacement Parts for 4″ 444 Series Cast Iron Pumps with Gas Engines
Durable cast iron construction Dynamically balanced impeller Replaceable inlet and outlet flanges Graphite loaded silicon carbide seal with stainless steel cup and spring with FKM (viton type) rubber Pump end separated from engine Large weep holes between pump end and engine “V” Shaped for quicker priming
Notes:
CAUTION-WARNING: Please do not run pump dry, restrict or reduce port sizes, or dead head pump. This could cause component failure to pump. DO NOT USE WITH FLAMMABLE LIQUIDS. NOTE: Engine warranty service available at authorized Briggs & Stratton® and Honda® dealers.

Part Number	Description	Horsepower
4″ 444 Series Cast Iron Pumps with Gas Engines
444PIH24	4″ Cast Iron Pump with 24 HP Honda® Engine	24 HP	(Made to Order)
4″ 444 Series Cast Iron Bearing Pedestal
444PBI	4″ Cast Iron Bearing Pedestal with 1″ Shaft	N/A	(Made to Order)
4″ 444 Series Cast Iron Pump Only
444POI	4″ Cast Iron Pump Only with 1-1/8″ x 3-1/2″ Shaft & 6 Vane Impeller Unassembled	N/A	(Made to Order)

Replacement Parts for 444PBI & 433PBI
Item	Part Number	Description	Quantity Required
Not Shown	16099	Impeller Removal Bolt	1
1	18500	Bearing Pedestal	1
2	16703	Rear Bracket (444PBI)	1
2	16704	Rear Bracket (433PBI)	1
3	16713	Mechanical Seal	1
4	16710	O-Ring	1
5	17704	3/8″ – 16 x 1.25″ SS Cap Screw	4
6	V20018	3/8″ SS Lock Washer	17
7	16772	4″ Impeller – 5 Vane (444PBI)	1
7	16773	3″ Impeller (433PBI)	1
8	16901	1/4″ SQ. 3/4″ Key Stock	1
9	16765	Impeller Bolt	1
10	16019	Gasket Set	1
11	16702	Volute	1
13	16712	Body (444PBI)	1
13	16743	Body (433PBI)	1
14	18511	Adapter Plate	1
15	18512	3/8″ – 16 x 0.875″ SS HHCS	4
Not Shown	16751	Bracket Shim Set	1
Not Shown	16752	Impeller Shim	1
Not Shown	18033	Handle	1
Not Shown	18034	5/8″ SS Jam Nut	1
16	16000	4″ Outlet Flange (444PBI)	1
16	16001	3″ Outlet Flange (433PBI)	1
17	16002	Inlet Flange	1
18	16706	Inlet Gasket with Check	1
19	16011	Outlet Gasket	1
20	13777	3/4″ Plug	2
21	18027	3/8″ – 16 x 1.50″ HHCS	8
22	V20018	3/8″ SS Lock Washer	8
23	13778	O-Ring	2
