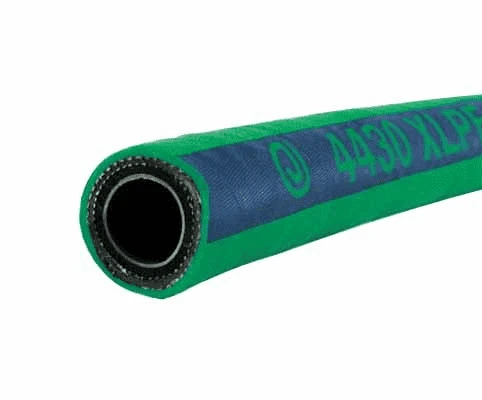

4430-0400-100 By Jason Industrial | 4430 Series | Cross-Linked Suction Hose | 150 PSI | 4" ID | 4.88" OD | Green | Polyethylene | 100ft

4430-0400-100 By Jason Industrial | 4430 Series | Cross-Linked Suction Hose | 150 PSI | 4″ ID | 4.88″ OD | Green | Polyethylene | 100ft

Original price was: $331.00.Current price is: $96.99.

SKU: AG9ZZ 1487424159780 Categories: , Tags: , , , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers

SPECIFICATIONS

Application: For in-plant or tank truck use to transfer chemicals and solvents. SAE Rating: N/A
Other Ratings: N/A Tube: Clear, Smooth Cross-Linked Polyethylene (XLPE)
Reinforcement: Two Plies of Synthetic Fabric with a Wire Helix and a Copper Static Wire Cover: EPDM, Green with Fabric Impression
Temperature Range: -40 deg. F (-40 deg. C) to +150 deg. F (+66 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4430 XLPE ACID CHEMICAL ID WP (PSI) (BAR). Blue mylar longitudinal stripe
Other Features:
  • Versatile, it handles a variety of chemicals
  • Handles 90% of the chemical/acid applications
  • Reduces the need to stock several types of chemical hoses
  • EPDM cover is heat, weather & abrasion resistant
  • All sizes are full vacuum
Part Number I.D. O.D. Reinforcement
Plies		 Max. Working Press.
@ 68 deg. F		 Vacuum
@ 68 deg. F		 Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4430-0075-100 3/4″ 19.05mm 1.19″ 30.23mm 2 200 PSI 13.79 BAR 29.9 inHg 0.36 lb./ft. 0.54 KG/m 6.00″ 152.40mm 100ft
4430-0100-100 1″ 25.40mm 1.50″ 38.10mm 2 200 PSI 13.79 BAR 29.9 inHg 0.46 lb./ft. 0.73 KG/m 6.50″ 165.10mm 100ft
4430-0125-100 1-1/4″ 31.75mm 1.75″ 44.45mm 2 200 PSI 13.79 BAR 29.9 inHg 0.55 lb./ft. 0.82 KG/m 9.00″ 228.60mm 100ft
4430-0150-100 1-1/2″ 38.10mm 2.09″ 53.09mm 2 200 PSI 13.79 BAR 29.9 inHg 0.69 lb./ft. 1.03 KG/m 10.00″ 254.00mm 100ft
4430-0200-100 2″ 50.80mm 2.61″ 66.29mm 2 200 PSI 13.79 BAR 29.9 inHg 0.98 lb./ft. 1.46 KG/m 12.00″ 304.80mm 100ft
4430-0250-100 2-1/2″ 63.50mm 3.19″ 81.03mm 2 150 PSI 10.35 BAR 29.9 inHg 1.35 lb./ft. 2.01 KG/m 15.00″ 381.00mm 100ft
4430-0300-100 3″ 76.20mm 3.75″ 95.25mm 2 150 PSI 10.35 BAR 29.9 inHg 1.90 lb./ft. 2.83 KG/m 16.00″ 406.40mm 100ft
4430-0400-100 4″ 101.60mm 4.88″ 123.95mm 2 150 PSI 10.35 BAR 29.9 inHg 2.57 lb./ft. 3.82 KG/m 18.00″ 457.20mm 100ft

Working pressure is temperature dependent.
Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
