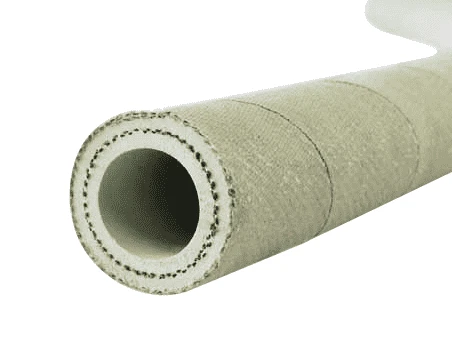

4380-0125-100 By Jason Industrial | 4380 Series | Non-Conductive Furnace Door Hose | 150 PSI | 1-1/4″ ID | 1.75″ OD | 100ft
Original price was: $382.00.$96.99Current price is: $96.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SPECIFICATIONS
| Application: | Conveys cooling water to furnace doors in steel mills, glass plants and similar operations. | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | EPDM, White, Smooth, Non-Conductive |
| Reinforcement: | Two-ply Synthetic Fabric | Cover: | Glass Fiber Ply Impregnated with Heat and Flame-Resistant Synthetic Rubber |
| Temperature Range: | -40 deg F (-40 deg. C) to +266 deg. F (+130 deg. C) Cover to +575 deg. F (+302 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Branding: | N/A |
| Other Features: | |||
| |||
| Part Number | I.D. | O.D. | Reinforcement Plies | Max. Working Press. @ 68 deg. F | Vacuum @ 68 deg. F | Weight | Min. Bend Radius | Standard Length | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm | in. | mm | PSI | BAR | inHg | lb./ft. | KG/m | in. | mm | ft | ||
| Uncoupled | |||||||||||||
| 4380-0050-100 | 1/2″ | 12.70mm | 0.91″ | 23.11mm | 2 | 150 PSI | 10.35 BAR | N/A | 0.20 lb./ft. | 0.30 KG/m | 5.00″ | 127.00mm | 100ft |
| 4380-0075-100 | 3/4″ | 19.05mm | 1.19″ | 30.23mm | 2 | 150 PSI | 10.35 BAR | N/A | 0.30 lb./ft. | 0.45 KG/m | 7.50″ | 190.00mm | 100ft |
| 4380-0100-100 | 1″ | 25.40mm | 1.38″ | 35.05mm | 2 | 150 PSI | 10.35 BAR | N/A | 0.50 lb./ft. | 0.74 KG/m | 10.00″ | 254.00mm | 100ft |
| 4380-0125-100 | 1-1/4″ | 31.75mm | 1.75″ | 44.45mm | 2 | 150 PSI | 10.35 BAR | N/A | 0.90 lb./ft. | 1.34 KG/m | 12.60″ | 320.00mm | 100ft |
| 4380-0150-100 | 1-1/2″ | 38.10mm | 2.00″ | 50.80mm | 2 | 150 PSI | 10.35 BAR | N/A | 1.00 lb./ft. | 1.49 KG/m | 15.00″ | 380.00mm | 100ft |
| 4380-0200-100 | 2″ | 50.80mm | 2.53″ | 64.26mm | 2 | 150 PSI | 10.35 BAR | N/A | 1.10 lb./ft. | 1.64 KG/m | 20.00″ | 508.00mm | 100ft |
Working pressure is temperature dependent.
Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
