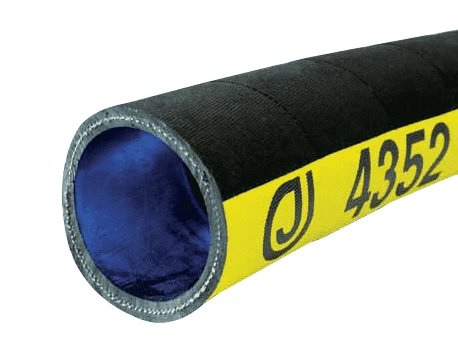

4352-0600-100 By Jason Industrial | 4352 Series | Rubber 2-Ply Water Discharge Hose | 150 PSI | 6″ ID | 6.50″ OD | Black | SBR | 100ft

Original price was: $368.00.Current price is: $95.99.

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Other Features:
Application:	For general construction, mines and water discharge and equipment rental.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	SBR, Black
Reinforcement:	Two-ply Synthetic Fabric	Cover:	SBR, Black
Temperature Range:	-25 deg F (-32 deg. C) to +185 deg. F (+85 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	Jason logo 4352 I.D. WATER DISCHARGE WP PSI BAR. Yellow mylar longitudinal stripe
Cover compound makes it resistant to weather and ozone Lays flat and rolls up for easy storage Ideal for standard working pressure

Part Number	I.D.		O.D.		Reinforcement Plies	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
Uncoupled
4352-0150-100	1-1/2″	38.10mm	1.81″	45.97mm	2	150 PSI	10.35 BAR	N/A	0.60 lb./ft.	0.89 KG/m	15.00″	380.00mm	100ft
4352-0200-100	2″	50.80mm	2.31″	58.67mm	2	150 PSI	10.35 BAR	N/A	0.84 lb./ft.	1.25 KG/m	20.00″	508.00mm	100ft
4352-0250-100	2-1/2″	36.50mm	2.75″	69.85mm	2	150 PSI	10.35 BAR	N/A	0.91 lb./ft.	1.35 KG/m	25.00″	635.00mm	100ft
4352-0300-100	3″	76.20mm	3.38″	85.85mm	2	150 PSI	10.35 BAR	N/A	1.12 lb./ft.	1.67 KG/m	30.00″	762.00mm	100ft
4352-0400-100	4″	101.60mm	4.37″	111.00mm	2	150 PSI	10.35 BAR	N/A	1.25 lb./ft.	1.86 KG/m	40.00″	1016.00mm	100ft
4352-0500-100	5″	127.00mm	5.51″	139.95mm	2	150 PSI	10.35 BAR	N/A	2.29 lb./ft.	3.41 KG/m	50.00″	1270.00mm	100ft
4352-0600-050	6″	152.40mm	6.50″	165.10mm	2	150 PSI	10.35 BAR	N/A	3.45 lb./ft.	5.13 KG/m	60.00″	1524.00mm	50ft
4352-0600-100	6″	152.40mm	6.50″	165.10mm	2	150 PSI	10.35 BAR	N/A	3.45 lb./ft.	5.13 KG/m	60.00″	1524.00mm	100ft
4352-0800-050	8″	203.20mm	8.50″	215.90mm	2	100 PSI	6.89 BAR	N/A	4.30 lb./ft.	6.40 KG/m	80.00″	2030.00mm	50ft
4352-0800-100	8″	203.20mm	8.50″	215.90mm	2	100 PSI	6.89 BAR	N/A	4.30 lb./ft.	6.40 KG/m	80.00″	2030.00mm	100ft
4352-1000-050	10″	254.00mm	10.50″	266.70mm	2	100 PSI	6.89 BAR	N/A	5.40 lb./ft.	8.04 KG/m	100.00″	2450.00mm	50ft
4352-1200-050	12″	304.80mm	12.50″	317.50mm	2	100 PSI	6.89 BAR	N/A	6.75 lb./ft.	10.04 KG/m	120.00″	3058.00mm	50ft

Working pressure is temperature dependent.
Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
