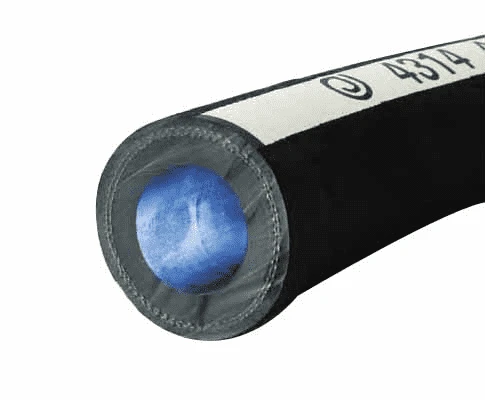

4314-0125-200 By Jason Industrial | 4314 Series | 4-Ply Sandblast Hose | 150 PSI | 1-1/4" ID | 2.16" OD | Black | NR/BR | 200ft

4314-0125-200 By Jason Industrial | 4314 Series | 4-Ply Sandblast Hose | 150 PSI | 1-1/4″ ID | 2.16″ OD | Black | NR/BR | 200ft

Original price was: $396.00.Current price is: $96.99.

SKU: AG9ZZ 1487437594660 Categories: , Tags: , , , , , , , , , , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers

SPECIFICATIONS

Application: For sandblasting/cleaning operations in construction, shipyards, steel mills and refineries SAE Rating: N/A
Other Ratings: N/A Tube: SBR/NR Blend, 1/4″ Thick, Black, Static Dissipating
Reinforcement: Four-ply Synthetic Fabric Cover: SBR/NR Blend, Black
Temperature Range: -25 deg. F (-32 deg. C) to +185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4314 4-PLY SANDBLAST WP 150 PSI 10.35 BAR. White mylar longitudinal stripe
Other Features:
  • Tube compounds are static-dissipating
  • Highly abrasion resistant tube that will handle any blast grit
  • Cover is abrasion and weather resistant
  • Highly abrasion resistant tube handles manufactured coal slag, aluminum oxide or grit
  • Each O.D. is held to strict tolerances (ARPM) for ideal coupling compatibility
Part Number I.D. O.D. Reinforcement
Plies		 Max. Working Press.
@ 68 deg. F		 Vacuum
@ 68 deg. F		 Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4314-0075-050 3/4″ 19.05mm 1.50″ 38.10mm 4 150 PSI 10.35 BAR N/A 0.66 lb./ft. 0.98 KG/m 7.50″ 190.00mm 50ft
4314-0075-100 3/4″ 19.05mm 1.50″ 38.10mm 4 150 PSI 10.35 BAR N/A 0.66 lb./ft. 0.98 KG/m 7.50″ 190.00mm 100ft
4314-0075-200 3/4″ 19.05mm 1.50″ 38.10mm 4 150 PSI 10.35 BAR N/A 0.66 lb./ft. 0.98 KG/m 7.50″ 190.00mm 200ft
4314-0100-050 1″ 25.40mm 1.88″ 47.63mm 4 150 PSI 10.35 BAR N/A 0.80 lb./ft. 1.19 KG/m 10.00″ 254.00mm 50ft
4314-0100-100 1″ 25.40mm 1.88″ 47.63mm 4 150 PSI 10.35 BAR N/A 0.80 lb./ft. 1.19 KG/m 10.00″ 254.00mm 100ft
4314-0100-200 1″ 25.40mm 1.88″ 47.63mm 4 150 PSI 10.35 BAR N/A 0.80 lb./ft. 1.19 KG/m 10.00″ 254.00mm 200ft
4314-0125-050 1-1/4″ 31.75mm 2.16″ 53.18mm 4 150 PSI 10.35 BAR N/A 1.04 lb./ft. 1.55 KG/m 12.60″ 320.00mm 50ft
4314-0125-100 1-1/4″ 31.75mm 2.16″ 53.18mm 4 150 PSI 10.35 BAR N/A 1.04 lb./ft. 1.55 KG/m 12.60″ 320.00mm 100ft
4314-0125-200 1-1/4″ 31.75mm 2.16″ 53.18mm 4 150 PSI 10.35 BAR N/A 1.04 lb./ft. 1.55 KG/m 12.60″ 320.00mm 200ft
4314-0150-050 1-1/2″ 38.10mm 2.38″ 60.33mm 4 150 PSI 10.35 BAR N/A 1.25 lb./ft. 1.86 KG/m 15.00″ 380.00mm 50ft
4314-0150-100 1-1/2″ 38.10mm 2.38″ 60.33mm 4 150 PSI 10.35 BAR N/A 1.25 lb./ft. 1.86 KG/m 15.00″ 380.00mm 100ft
4314-0150-200 1-1/2″ 38.10mm 2.38″ 60.33mm 4 150 PSI 10.35 BAR N/A 1.25 lb./ft. 1.86 KG/m 15.00″ 380.00mm 200ft
4314-0200-050 2″ 50.80mm 2.88″ 73.03mm 4 150 PSI 10.35 BAR N/A 1.45 lb./ft. 2.16 KG/m 20.00″ 508.00mm 100ft
4314-0200-100 2″ 50.80mm 2.88″ 73.03mm 4 150 PSI 10.35 BAR N/A 1.45 lb./ft. 2.16 KG/m 20.00″ 508.00mm 100ft

Working pressure is temperature dependent.
Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
