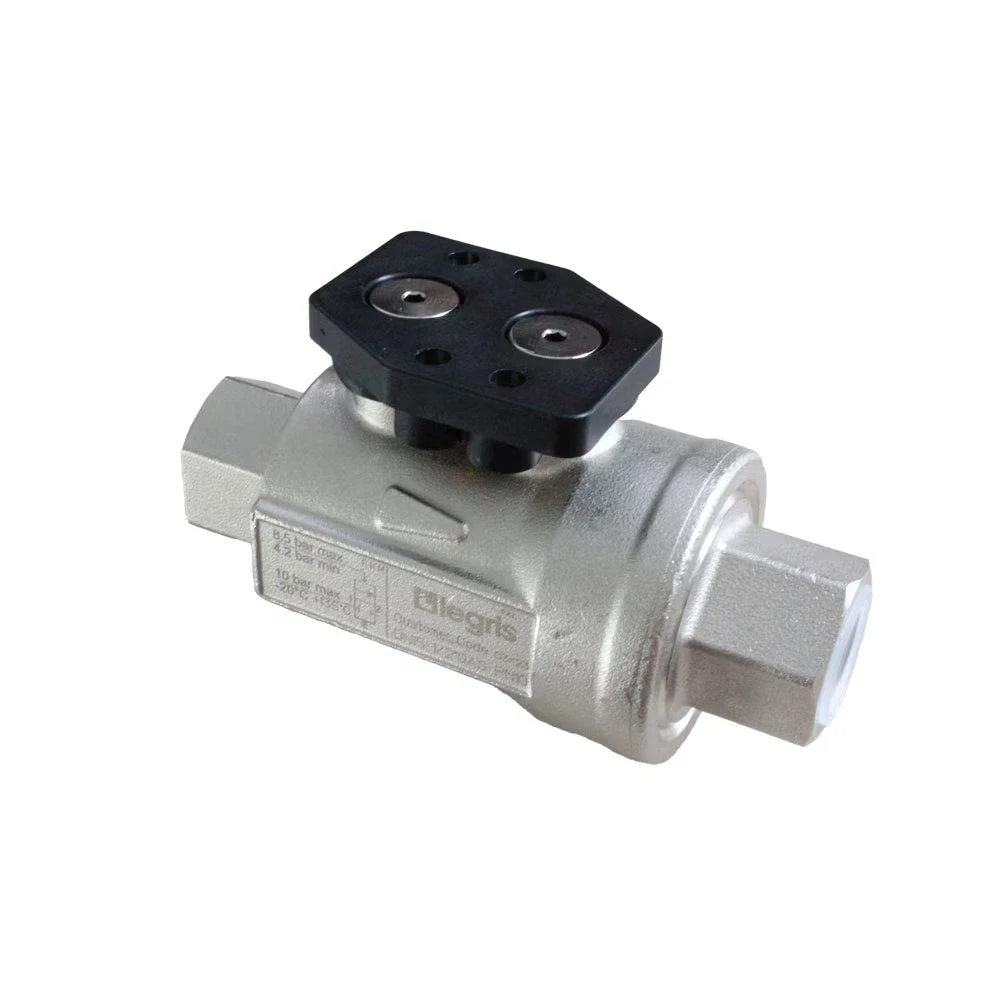

4202 15 21 20 By Parker | Axial Valve | G1/2″ Female BSPP Thread W/ FKM Seal | 113 Mm Length | Straight | Nickel-Plated Brass

Original price was: $303.34.Current price is: $95.99.

SKU: AG9ZZ 14646522478962 Categories: Adapters & More, Valves Tags: Created in 2024, Matrixify3rd50kProducts

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

This valve is equipped with a pneumatic or electro-pneumatic actuator, so it can be integrated into simple automated systems.
Product Features:	Very compact Simple to install: ready-to-use Two seal materials (FKM, EPDM) for a wider chemical and temperature range Pneumatic or electro-pneumatic Three versions: normally closed, normally open and double-acting
Applications:	Injection Molding Pneumatics Packaging Textile Printing Robotics
Compatible Fluids:	Compressed air, water, industrial fluids Other fluids: please contact division.
Temperature Range:	-4° to +275°F (-20° to +150°C) (suffix 20 FKM) -4° to +275°F (-20° to +150°C) ((suffix 30 EPDM optional; please contact division)
Pressure Range:	Up to 150 PSI (10.3 bar)
Vacuum Service:	29 in Hg
Pilot Pressure:	NC and NO: 61 to 116 PSI (4.2 to 8 bar) Double-acting: 62 to 116 PSI (4.3 to 8 bar)


Part Number	BSSP (C)	F	G	H	H1	L	Kg.
4202 10 17 20	G1/8″	22 mm	46 mm	53.5 mm	30.5 mm	98 mm	.65 Kg
4202 15 21 20	G1/2″	27 mm	52 mm	59.0 mm	33.0 mm	113 mm	.85 Kg
4202 20 27 20	G3/4″	33 mm	63.5 mm	71.0 mm	39.0 mm	136 mm	1.50 Kg
4202 25 34 20	G1″	41 mm	69 mm	76.0 mm	41.5 mm	144 mm	1.70 Kg
4202 32 42 20*	G1-1/4″	50 mm	86 mm	91.0 mm	48.0 mm	166 mm	3.30 Kg
4202 40 49 20*	G1-1/2″	60 mm	96 mm	102.0 mm	54.0 mm	181 mm	3.60 Kg
4202 50 48 20*	G2″	70 mm	109 mm	115.0 mm	60.0 mm	205 mm	5.10 Kg
