SPECIFICATIONS
| Application: | For jackhammer applications. | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | SBR/NBR blend |
| Reinforcement: | Two-Spiral, Polyester Yarn | Cover: | EPDM |
| Temperature Range: | -22 deg. F (-30 deg. C) to +176 deg. F (+80 deg. C) | Crimp Fittings: | Crimped coupling with universal end |
| Reusable Fittings: | N/A | Branding: | ID 4121 or 4122 300 PSI WP Production Date |
| Other Features: | |||
| |||
| Part Number | Color | I.D. | O.D. | Reinforcement Spirals | Max. Working Press. @ 68 deg. F** | Vacuum @ 68 deg. F | Weight | Min. Bend Radius | Standard Length | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm | in. | mm | PSI | BAR | lb./ft. | KG/m | in. | mm | ft | ||||
| Coupled | ||||||||||||||
| 4121-0075-050 | Yellow | 3/4″ | 19.05mm | 1.16″ | 29.50mm | 2 | 150 PSI | 10.35 BAR | N/A | 0.54 lb./ft. | 0.80 KG/m | 5.00″ | 127.00mm | 50ft |

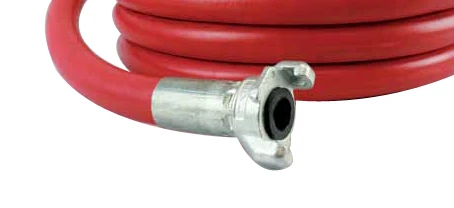

| 4122-0075-050 | Red | 3/4″ | 19.05mm | 1.16″ | 29.50mm | 2 | 150 PSI | 10.35 BAR | N/A | 0.54 lb./ft. | 0.80 KG/m | 5.00″ | 127.00mm | 50ft |
**Assembly working pressure. Hose WP is 300 PSI
Safety clip and lanyard not supplied. For safety reasons, please follow all OSHA regulations.
Working pressure is temperature dependent.
Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
