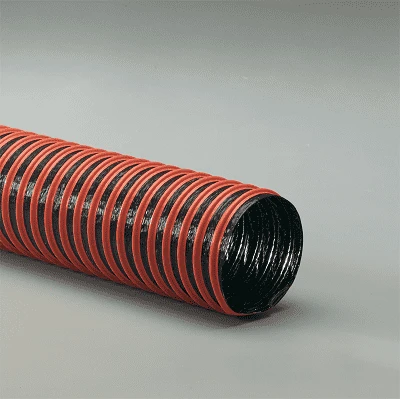

4-FSP-1-25 By Flexaust | #2460400025 | FSP-1 Series | Air And Fume Duct Hose | 4 Inch | 25ft
Original price was: $164.33.$99.99Current price is: $99.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SPECIFICATIONS
| Applications: | Cab Ventilation, Chemical and Welding Fume Extraction, Flame Retardant, HEPA, Landfill Venting, Oil Mist Extraction, Ozone, Paint Spray Extraction, Ultra Violet Dryers | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Single-ply black PVC vinyl coated polyester fabric |
| Reinforcement: | Spring steel wire helix & orange external PVC wearstrip | Cover: | N/A |
| Temperature Range: | -20 deg. F to 180 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
| |||
| Part Number 25 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight – 25ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|
| FSP-1 3in | 3″ | N/A | 3.5″ | 2.5:1 | 29 | 26 | 12.5 lbs |
| FSP-1 4in | 4″ | N/A | 4″ | 2.5:1 | 24 | 13 | 16.25 lbs |
| FSP-1 5in | 5″ | N/A | 4.5″ | 2.5:1 | 17 | 11 | 18.75 lbs |
| FSP-1 6in | 6″ | N/A | 5″ | 4:1 | 16 | 6 | 21.25 lbs |
| FSP-1 7in | 7″ | N/A | 6″ | 4:1 | 12 | 5 | 27.5 lbs |
| FSP-1 8in | 8″ | N/A | 7″ | 4:1 | 9 | 4 | 31.25 lbs |
| FSP-1 10in | 10″ | N/A | 8.6″ | 4:1 | 4 | 3 | 39.25 lbs |
| FSP-1 12in | 12″ | N/A | 10.3″ | 4:1 | 3 | 2.5 | 47 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
